MUSWAY M5 EVO 512K 5CH DSP Amplifier
DSP Amplifier
MUSWAY M5 EVO 512K 5-Channel DSP Amplifier combines five Class D powered channels with a flexible 9-channel DSP in a compact 150 x 45 x 105 mm housing. It powers four full-range speaker channels plus a dedicated subwoofer channel, while four configurable...
- Optical digital input and four configurable RCA pre-amplifier outputs
- Optional: Optional MUSWAY Bluetooth modules and digital remote controllers
- Tuning via MUSWAY TUNEST PC software or compatible smartphone app
- Crossover, equalisation, time alignment, phase and signal-routing control
- Optional: Optional BTS, BTS-HD or BTA-HD Bluetooth module and DRC1 or myCON controller
- 1 optical stereo PCM input
Overview & features

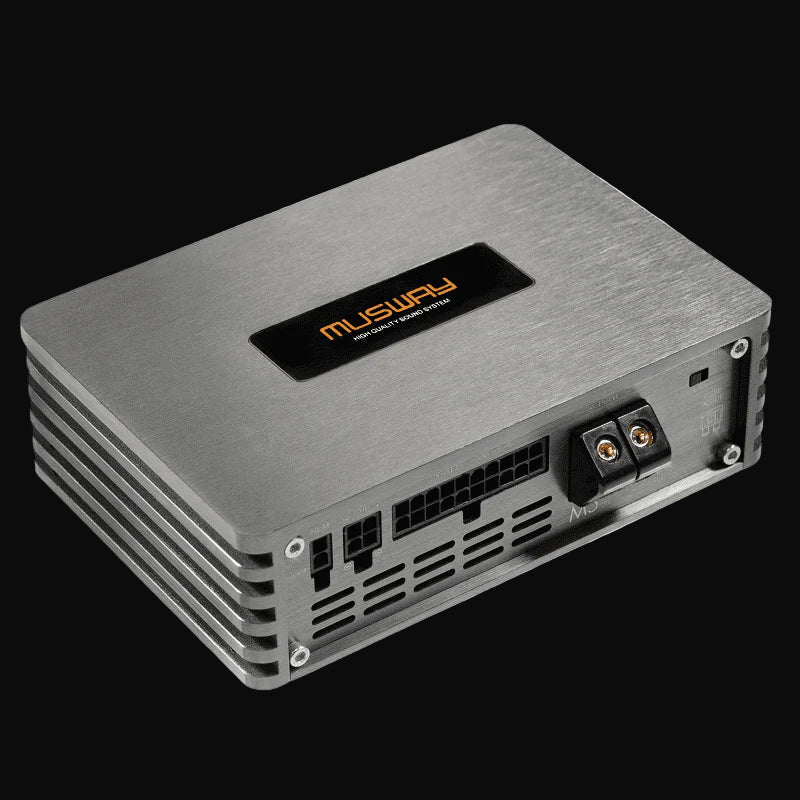

MUSWAY M5 EVO 512K 5-Channel DSP Amplifier combines five Class D powered channels with a flexible 9-channel DSP in a compact 150 x 45 x 105 mm housing. It powers four full-range speaker channels plus a dedicated subwoofer channel, while four configurable RCA outputs support future system expansion.
Power output is 4 x 45 W RMS at 4 ohms or 4 x 50 W RMS at 3 ohms, plus 1 x 180 W RMS at 4 ohms or 1 x 300 W RMS at 2 ohms. High-level inputs with EPS, automatic turn-on, start-stop compatibility and an optical digital input help it integrate cleanly with modern factory audio systems.
The 512K DSP platform uses an Analog Devices ADAU1452 processor with Burr-Brown PCM3168A converters. MUSWAY TUNEST software provides crossover, equalisation, time alignment, phase and routing control. Optional MUSWAY Bluetooth modules and digital controllers add wireless streaming, app control or remote DSP adjustment.
This EVO version is supplied with a 20 cm cable harness with open ends. It is the right choice for a custom-wired installation or when a separate vehicle-specific harness will be used; it does not include the regular M5's 2.5 m ISO harness.
Key Features
- 5-channel Class D amplifier with 9-channel DSP
- 500 W RMS total rated output
- Analog Devices ADAU1452 DSP with Burr-Brown PCM3168A converters
- High-level inputs with EPS, automatic turn-on and start-stop compatibility
- Optical digital input and four configurable RCA pre-amplifier outputs
- Optional MUSWAY Bluetooth modules and digital remote controllers
- 20 cm open-ended cable harness included
Power Ratings
- 4 x 45 W RMS at 4 ohms
- 4 x 50 W RMS at 3 ohms
- 1 x 180 W RMS at 4 ohms
- 1 x 300 W RMS at 2 ohms
DSP & Tuning
- 9 DSP channels with four externally usable, configurable RCA outputs
- 512K DSP platform with Analog Devices ADAU1452 processor
- Burr-Brown PCM3168A analogue-to-digital and digital-to-analogue converters
- Tuning via MUSWAY TUNEST PC software or compatible smartphone app
- Crossover, equalisation, time alignment, phase and signal-routing control
- Optional BTS, BTS-HD or BTA-HD Bluetooth module and DRC1 or myCON controller

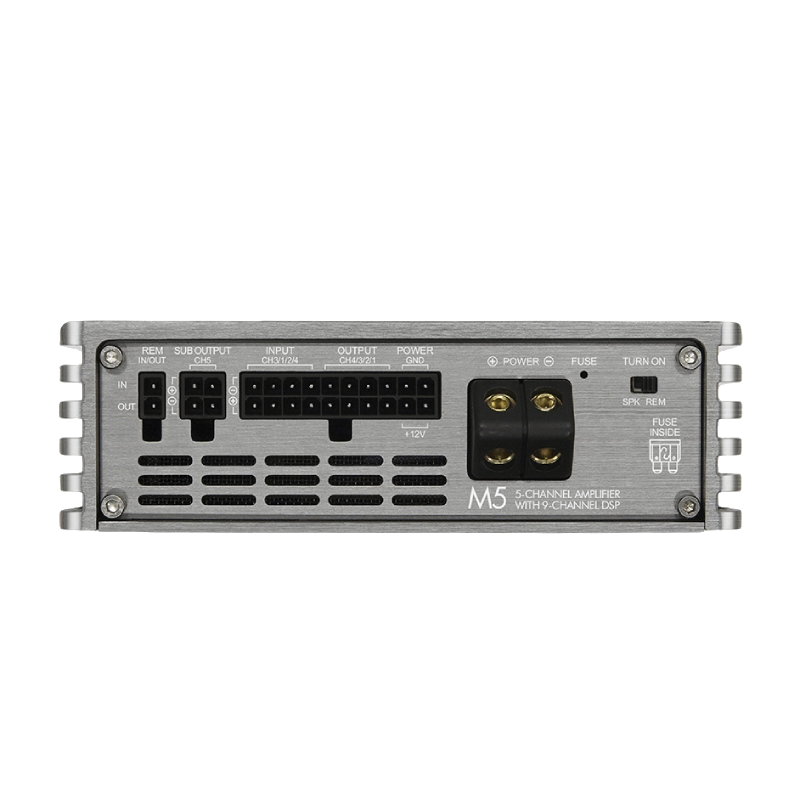

Inputs & Outputs
- 4 high-level inputs with EPS
- 2 AUX RCA inputs
- 1 optical stereo PCM input
- 4 amplified loudspeaker outputs and 1 amplified subwoofer output
- 4 configurable RCA pre-amplifier outputs
- Quick Connect terminal for compatible MUSWAY subwoofer systems
Dimensions & Installation
- Dimensions: 150 x 45 x 105 mm
- Frequency response: 10 Hz to 20 kHz (-3 dB)
- Signal-to-noise ratio: 95 dB
- Start-stop ready with automatic turn-on
- 20 cm open-ended cable harness included
Additional specifications
- Signal-to-noise ratio
- >95 dB A-weighted
- Weight
- 1.0 kg
- Bit depth
- 64-bit
- Bluetooth
- Optional via external Bluetooth USB dongle; wireless audio streaming
- Sample rate
- 96 kHz optical PCM input (up to 96 kHz / 24-bit)
