Current version
This product replaces an earlier version.This is the current replacement for MUSWAY M6v3 M6 Digital 6CH DSP-AMP.
Musway

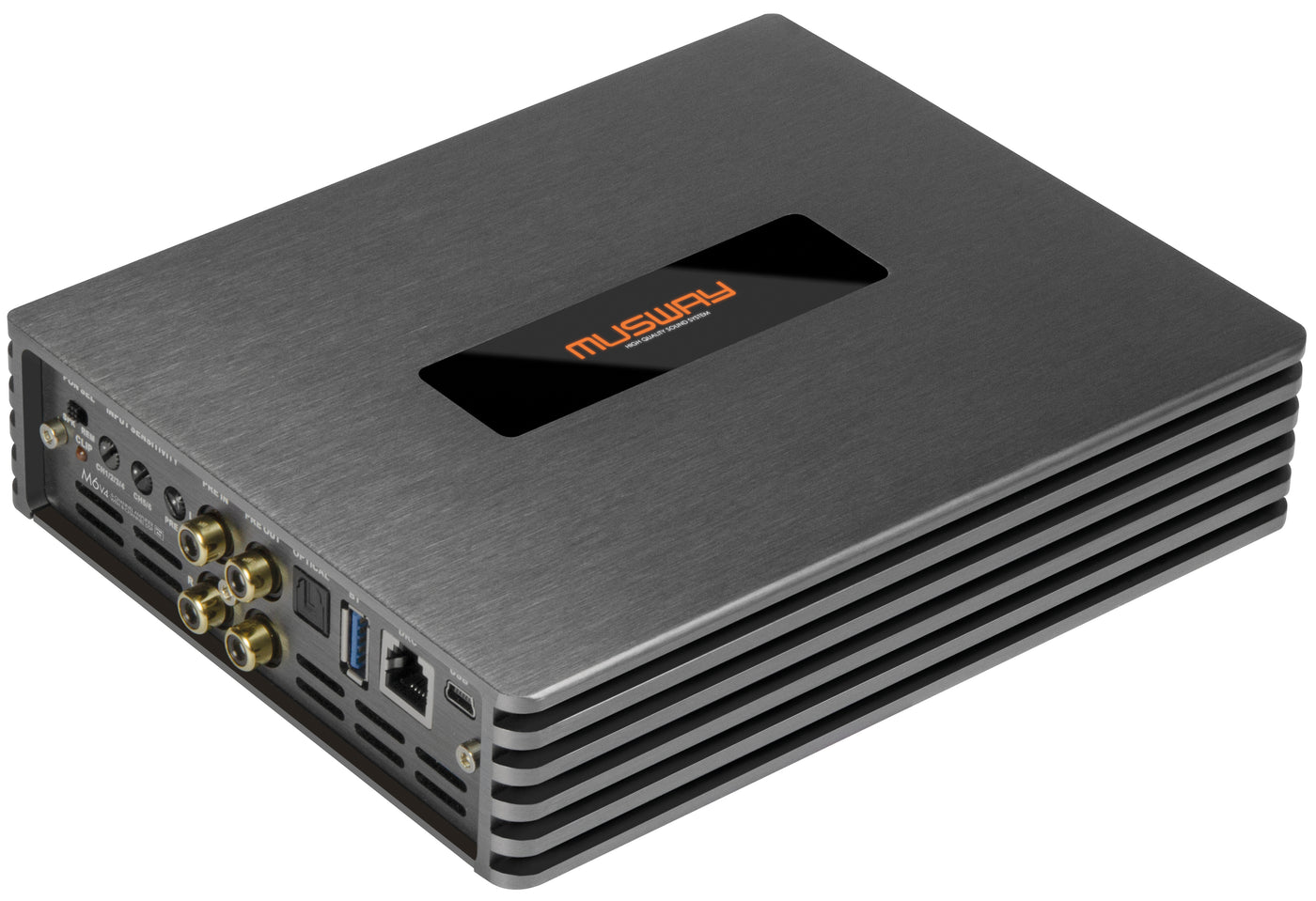

MUSWAY M6v4-512K 6CH DSP Amplifier
DSP Amplifier
The MUSWAY M6v4-512K 6CH DSP Amplifier is a MUSWAY dsp amplifier for active car audio upgrades where tuning control and compact installation matter. It is suited to builds needing dsp, 512k, class d. Use the feature and technical specification sections below to...
- Start-Stop ready, Auto Turn-On (Sensitivity adjustable in software)
- 512k Bit DSP technology, controllable via PC software or Smartphone App
- Digital remote control DRC1 and myCON for controlling various DSP functions (optional)
- Digital Remote Controller with Display to control the DSP Functions
- Optional: Bluetooth® Dongle for
- HD Audio Streaming & App Control
- Optional: External Bluetooth® USB-Dongles BTS , BTS-HD & BTA-HD for Audio Streaming & App Control (optional)
- 1 x Optical Input/Stereo PCM
- Start-Stop ready, Auto Turn-On (Sensitivity adjustable in software)
Overview & features
The MUSWAY M6v4-512K 6CH DSP Amplifier is a MUSWAY dsp amplifier for active car audio upgrades where tuning control and compact installation matter. It is suited to builds needing dsp, 512k, class d.
Use the feature and technical specification sections below to compare channels, RMS output, impedance support, tuning options and installation details before ordering. Key installation details and specifications are listed below.
Key Features
- 6-CHANNEL CLASS D AMPLIFIER WITH 8-CHANNEL DSP
- Burr-Brown ADC digital converters (PCM3168A) and Analog Devices DSP (ADAU1466)
- Separately controllable input sensitivity (Channel 1-4, Channel 5-6), Clipping LEDs
- Plug+Play with vehicle-specific cable sets
- Quick Connect Terminal to connect MUSWAY Subwoofer Systems
Power Ratings
- 6 x 80/130 Watts RMS @ 4/2 Ohms or
- 3 x 260 Watts RMS @ 4 Ohms bridged
DSP & Tuning
- 6-CHANNEL CLASS D AMPLIFIER WITH 8-CHANNEL DSP
- Burr-Brown ADC digital converters (PCM3168A) and Analog Devices DSP (ADAU1466)
- Start-Stop ready, Auto Turn-On (Sensitivity adjustable in software)
- 512k Bit DSP technology, controllable via PC software or Smartphone App
- Digital remote control DRC1 and myCON for controlling various DSP functions (optional)
- AMOLED Touchscreen Controller to control the DSP Functions
- Only Compatible with 512K-DSP models
- Digital Remote Controller with Display to control the DSP Functions
- Compatible with all DSP models
- Bluetooth® Dongle for
- HD Audio Streaming & App Control
Inputs & Outputs
- High Level Input with EPS ® (Error Protection System)
- External Bluetooth® USB-Dongles BTS , BTS-HD & BTA-HD for Audio Streaming & App Control (optional)
- 6 x High Level Input with EPS ®
- 6 x Low Level Input* RCA
- 1 x Optical Input/Stereo PCM
- 6 x Loudspeaker Output amplified
- 2 x Pre-Amplifier Output RCA (configurable via DSP)
Dimensions & Installation
- Start-Stop ready, Auto Turn-On (Sensitivity adjustable in software)
- Dimensions: 150 x 44 x 200 mm
Additional specifications
- Signal-to-noise ratio
- 94 dB A-weighted
- Dimensions
- 200 x 44 x 150 mm
- Weight
- 1.6 kg
- Bit depth
- 64-bit
- Bluetooth
- Optional via external Bluetooth USB dongle; wireless audio streaming
- Sample rate
- 96 kHz optical PCM input (up to 96 kHz / 24-bit)
