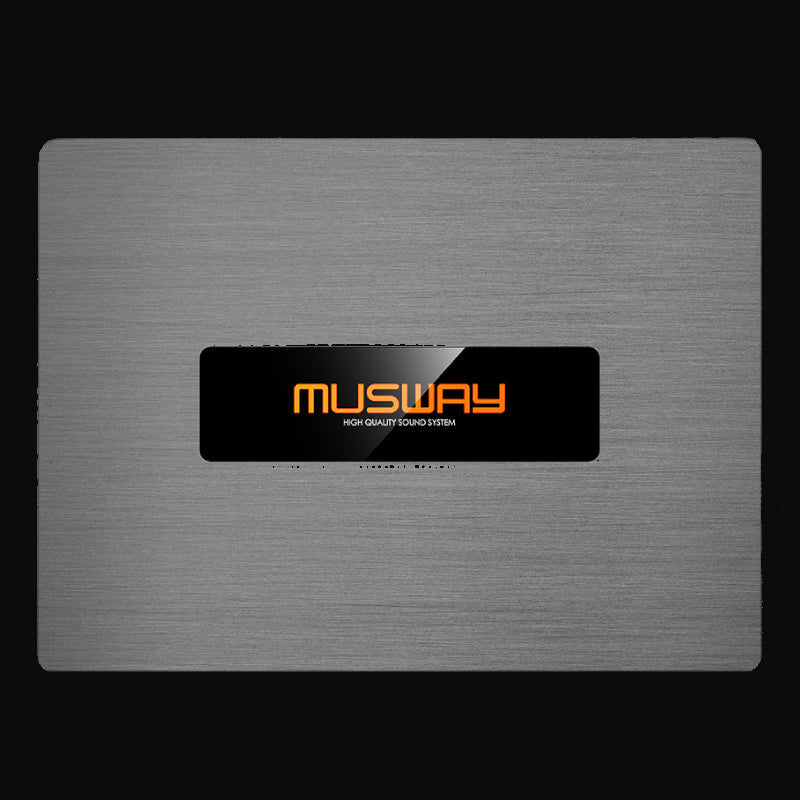

MUSWAY M6v4 EVO 512K 6CH DSP Amplifier

DSP Amplifier

£539.99
Available to order

The MUSWAY M6V4 EVO 512K is a compact six-channel Class D amplifier with integrated eight-channel 512K DSP processing.Package contents: Amplifier only: the 2 m ISO plug-and-play connection loom is not included.The M6v4-512K and M6v4 EVO 512K use the same amplifier platform; the...

At a glance SKU M6V4 EVO 512K
Amplifier channels6 Channel
DSP channels8 DSP channels
Impedance2 Ohm, 4 Ohm
Dimensions200 x 44 x 150 mm
Technical overview DSP platform and product features
Signal-to-noise ratio94 dB A-weighted
DSP channels8 DSP channels
Sample rate96 kHz optical PCM input
DSP precision64-bit DSP; 24-bit optical PCM input
System roleIntegrated amplifier stage
Overview & features

The MUSWAY M6V4 EVO 512K is a compact six-channel Class D amplifier with integrated eight-channel 512K DSP processing.

Package contents: Amplifier only: the 2 m ISO plug-and-play connection loom is not included.

The M6v4-512K and M6v4 EVO 512K use the same amplifier platform; the package loom is the purchasing difference between these two listings.

Download the owner manual

Technical overview
Frequency response
10 Hz-20 kHz (-3 dB)
Signal-to-noise ratio
94 dB A-weighted
Total harmonic distortion
0.014% THD (1 kHz @ 4 Ω, 5 W)
DSP channels
8 DSP channels
Sample rate
96 kHz optical PCM input
Bit depth
64-bit DSP; 24-bit optical PCM input
Installation
Dimensions
200 x 44 x 150 mm
Weight
1.6 kg
Additional specifications
DSP chip / platform
64-bit DSP, 295 MHz clock speed
Power / voltage
7.5-16.7 VDC
Inputs / outputs
High-level and AUX low-level inputs; CH7/CH8 RCA outputs; optical input; USB PC software input; optional external remote
Bluetooth
Optional external Bluetooth dongle via USB input; MUSWAY DSP software and optional remote controller
Downloads
MUSWAY M6V4 EVO 512K user manual MUSWAY M6V4 EVO 512K manual MUSWAY M6V4 EVO 512K manual MUSWAY M6V4 EVO 512K software
