Musway
Musway MG10 10" Dual 2-Ohm Subwoofer Driver with Grille
Subwoofer Driver
£299.00
Available to order
Subwoofer Driver
SKU MG10
Manual included
Tech specs
Shown below
Manuals/downloads
Download linked
Warranty
Manufacturer backed
Match enclosure and amplifier power
Use the product details and message us if you want help pairing this with the right amp or box.
Why choose this product?

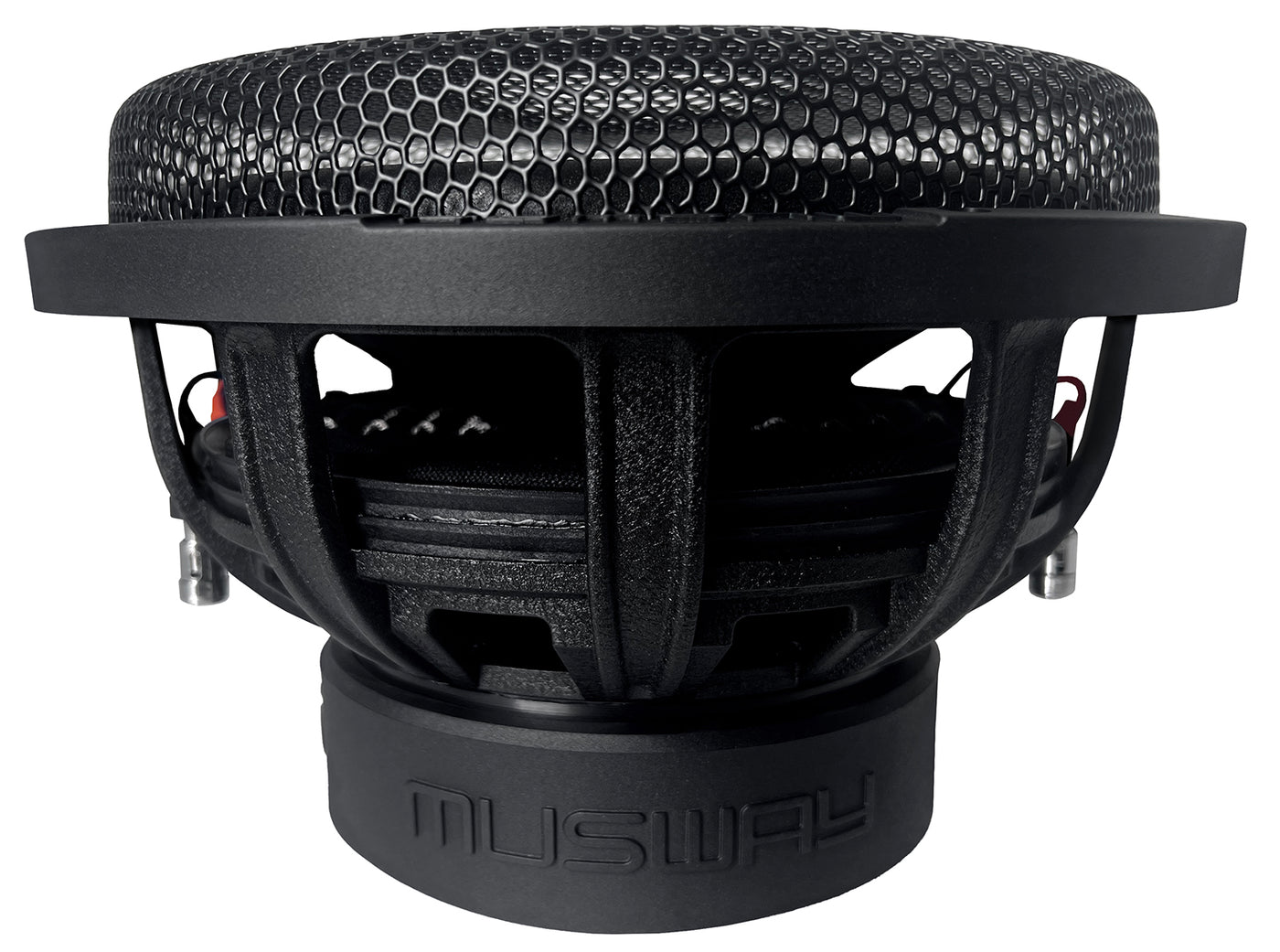

The Musway MG10 is a 25 cm / 10 inch subwoofer driver supplied with a pre-assembled protection grille. It uses a sturdy aluminium cast basket, dual 2-ohm impedance and a 62 mm voice coil.
Product highlights
- 500 Watts RMS, 1000 Watts max.
- Impedance: 2 + 2 Ohms
- 62 mm (2.4") voice coil
- Sturdy aluminium cast basket
- Pre-assembled protection grille
- 2 x 1.4 kg (50 oz.) magnet
- Xmax +/- 20 mm
Technical specifications
- Fs: 32 Hz
- Qts: 0.49
- VAS: 31.5 L
- SPL: 88 dB/2.38V/1m
- Installation depth: 162 mm
- Installation diameter: 240 mm
Key features
• 500 Watts RMS, 1000 Watts max.
• 62 mm (2.4") Voice Coil
• Pre-assembled Protection Grille
• Fs 32 Hz • Qts 0,49 • VAS 31,5 L
• SPL 88 dB/2,38V/1m • Xmax +/- 20 mm
• Installation Depth 162 mm
• Installation Diameter 240 mm
• 30 CM (12“) SUBWOOFER INCL. PROTECTION GRILLE
• 62 mm (2.4") Voice Coil
• Pre-assembled Protection Grille
• Fs 32 Hz • Qts 0,49 • VAS 31,5 L
• SPL 88 dB/2,38V/1m • Xmax +/- 20 mm
• Installation Depth 162 mm
• Installation Diameter 240 mm
• 30 CM (12“) SUBWOOFER INCL. PROTECTION GRILLE
Technical details
Specifications
• 500 Watts RMS, 1000 Watts max.
• Impedance 2 + 2 Ohms
• 62 mm (2.4") Voice Coil
• Sturdy Aluminum Cast Basket
• Pre-assembled Protection Grille
• 2 x 1,4 kg (50 oz.) Magnet
• Fs 32 Hz • Qts 0,49 • VAS 31,5 L
• SPL 88 dB/2,38V/1m • Xmax +/- 20 mm
• Installation Depth 162 mm
• Installation Diameter 240 mm
Downloads
• https://musway.de/english/assets/mg8_mg10_mg12.pdf
• https://musway.de/english/assets/mg10_ds.pdf
• https://musway.de/english/assets/mg8_mg10_mg12_ch.pdf
Downloads and support
Check enclosure type, amplifier matching, available space and dimensions before ordering. Message us if you want help matching the product to the right amplifier or installation position.
We reply by email or WhatsApp so you have the recommendation in writing.
Downloads
Download owner manual
Manufacturer documentation supplied where available.
