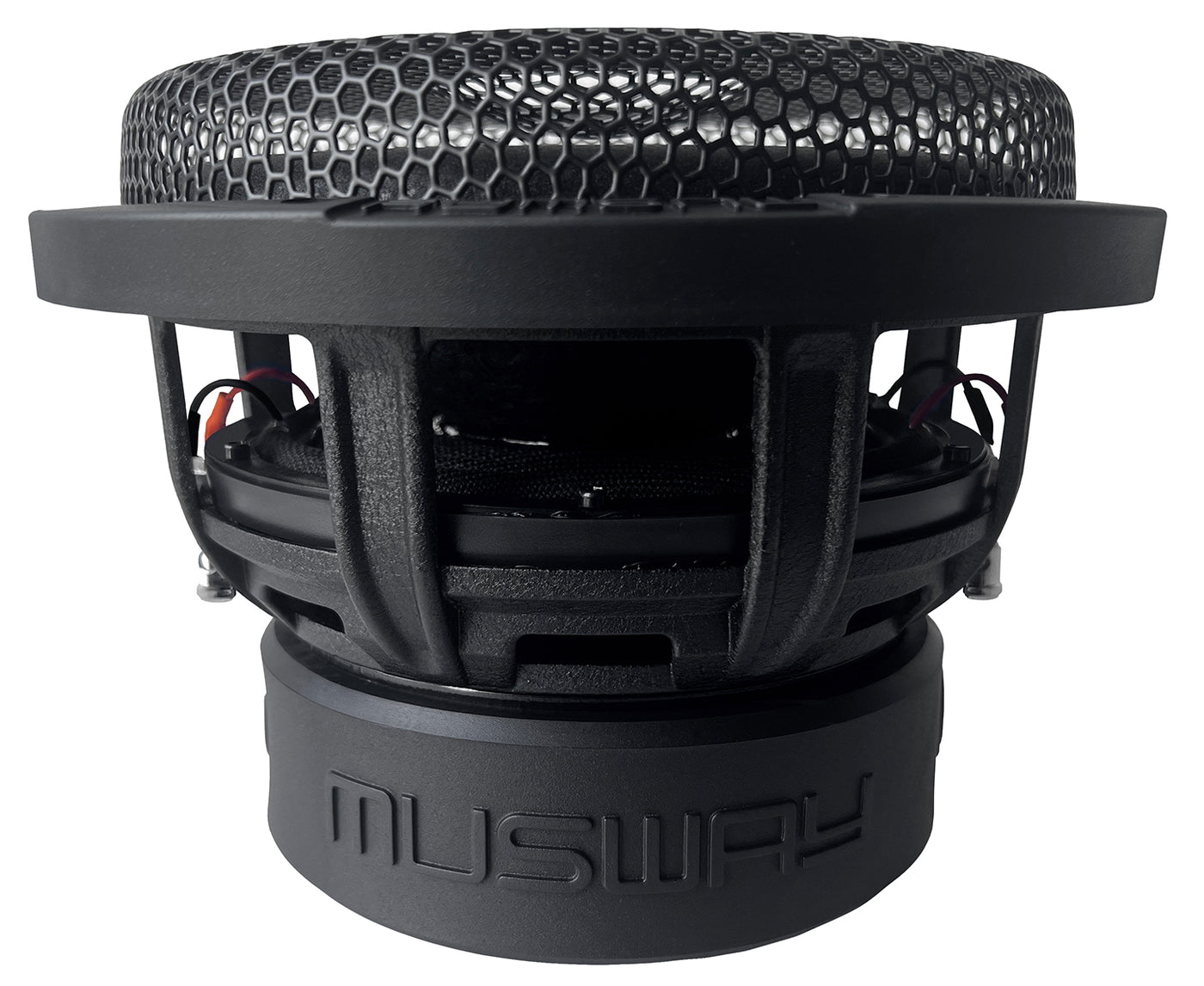

Musway MG8 8" Dual 2-Ohm Subwoofer Driver with Grille

Subwoofers

£214.99
Available to order
Subwoofer driver 2 + 2 Ohms SKU MG8 Verified downloads
Driver parametersThiele / Small
Fs46 Hz • Qts 0,44 • VAS 9,5 L
QtsFs 46 Hz • 0,44 • VAS 9,5 L
VasFs 46 Hz • Qts 0,44 • VAS 9,5 L
Xmax19 mm
Why choose this product?

The Musway MG8 is a 20 cm / 8 inch subwoofer driver supplied with a pre-assembled protection grille. It uses a sturdy aluminium cast basket, dual 2-ohm impedance and a 50 mm voice coil.

Product highlights

  • 300 Watts RMS, 600 Watts max.
  • Impedance: 2 + 2 Ohms
  • 50 mm (2") voice coil
  • Sturdy aluminium cast basket
  • Pre-assembled protection grille
  • 2 x 1.4 kg (50 oz.) magnet
  • Xmax +/- 19 mm

Technical specifications

  • Fs: 46 Hz
  • Qts: 0.44
  • VAS: 9.5 L
  • SPL: 88 dB/2.38V/1m
  • Installation depth: 138 mm
  • Installation diameter: 185 mm
Key features
• 300 Watt RMS, 600 Watt max.
• 50 mm (2") Voice Coil
• Pre-assembled Protection Grille
• Fs 46 Hz • Qts 0,44 • VAS 9,5 L
• SPL 88 dB/2,38V/1m • Xmax +/- 19 mm
• Installation Depth 138 mm
• Installation Diameter 185 mm
• 30 CM (12“) SUBWOOFER INCL. PROTECTION GRILLE
Manufacturer features
  • 300 Watt RMS, 600 Watt max.
  • Impedance 2 + 2 Ohms
  • 50 mm (2") Voice Coil
  • Sturdy Aluminum Cast Basket
  • Pre-assembled Protection Grille
  • 2 x 1,4 kg (50 oz.) Magnet
  • Fs 46 Hz • Qts 0,44 • VAS 9,5 L
  • SPL 88 dB/2,38V/1m • Xmax +/- 19 mm
  • Installation Depth 138 mm
  • Installation Diameter 185 mm
Technical overview

Power & electrical

Driver & acoustic data

Xmax
19 mm

Enclosure & installation

Downloads
MUSWAY MG8 user manualMUSWAY MG8 datasheetMUSWAY MG8 datasheet
