Morel

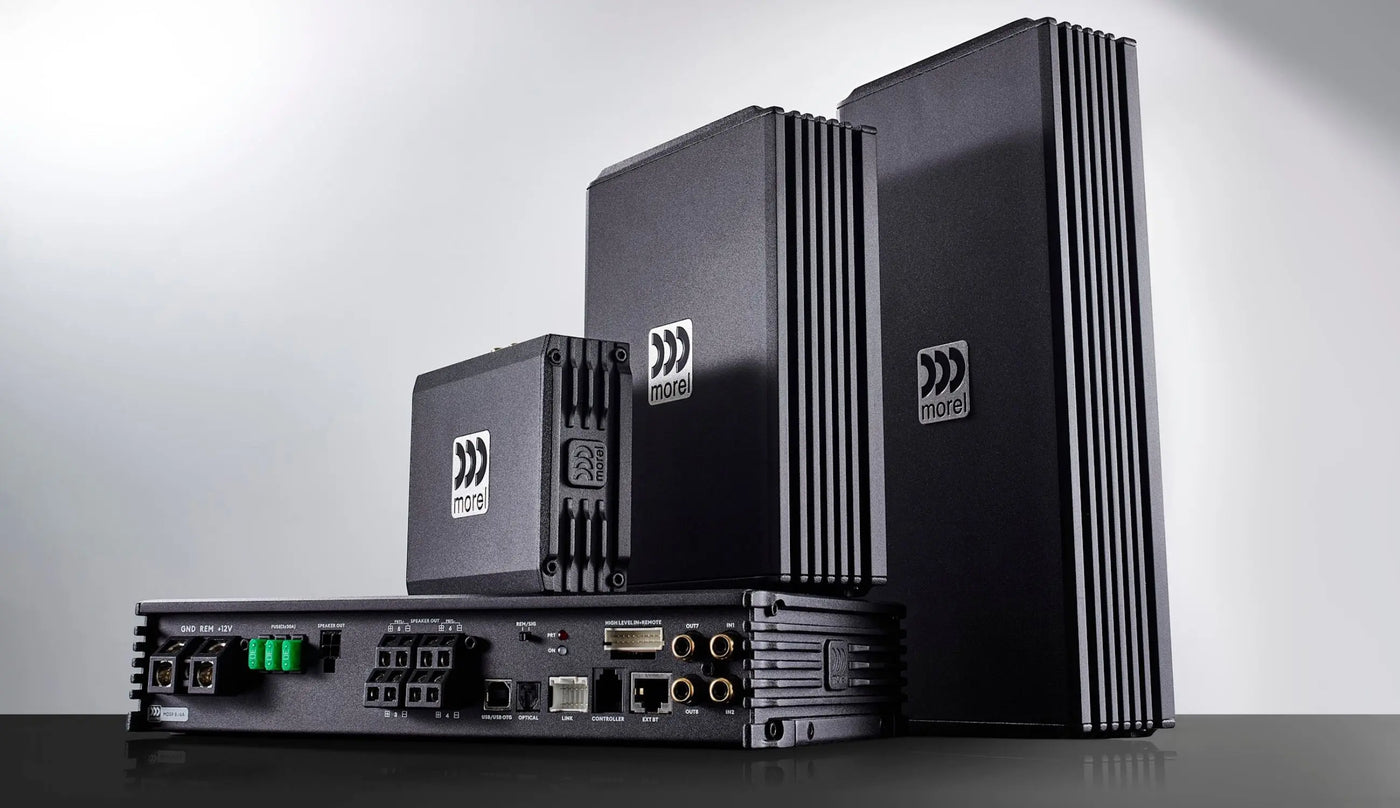

Morel MDSP 6/4A 100W 4 Channel Amplifier with 6 Channel DSP
DSP Amplifier
£299.00
Available to order
The Morel MDSP 6/4A is a compact 4 channel amplifier with 6 channel DSP from the MDSP amplifier series.Morel describes the MDSP line as compact amplifiers for modern vehicle integration, combining high-resolution DSP, speaker-level inputs, signal summing, and system-wide tuning.The MDSP 6/4A...
At a glance
SKU MOR MDSP 6/4A
Dimensions35 x 90 x 116 mm
Technical overview
DSP platform and product features
Sample rate24 bit / 96kHz
Outputs4 channel
System roleIntegrated amplifier stage
Overview & features
The Morel MDSP 6/4A is a compact 4 channel amplifier with 6 channel DSP from the MDSP amplifier series.
Morel describes the MDSP line as compact amplifiers for modern vehicle integration, combining high-resolution DSP, speaker-level inputs, signal summing, and system-wide tuning.
The MDSP 6/4A provides 25W x 4 at 4 ohms and includes 4 amplified speaker outputs with 2 low-level RCA outputs.
Key features
- 4 channel Class AB amplifier with 6 channel DSP
- 25W x 4 at 4 ohms
- 4 high-level inputs
- 2 low-level RCA outputs
- DRC Connect controller support
- 24 bit / 96kHz DSP
- 20-20,000Hz frequency response
- Compact 90 x 116 mm footprint
Technical overview
- Frequency response
- 20-20,000Hz
- Outputs
- 4 channel
- Sample rate
- 24 bit / 96kHz
Installation
- Dimensions
- 35 x 90 x 116 mm
