Musway

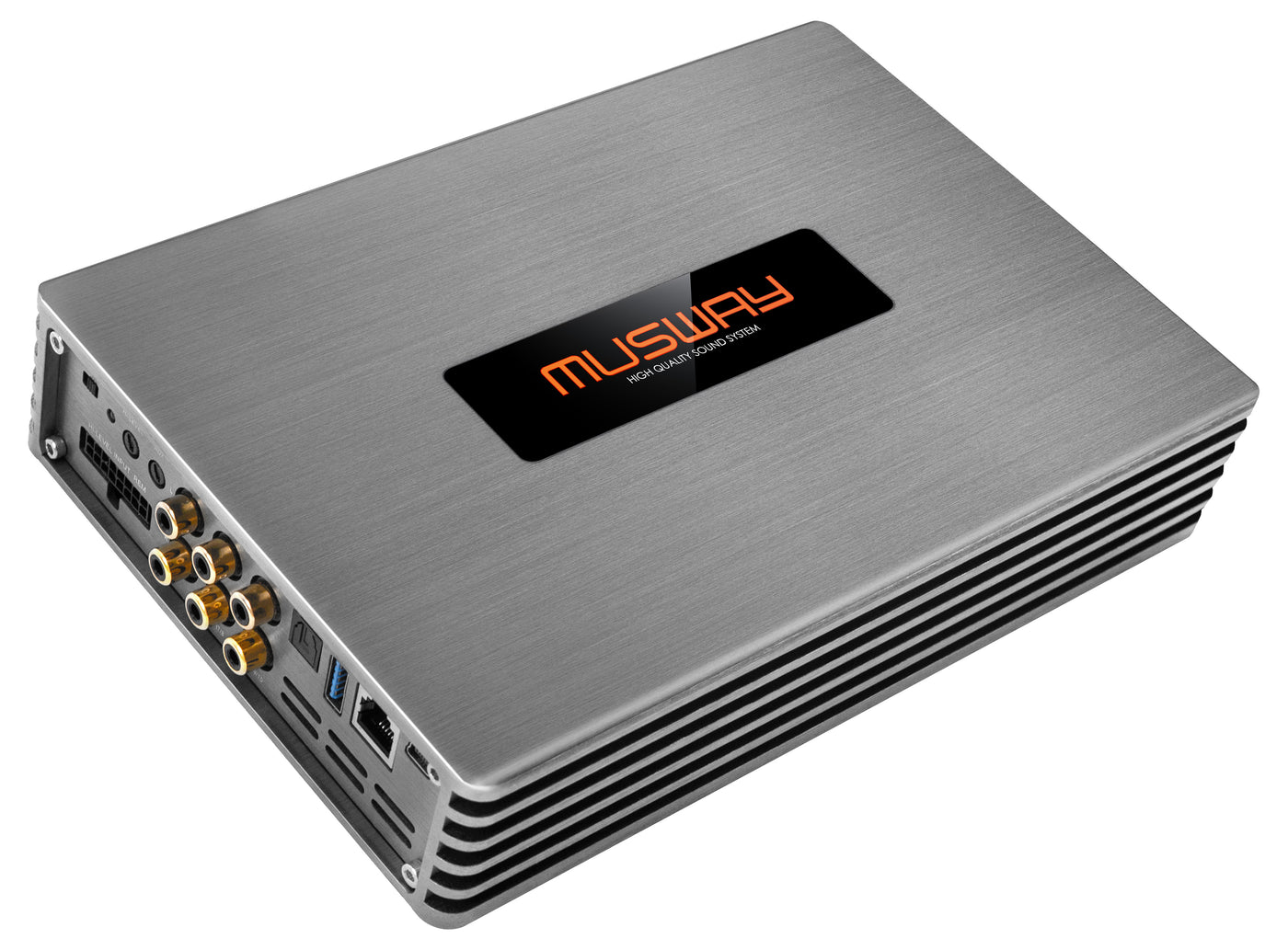

MUSWAY M6 PRO-512K 6CH DSP Amplifier
6-Channel Class D Amplifier With 10-Channel DSP
£774.99
Available to order
DSP Amplifier
6 Channel
300W to 500W
2 Ohm, 4 Ohm
Manual included
Dsp tuning
The MUSWAY M6 PRO-512K 6CH DSP Amplifier is a MUSWAY dsp amplifier for active car audio upgrades where tuning control and compact installation matter. It is suited to builds needing dsp, 512k, class d.
Use the feature and technical specification sections below to compare channels, RMS output, impedance support, tuning options and installation details before ordering. Key installation details and specifications are listed below.
Best for tuned active upgrades
Use the DSP and channel data below to check routing, tuning and integration requirements before fitting.
Features
• 6-CHANNEL CLASS D AMPLIFIER WITH 10-CHANNEL DSP
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Soft-Clipping (power attenuation) in 2 Ohm operation
• Signal-to-noise Ratio 100 dB
• Frequency Response 10 Hz – 22,5 kHz (-3dB)
• THD 0,01% (1 kHz, 4 Ohms, 10 W)
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Soft-Clipping (power attenuation) in 2 Ohm operation
• Signal-to-noise Ratio 100 dB
• Frequency Response 10 Hz – 22,5 kHz (-3dB)
• THD 0,01% (1 kHz, 4 Ohms, 10 W)
Technical Specifications
Power Ratings
• 6 x 120/200 Watts RMS @ 4/2 Ohms or
• 3 x 400 Watts RMS @ 4 Ohms bridged
Dsp & Tuning
• 6-CHANNEL CLASS D AMPLIFIER WITH 10-CHANNEL DSP
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Frequency Response 10 Hz – 22,5 kHz (-3dB)
• 512k Bit DSP technology, controllable via PC software or Smartphone App
• Digital remote control DRC1 and myCON for controlling various DSP functions (optional)
• AMOLED Touchscreen Controller to control the DSP Functions
• Only Compatible with 512K-DSP models
• Digital Remote Controller with Display to control the DSP Functions
• Compatible with all DSP models
• Bluetooth® Dongle for
• HD Audio Streaming & App Control
Inputs & Outputs
• High Level Input with EPS ® (Error Protection System)
• External Bluetooth® USB-Dongles BTS , BTS-HD & BTA-HD for Audio Streaming & App Control (optional)
• 6 x Low Level Input RCA
• 6 x High Level Input with EPS ®
• 1 x Optical Input/Stereo PCM
• 6 x Loudspeaker Output amplified
• 4 x Pre-Amplifier Output RCA (configurable via DSP)
Dimensions & Installation
• Frequency Response 10 Hz – 22,5 kHz (-3dB)
• THD 0,01% (1 kHz, 4 Ohms, 10 W)
• Start-Stop ready, Auto Turn-On
• Dimensions: 160 x 45 x 235 mm
• 6 x 120/200 Watts RMS @ 4/2 Ohms or
• 3 x 400 Watts RMS @ 4 Ohms bridged
Dsp & Tuning
• 6-CHANNEL CLASS D AMPLIFIER WITH 10-CHANNEL DSP
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Frequency Response 10 Hz – 22,5 kHz (-3dB)
• 512k Bit DSP technology, controllable via PC software or Smartphone App
• Digital remote control DRC1 and myCON for controlling various DSP functions (optional)
• AMOLED Touchscreen Controller to control the DSP Functions
• Only Compatible with 512K-DSP models
• Digital Remote Controller with Display to control the DSP Functions
• Compatible with all DSP models
• Bluetooth® Dongle for
• HD Audio Streaming & App Control
Inputs & Outputs
• High Level Input with EPS ® (Error Protection System)
• External Bluetooth® USB-Dongles BTS , BTS-HD & BTA-HD for Audio Streaming & App Control (optional)
• 6 x Low Level Input RCA
• 6 x High Level Input with EPS ®
• 1 x Optical Input/Stereo PCM
• 6 x Loudspeaker Output amplified
• 4 x Pre-Amplifier Output RCA (configurable via DSP)
Dimensions & Installation
• Frequency Response 10 Hz – 22,5 kHz (-3dB)
• THD 0,01% (1 kHz, 4 Ohms, 10 W)
• Start-Stop ready, Auto Turn-On
• Dimensions: 160 x 45 x 235 mm
Downloads and support
Download owner manual
PDF manual hosted by TenderSounds.
