1 / 4
Musway

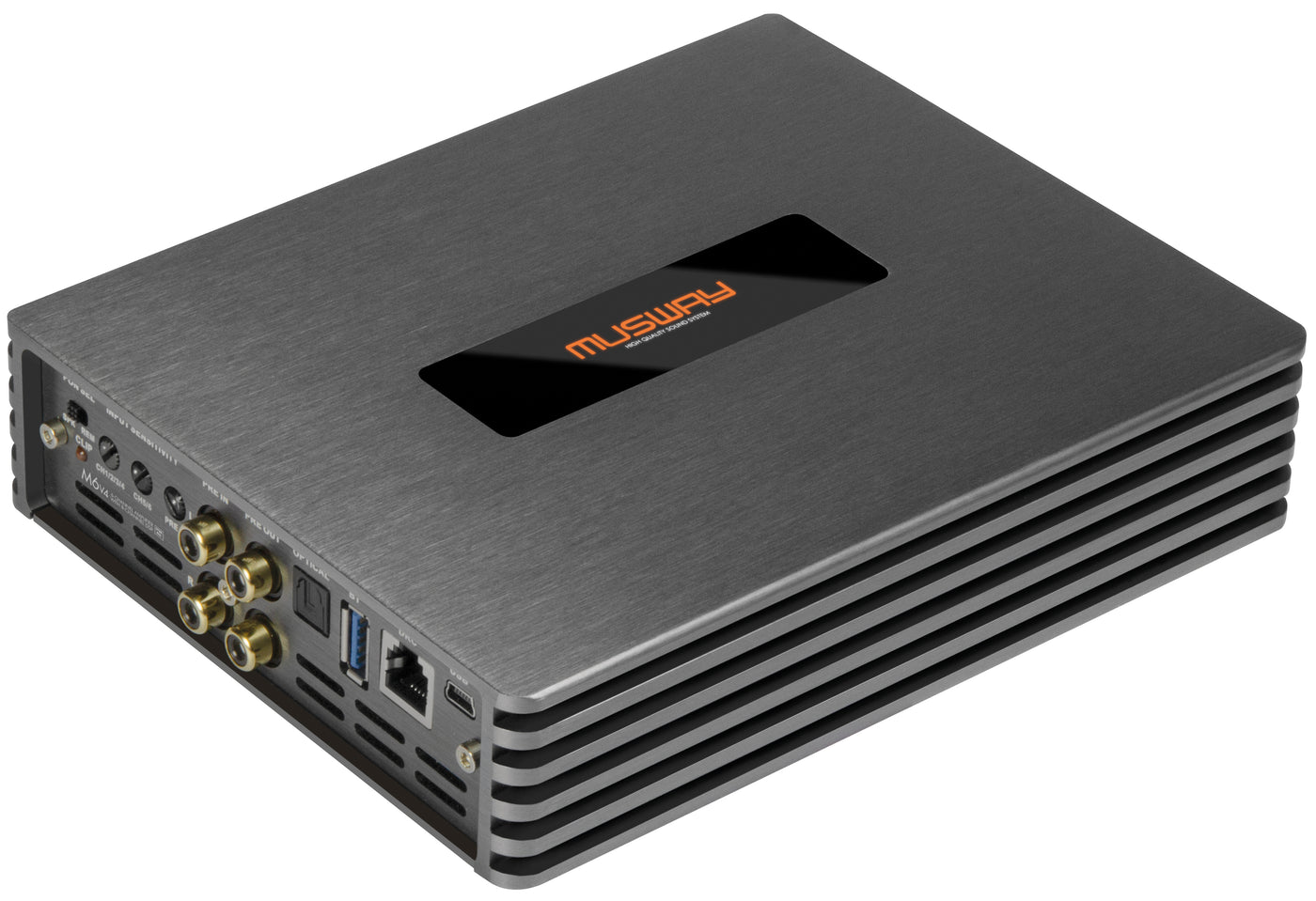

MUSWAY M6v4-512K 6CH DSP Amplifier
DSP Amplifier
£549.99
Available to order
The MUSWAY M6V4-512K is a compact six-channel Class D amplifier with integrated eight-channel 512K DSP processing.Package contents: Includes the 2 m ISO plug-and-play connection loom.The M6v4-512K and M6v4 EVO 512K use the same amplifier platform; the package loom is the purchasing difference...
At a glance
SKU M6V4-512K
Amplifier channels6 Channel
DSP channels6 DSP Channels
Power ratings6 x 80/130 Watts RMS @ 4/2 Ohms or
Impedance2 Ohm, 4 Ohm
Dimensions200 x 44 x 150 mm
Technical overview
DSP platform and product features
DSP chip / platformBurr-Brown ADC digital converters (PCM3168A) and Analog Devices DSP (ADAU1466)
Signal-to-noise ratio94 dB A-weighted
DSP channels6 DSP Channels
Sample rate96 kHz optical PCM input (up to 96 kHz / 24-bit)
DSP precision64-bit
System roleIntegrated amplifier stage
Product-specific features
- Start-Stop ready, Auto Turn-On (Sensitivity adjustable in software)
- 512k Bit DSP technology, controllable via PC software or Smartphone App
- Digital remote control DRC1 and myCON for controlling various DSP functions (optional)
- Digital Remote Controller with Display to control the DSP Functions
- Optional: Bluetooth® Dongle for
- HD Audio Streaming & App Control
- Optional: External Bluetooth® USB-Dongles BTS , BTS-HD & BTA-HD for Audio Streaming & App Control (optional)
- 1 x Optical Input/Stereo PCM
- Start-Stop ready, Auto Turn-On (Sensitivity adjustable in software)
Overview & features
The MUSWAY M6V4-512K is a compact six-channel Class D amplifier with integrated eight-channel 512K DSP processing.
Package contents: Includes the 2 m ISO plug-and-play connection loom.
The M6v4-512K and M6v4 EVO 512K use the same amplifier platform; the package loom is the purchasing difference between these two listings.
Key Features
- 6-CHANNEL CLASS D AMPLIFIER WITH 8-CHANNEL DSP
- Burr-Brown ADC digital converters (PCM3168A) and Analog Devices DSP (ADAU1466)
- Separately controllable input sensitivity (Channel 1-4, Channel 5-6), Clipping LEDs
- Plug+Play with vehicle-specific cable sets
- Quick Connect Terminal to connect MUSWAY Subwoofer Systems
Power Ratings
- 6 x 80/130 Watts RMS @ 4/2 Ohms or
- 3 x 260 Watts RMS @ 4 Ohms bridged
DSP & Tuning
- 6-CHANNEL CLASS D AMPLIFIER WITH 8-CHANNEL DSP
- Burr-Brown ADC digital converters (PCM3168A) and Analog Devices DSP (ADAU1466)
- Start-Stop ready, Auto Turn-On (Sensitivity adjustable in software)
- 512k Bit DSP technology, controllable via PC software or Smartphone App
- Digital remote control DRC1 and myCON for controlling various DSP functions (optional)
- AMOLED Touchscreen Controller to control the DSP Functions
- Only Compatible with 512K-DSP models
- Digital Remote Controller with Display to control the DSP Functions
- Compatible with all DSP models
- Bluetooth® Dongle for
- HD Audio Streaming & App Control
Inputs & Outputs
- High Level Input with EPS ® (Error Protection System)
- External Bluetooth® USB-Dongles BTS , BTS-HD & BTA-HD for Audio Streaming & App Control (optional)
- 6 x High Level Input with EPS ®
- 6 x Low Level Input* RCA
- 1 x Optical Input/Stereo PCM
- 6 x Loudspeaker Output amplified
- 2 x Pre-Amplifier Output RCA (configurable via DSP)
Dimensions & Installation
- Start-Stop ready, Auto Turn-On (Sensitivity adjustable in software)
- Dimensions: 150 x 44 x 200 mm
Additional specifications
- Signal-to-noise ratio
- 94 dB A-weighted
- Dimensions
- 200 x 44 x 150 mm
- Weight
- 1.6 kg
- Bit depth
- 64-bit
- Bluetooth
- Optional via external Bluetooth USB dongle; wireless audio streaming
- Sample rate
- 96 kHz optical PCM input (up to 96 kHz / 24-bit)
