Musway

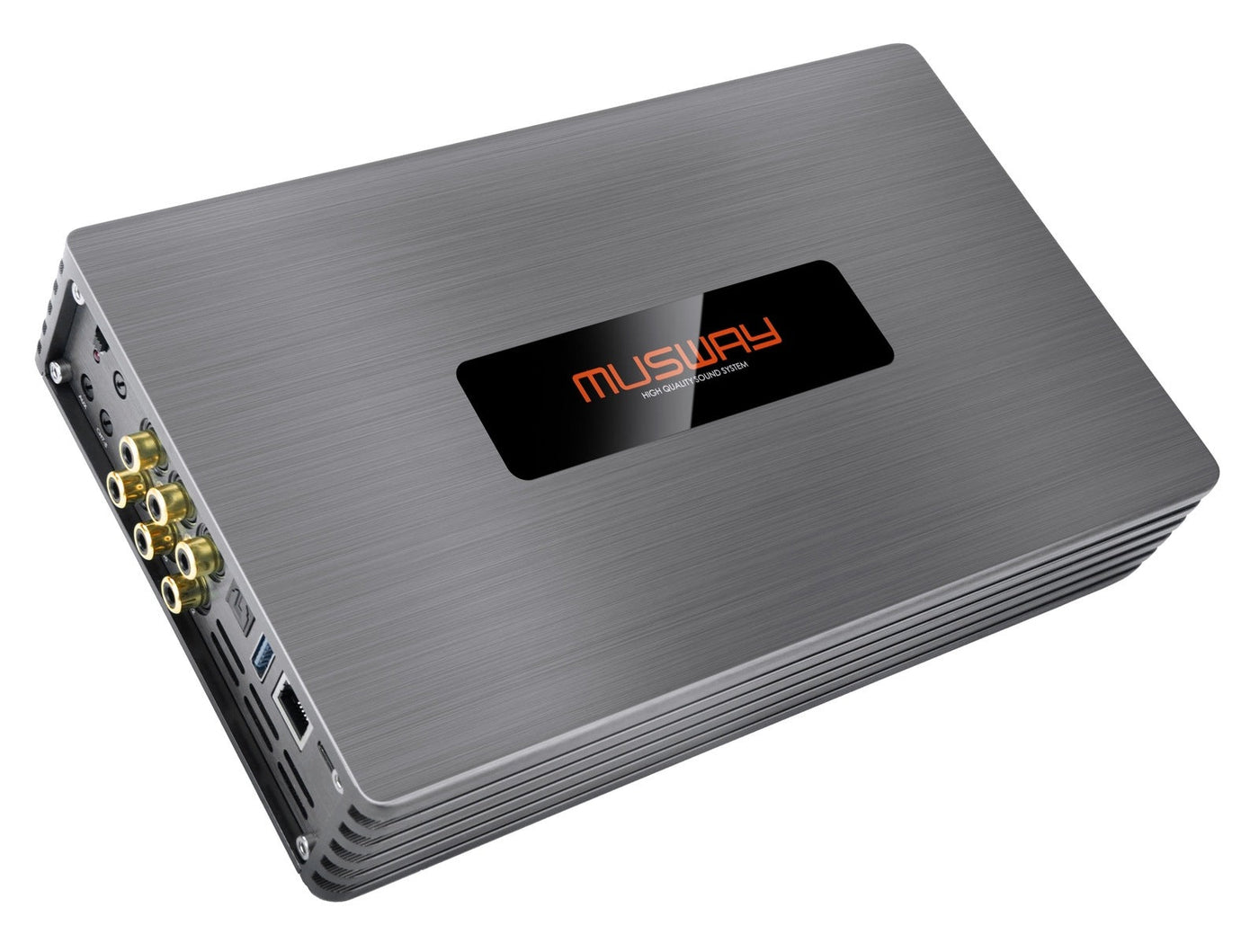

MUSWAY M8 512K 8CH DSP Amplifier

8-channel Class D amplifier with 12-channel 512K DSP

£819.99
Available to order
8 amplified channels / 12 DSP channels 2 Ohm, 4 Ohm Dsp tuning

MUSWAY M8 512K 8-channel DSP amplifier

The M8 512K is MUSWAY's 8-channel Class D amplifier with an integrated 12-channel DSP, designed for premium active OEM+ and vehicle-specific upgrade packages.

  • 8 amplified speaker outputs with 12-channel DSP processing
  • 6 x 80 / 135W RMS at 4 / 2 ohms, plus 2 x 120 / 220W RMS at 4 / 2 ohms
  • Bridge option: 1 x 440W RMS at 4 ohms
  • Dynamic Headroom Technology, with channels 1-6 up to 156W RMS at 2 ohms where programme material allows
  • 8 high-level inputs with EPS, 6 RCA low-level inputs, 2 AUX RCA inputs and 1 optical stereo PCM input
  • 4 configurable RCA pre-outs and REV IN for reverse-signal car host mode
  • 512K DSP platform with PC/software or smartphone app control, input/output EQ, shelf filters and all-pass filters
  • Optional DRC1, myCON, BTS, BTS-HD and BTA-HD accessories supported
  • Dimensions: 245 x 44 x 150 mm

Source checked against MUSWAY's official M8 512K product page. Please confirm exact vehicle model, year and factory audio system before installation.

Best for tuned active upgrades Use the DSP and channel data below to check routing, tuning and integration requirements before fitting.
WhatsApp compatibility help Email us
Downloads and support
Manual coming soon. Contact us for installation advice.
MUSWAY M8 512K 8CH DSP Amplifier £819.99
