Musway

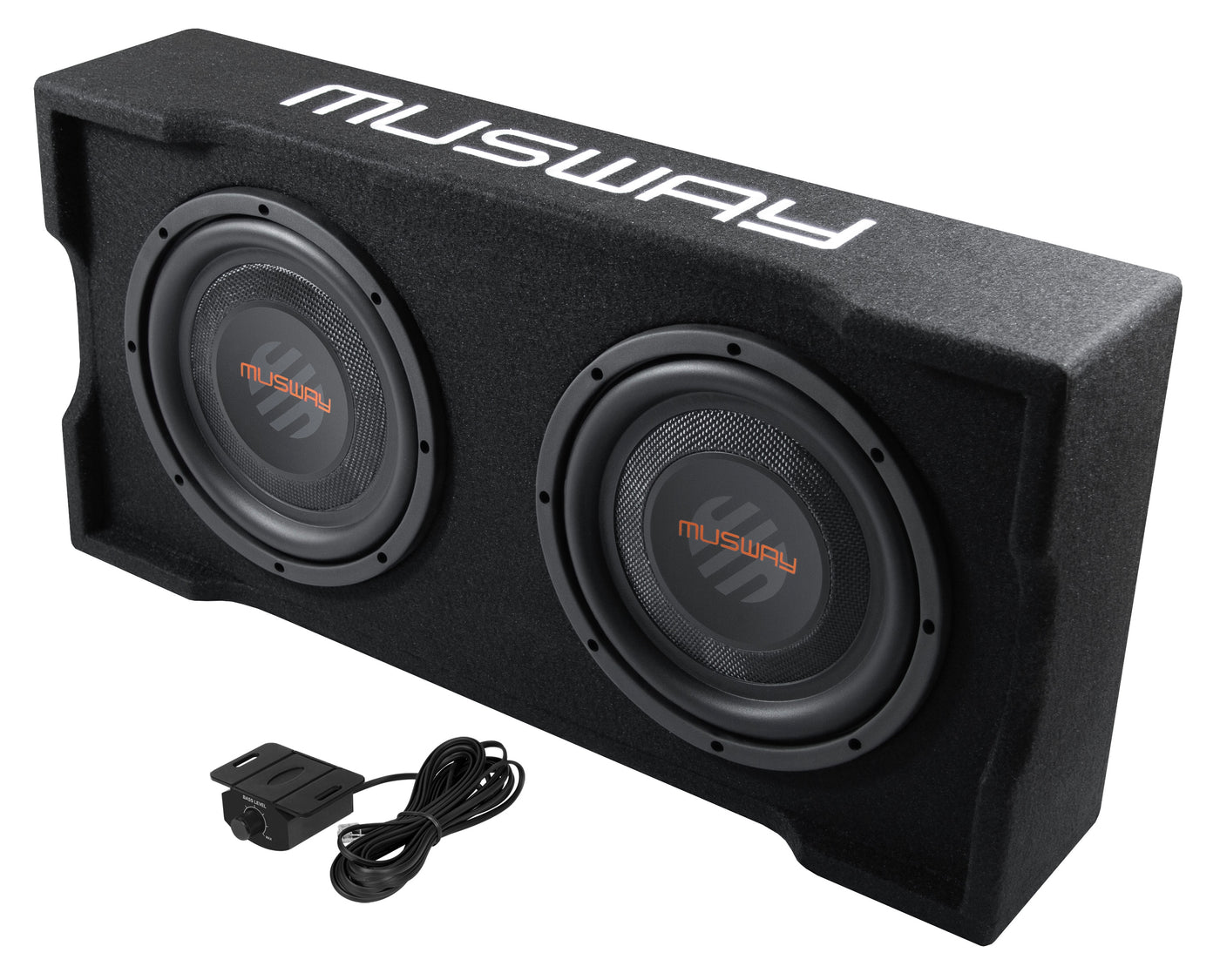

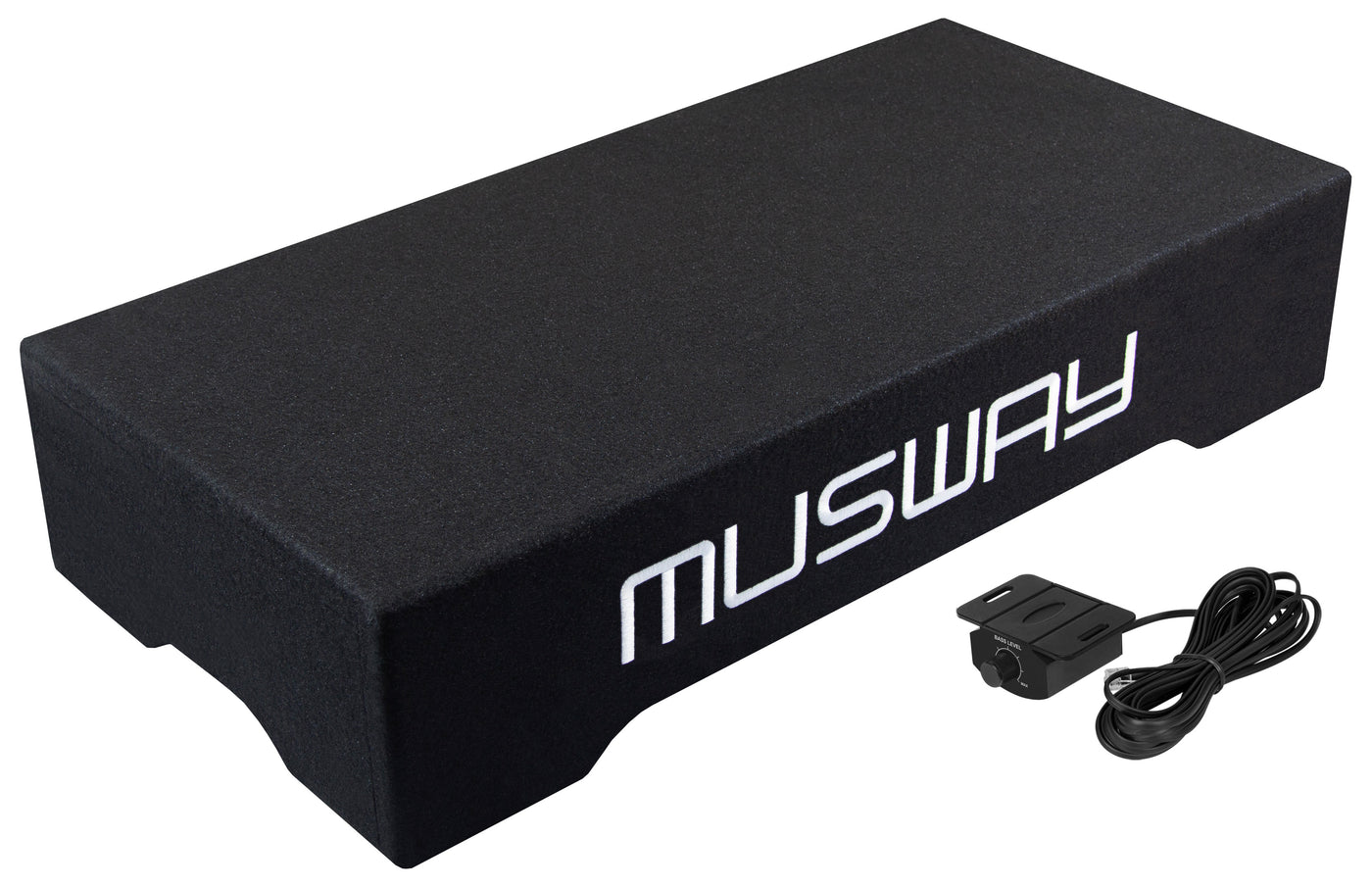

Musway MF210A Active 10" Downfire Subwoofer System

ACTIVE SUBWOOFER SYSTEM IN FLAT DESIGN (DOWNFIRE) WITH 25 CM (10“) SUBWOOFER AND PASSIVE RADIATOR

£429.99
Available to order
Active Subwoofer SKU MF210A Manual included
Tech specs Shown below
Manuals/downloads Download linked
Warranty Manufacturer backed
Match enclosure and amplifier power Use the product details and message us if you want help pairing this with the right amp or box.
Why choose this product?

ACTIVE SUBWOOFER SYSTEM IN FLAT DESIGN (DOWNFIRE) WITH 25 CM (10“) SUBWOOFER AND PASSIVE RADIATOR

If standard subwoofer boxes are too big and bulky for you or if you don't have enough space in the spare wheel well, you'll now find what you're looking for in the Musway range with the new MF210A downfire boxes, which are only 15 cm high. With these new designs, the membranes are optimally protected because they radiate downwards in a way that is virtually invisible. At the same time, almost no storage space is lost in the trunk.

In order to be able to integrate a large 25 cm subwoofer into a small box, the Musway engineers use a clever trick: instead of a bass reflex tube, which takes up a lot of space and therefore valuable internal volume, they use a second, passive membrane in the MF210A boxes. This creates the same effect as a bass reflex tuning, but saves a lot of space and prevents unwanted flow noise. The passive membranes are made of high-strength fiberglass to withstand the internal pressure well and ensure perfect sound.

The sturdily designed MDF housings are covered with high-quality black carpet and fit harmoniously and discreetly into every vehicle interior. Furthermore, without exception, all models are equipped with Quick Connect sockets and can be connected easily by using an optional connection cable, for example, to the MUSWAY M6 and its Quick Connect port. Of course, the MUSWAY subwoofer systems can also be connected to conventional push-pin terminals.

At a glance

25 cm (10") Subwoofer with passive radiator; Efficient Class D Mono Amplifier; 1 x 400/800 Watts RMS/Max..

Controls: LPF 40-120 Hz @ 12 dB, Phase Shift 0°/180°, Bass Boost 0-6dB @ 45Hz.

Inputs/support: RCA Low Level Input, High Level Input, Auto Turn-On Function (DC or signal).

Dimensions: 345 x 150 x 700 mm.

Technical specifications

Driver: 25 cm (10") Subwoofer with passive radiator

Amplifier: Efficient Class D Mono Amplifier

Power: 1 x 400/800 Watts RMS/Max.

Efficiency: Efficiency up to 84%

Low-pass filter: LPF 40-120 Hz @ 12 dB

Phase: Phase Shift 0°/180°

Bass boost: Bass Boost 0-6dB @ 45Hz

RCA input: RCA Low Level Input

High-level input: High Level Input

Auto turn-on: Auto Turn-On Function (DC or signal)

Start-stop support: Start-stop capable, 5 sec./ up to 7 Volts

EPS PRO: EPS ® PRO with 10R / 150R / 600R (switchable)

Input sensitivity: Input Sensitivity 15 or 40 Volts (switchable)

Limiter: Triple Limiter Function, Clipping LED

Remote control: Bass Remote Controller

Dimensions: 345 x 150 x 700 mm

Downloads and support

Check enclosure type, amplifier matching, available space and dimensions before ordering. Message us if you want help matching the product to the right amplifier or installation position.

We reply by email or WhatsApp so you have the recommendation in writing.

Downloads
Download owner manual Manufacturer documentation supplied where available.
