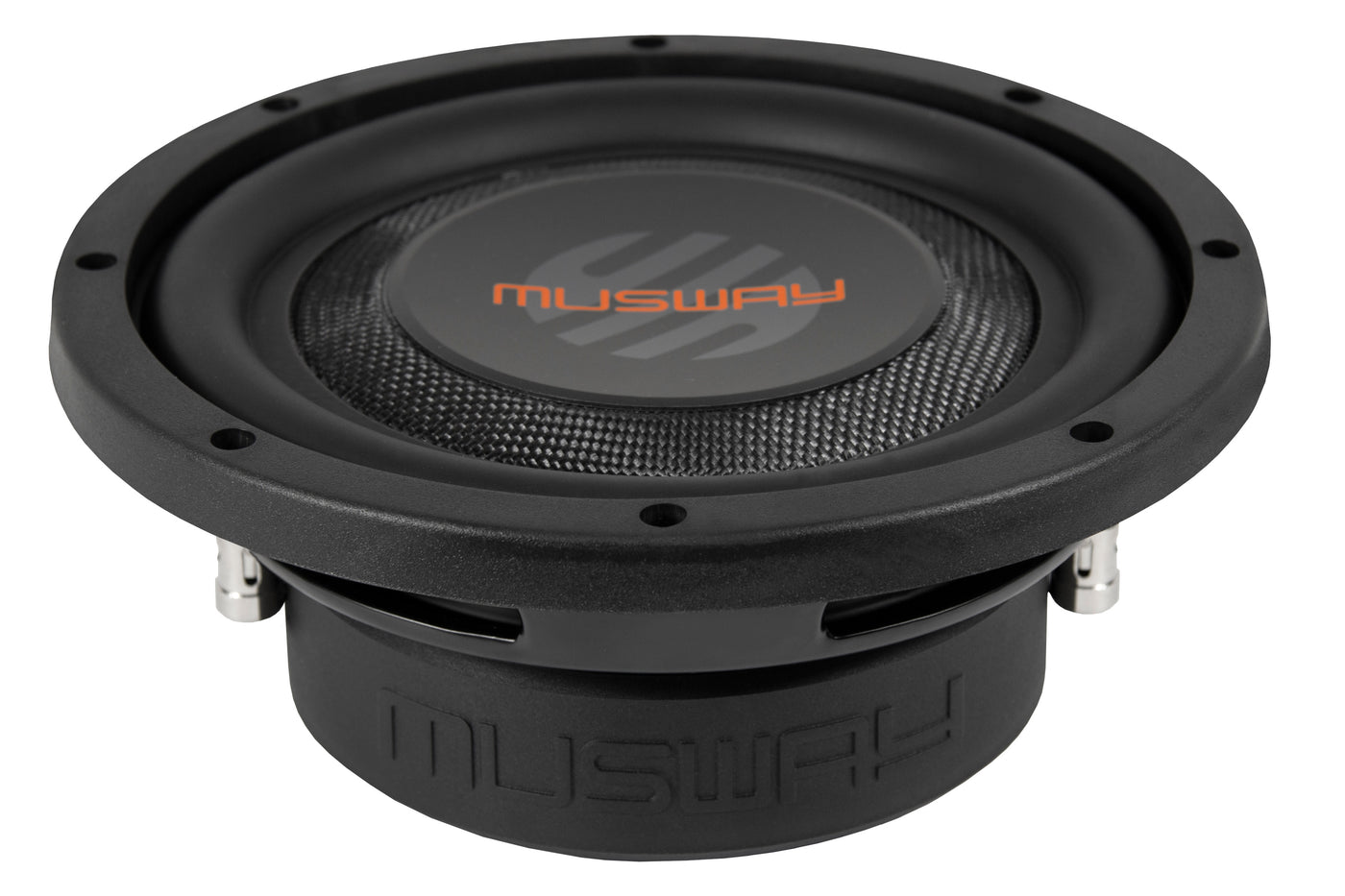

Musway MWS844 Flat 8" Dual 4-Ohm Subwoofer Driver
20 CM (8“) SUBWOOFER IN FLAT DESIGN
Why choose this product?
20 CM (8“) SUBWOOFER IN FLAT DESIGN
MUSWAY is known for its small and at the same time very powerful products. The two new flat subwoofers also join this tradition. Due to their design, they also suitable for installation locations that have little space in depth when shallow installation dimensions are a must. With an installation depth of 78 mm for the 8" (20 cm) and a sensationally low 87 mm for the 10" (25 cm) subwoofer, they are the ideal problem solvers for special installations.
A particularly flat subwoofer should of course sound good and must be robust. That is why MUSWAY uses special and very hard cones made of the composite materials glass fiber and carbon . No savings were made on the drives either: the woofers have 40 or 45 ounce magnets and are driven by 50 mm 2 + 2 ohm dual voice coils, which are also very long wound. With Xmax values of +/- 15 mm, both woofers ensure a decent stroke. With 250 or 300 watts RMS, they are also very resilient, so that no compromises have to be made.
At a glance
250 Watts RMS, 500 Watts Max.; impedance 4 + 4 Ohms.
50 mm (2") Voice Coil; Sturdy Steel Basket; 1,13 kg (40 oz.) Magnet.
Installation depth 78 mm; cut-out diameter 182 mm.
Technical specifications
Power: 250 Watts RMS, 500 Watts Max.
Impedance: 4 + 4 Ohms
Voice coil: 50 mm (2") Voice Coil
Basket: Sturdy Steel Basket
Magnet: 1,13 kg (40 oz.) Magnet
Thiele/Small: Fs 40,7 Hz • Qts 0,598 • VAS 10,1 L
Output / excursion: SPL 89 dB/2.83 V/1m, Xmax +/- 15 mm
Installation depth: 78 mm
Cut-out diameter: 182 mm
