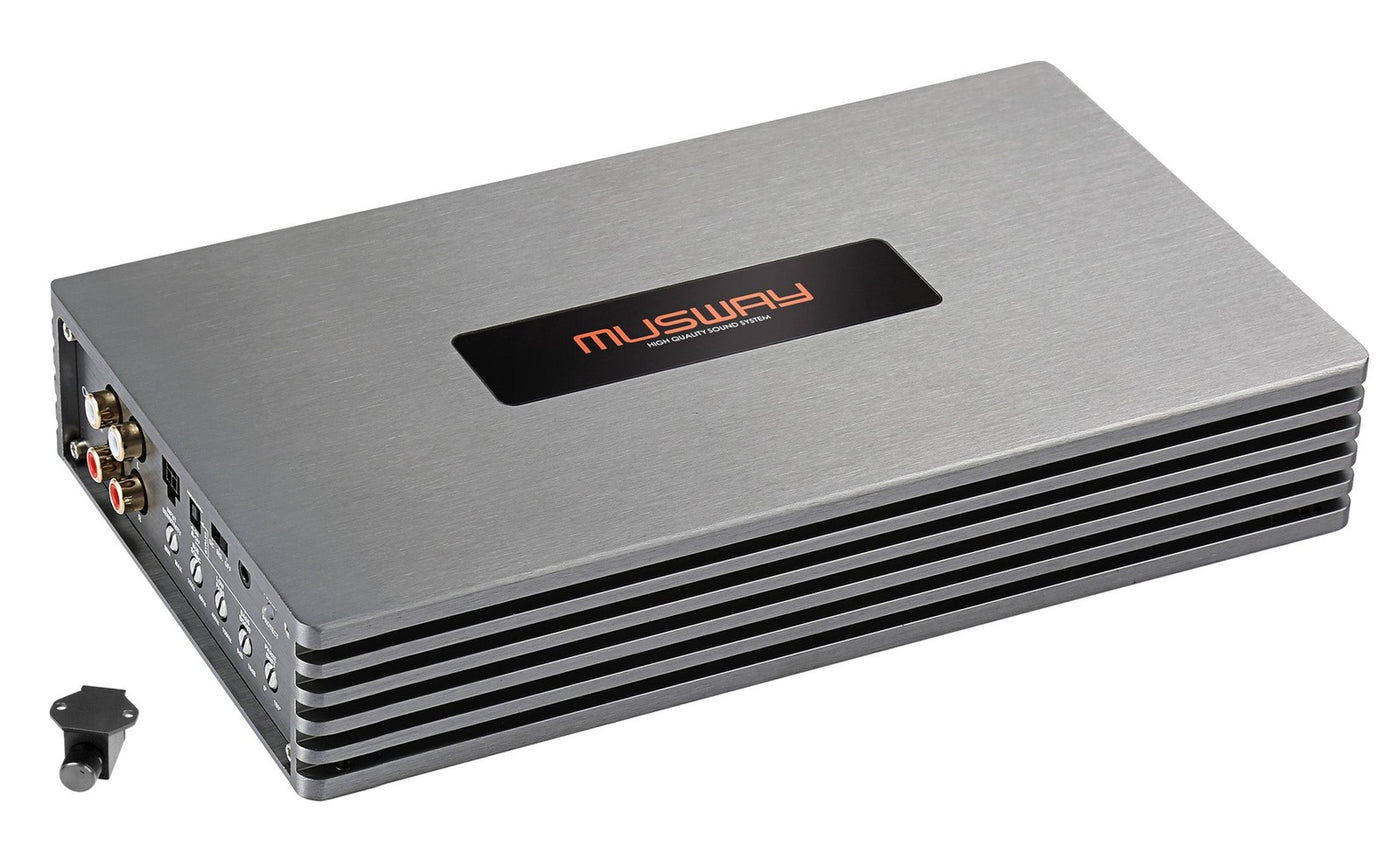

MUSWAY ONE1500 Mono Class D Amplifier

Overview & features

The MUSWAY ONE1500 Mono Class D Amplifier is a MUSWAY mono amplifier for subwoofer systems that need controlled, efficient bass power. It is suited to builds needing class d, high level input, remote control.

Use the feature and technical specification sections below to compare channels, RMS output, impedance support, tuning options and installation details before ordering. Key installation details and specifications are listed below.

Download the ONE1500 owner manual

Key Features

• Start-Stop ready, Auto Turn-On
• EPS ® (Error Protection System)
• Interference Free Technology, EMC proved
• PURE IN>OUT Function
• Brushed aluminum heat sink and end panels
• Compact Bass Level Remote Controller

Power Ratings

• 1 x 475 Watts RMS @ 4 Ohms
• 1 x 900 Watts RMS @ 2 Ohms
• 1 x 1550 Watts RMS @ 1 Ohm

DSP & Tuning

• Compact Bass Level Remote Controller
• Subsonic Filter 10 - 40 Hz
• Lowpass Filter 40 - 150 Hz
• Filter Bypass Function (Pure Amplification)
• Bass Remote Controller

Inputs & Outputs

• High and Low Level Inputs
• RCA Inputs, RCA Outputs
• High Level Inputs with EPS ®

Dimensions & Installation

• Start-Stop ready, Auto Turn-On
• Dimensions: 150 x 45 x 260 mm

Additional specifications

Bass boost

18 dB

Downloads

MUSWAY ONE1500 user manual MUSWAY ONE1500 user manual
