Musway

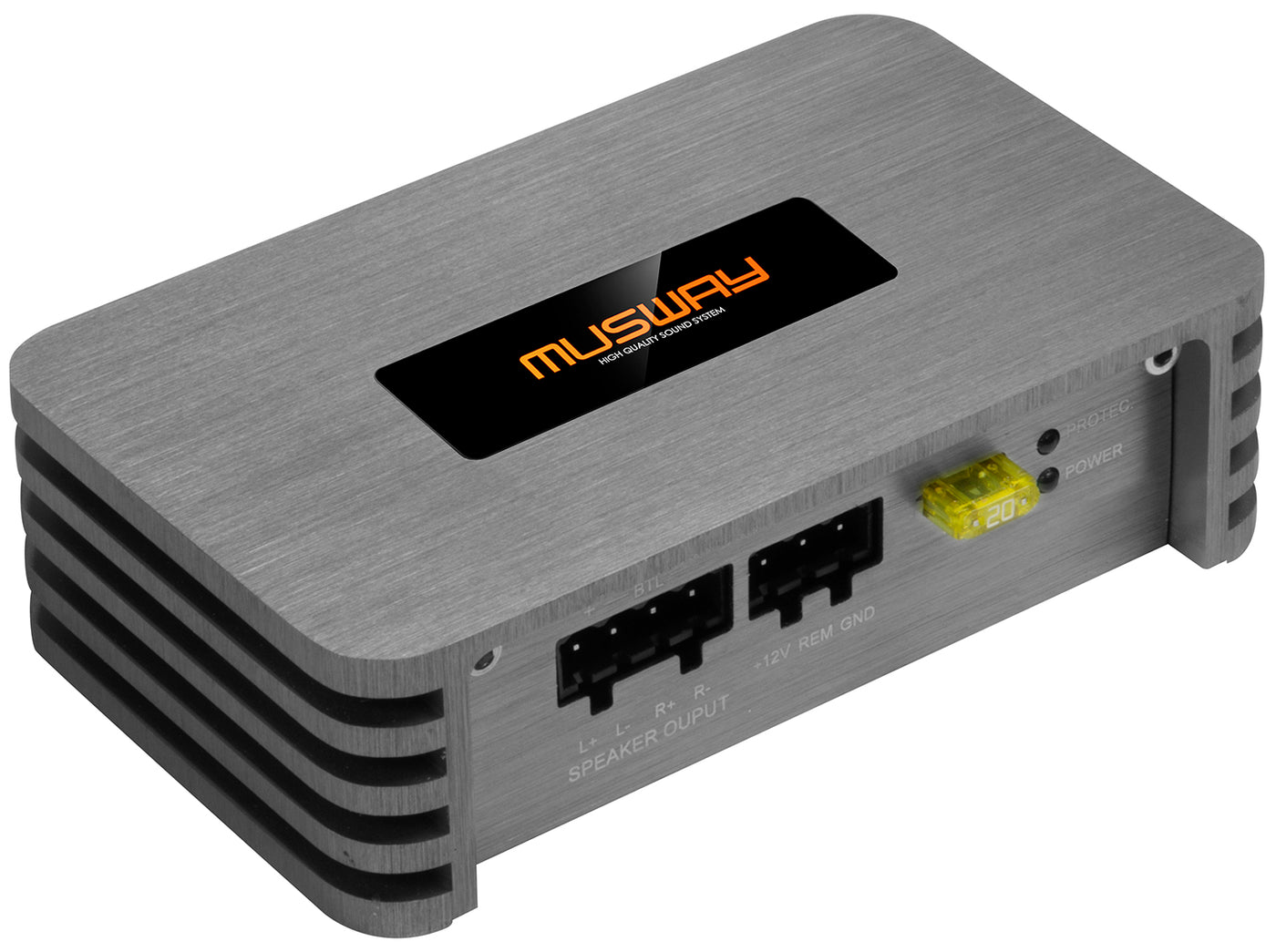

MUSWAY P2 2CH Amplifier
2 Channel Amplifier
£154.99
Available to order
The MUSWAY P2 is a compact 2-channel Class D amplifier designed as a pure amplification module. It has no DSP or filter section and is ideal for adding power to a system fed from DSP-tuned preamp outputs.It can drive a stereo speaker...
At a glance
SKU P2
Amplifier channels2 channels; 2 x 70 W RMS @ 4 Ω; 2 x 105 W RMS @ 2 Ω; 1 x 210 W RMS bridged @ 4 Ω
Amplifier classClass D; 2-channel amplifier
Dimensions124 x 36 x 75 mm (L x H x W)
Overview & features
The MUSWAY P2 is a compact 2-channel Class D amplifier designed as a pure amplification module. It has no DSP or filter section and is ideal for adding power to a system fed from DSP-tuned preamp outputs.
It can drive a stereo speaker system or a medium-sized subwoofer when bridged. Only the input sensitivity is adjustable, keeping the P2 focused on clean, compact amplification.
Key specifications
- Configuration: 2-channel Class D amplifier
- Power output: 2 x 70/105 W RMS at 4/2 Ohms, or 1 x 210 W RMS bridged at 4 Ohms
- Inputs: 2 x RCA stereo inputs
- DSP/filter section: None — pure amplification
- Dimensions: 124 x 36 x 75 mm
Downloads
Power & channels
- Amplifier class
- Class D; 2-channel amplifier
- Amplified channels
- 2 channels; 2 x 70 W RMS @ 4 Ω; 2 x 105 W RMS @ 2 Ω; 1 x 210 W RMS bridged @ 4 Ω
DSP processing & amplifier stage
- Frequency response
- 5-60,000 Hz (-3 dB)
- Signal-to-noise ratio
- >97 dB
- Total harmonic distortion
- <0.05% (1 kHz)
Installation
- Dimensions
- 124 x 36 x 75 mm (L x H x W)
Additional specifications
- Power / voltage
- +12 V (7-16 V), negative ground; 20 A fuse
- Inputs / outputs
- 2 x RCA stereo inputs; detachable speaker and power connectors; bridged output mode
