Arc Audio
PS-6.8
Standalone DSP

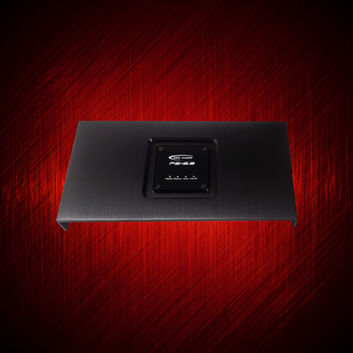

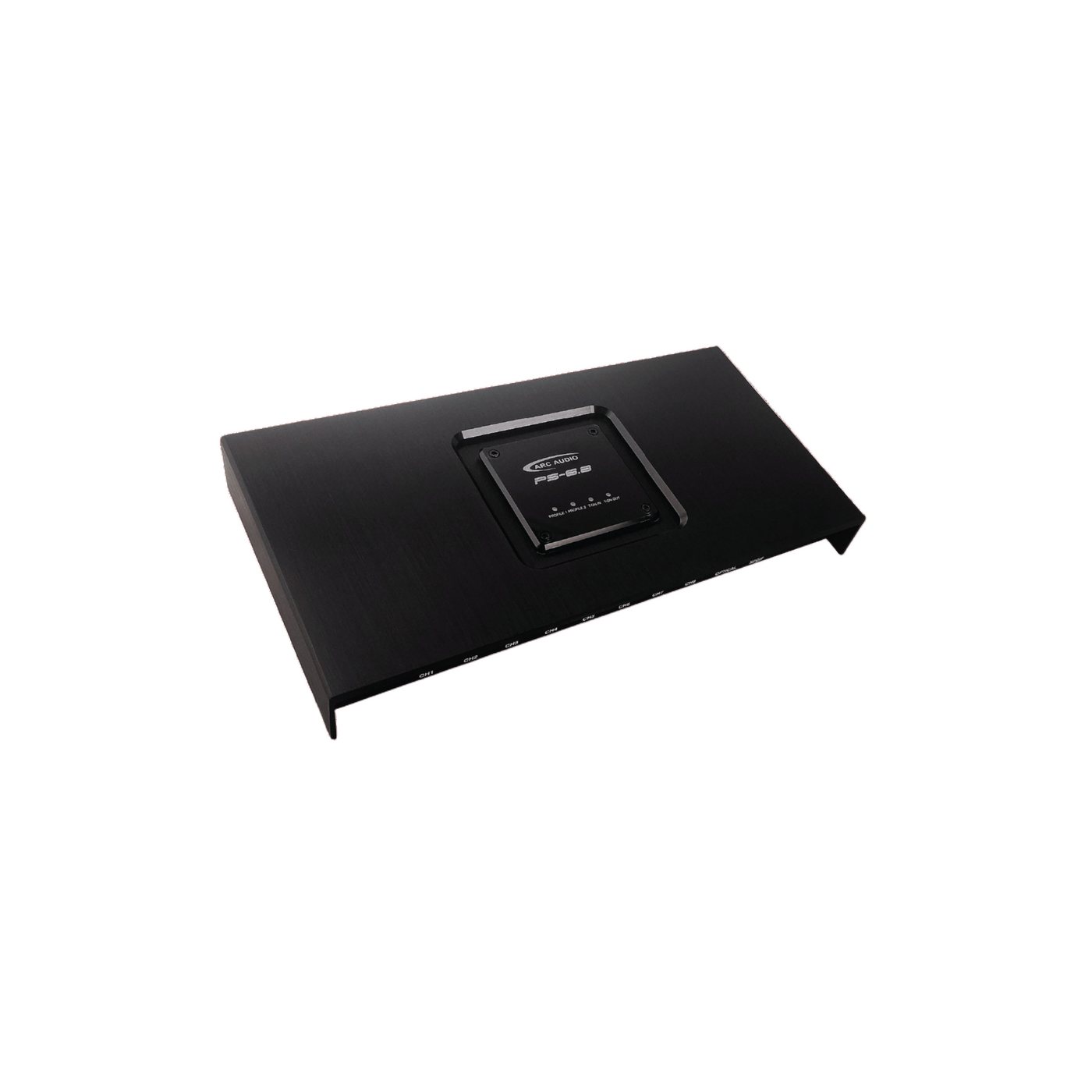

The ARC Audio PS-6.8 brings flexible, full-featured digital signal processing to OEM integration and streamlined aftermarket systems. Its 24-bit Analog Devices ADAU1452 core provides eight output channels from six analog inputs, with accurate routing, equalisation and system control through ARC Audio DNA...
- Digital coaxial and Toslink optical inputs up to 96 kHz
- ARC Audio DNA tuning software support
- Optional LR1 remote control
- Up to four user-defined presets
Overview & features
The ARC Audio PS-6.8 brings flexible, full-featured digital signal processing to OEM integration and streamlined aftermarket systems. Its 24-bit Analog Devices ADAU1452 core provides eight output channels from six analog inputs, with accurate routing, equalisation and system control through ARC Audio DNA tuning software.
Digital coaxial and Toslink optical inputs support signals up to 96 kHz, while the analog inputs accept 0.5-16 V RMS for broad factory-system compatibility. Optional LR1 control, four user presets and iDatalink Maestro AR support make the PS-6.8 a compact, value-focused processor for advanced installations.
Features
- 8 output channels with 6 analog inputs
- 24-bit Analog Devices ADAU1452 DSP core
- Digital coaxial and Toslink optical inputs up to 96 kHz
- ARC Audio DNA tuning software support
- 0.5-16 V RMS analog input compatibility
- DC signal-sensing turn-on
- Optional LR1 remote control
- Up to four user-defined presets
- iDatalink Maestro AR compatible with vehicle-specific module and harness
Official product catalogue
Power & channels
- Channels
- 8
Technical overview
- Inputs
- 6 channels, 0.5-16 V RMS
- Sample rate
- 96 kHz
