ESX Audio

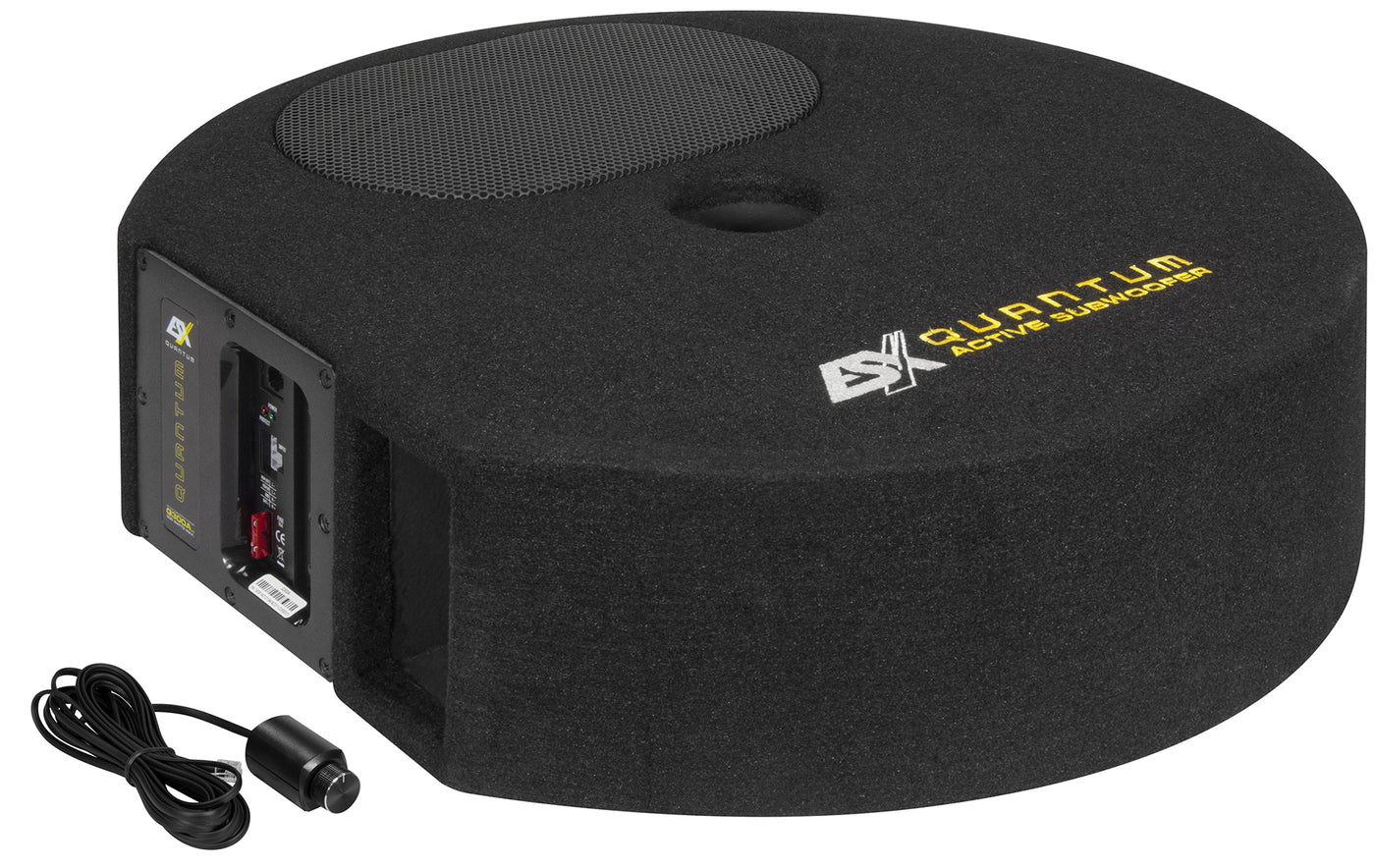

ESX Q300AV2 Quantum Active Spare Wheel Subwoofer — 6 x 9-inch (15 x 23 cm)
Active Subwoofer Enclosure
Why choose this product?
With the active QUANTUM subwoofer systems ESX offers bass solutions for extremely small space. The new Q300A is designed for the operation in a spare wheel recess. The built-in 6 x 9 special woofer provides together with the efficient digital amp rich basses in the trunk. These active systems have everything on board to provide an extra portion of bass in already installed audio systems and with the built-in high-level inputs and auto-turn-on function, they are very easy to enhance every factory system. With the remote control the bass level can be controlled out of the driver‘s seat.
15 x 23 cm (6 x 9”) Active Subwoofer System Suitable for Spare Wheel Recess Integrated Class D Amplifier 1 x 150 Watts RMS / 1 x 300 Watts Max. LPF 50-150 Hz Bass Boost 0-12dB @ 45 Hz Subsonic 25 Hz fixed Phase Shift 0/180° RCA Inputs Auto Turn-On Function High Level Inputs Removable Connectors Bass Remote Controller Dimensions Ø 500 x 150 mm
Why choose this product?
With the active QUANTUM subwoofer systems ESX offers bass solutions for extremely small space. The new Q300A is designed for the operation in a spare wheel recess. The built-in 6 x 9 special woofer provides together with the efficient digital amp rich basses in the trunk. These active systems have everything on board to provide an extra portion of bass in already installed audio systems and with the built-in high-level inputs and auto-turn-on function, they are very easy to enhance every factory system. With the remote control the bass level can be controlled out of the driver‘s seat.
15 x 23 cm (6 x 9”) Active Subwoofer System Suitable for Spare Wheel Recess Integrated Class D Amplifier 1 x 150 Watts RMS / 1 x 300 Watts Max. LPF 50-150 Hz Bass Boost 0-12dB @ 45 Hz Subsonic 25 Hz fixed Phase Shift 0/180° RCA Inputs Auto Turn-On Function High Level Inputs Removable Connectors Bass Remote Controller Dimensions Ø 500 x 150 mm
Manufacturer features
- 15 x 23 cm (6 x 9”) Active Subwoofer System Suitable for Spare Wheel Recess
- Integrated Class D Amplifier
- 1 x 150 Watts RMS / 1 x 300 Watts Max.
- LPF 50-150 Hz
- Bass Boost 0-12dB @ 45 Hz
- Subsonic 25 Hz fixed
- Phase Shift 0/180°
- RCA Inputs
- Auto Turn-On Function
- High Level Inputs
- Removable Connectors
- Bass Remote Controller
- Dimensions Ø 500 x 150 mm
Technical overview
Driver & acoustic data
- Driver size
- Spare Wheel
Enclosure & installation
Controls & inputs
- Low-pass filter
- 150 Hz
- Bass boost
- 12dB @ 45 Hz
Downloads
Need system-matching help?
Ask before ordering if the power, impedance or enclosure requirements are unclear.
Send the amplifier, available space and the subwoofer you are considering. We’ll reply in writing.
