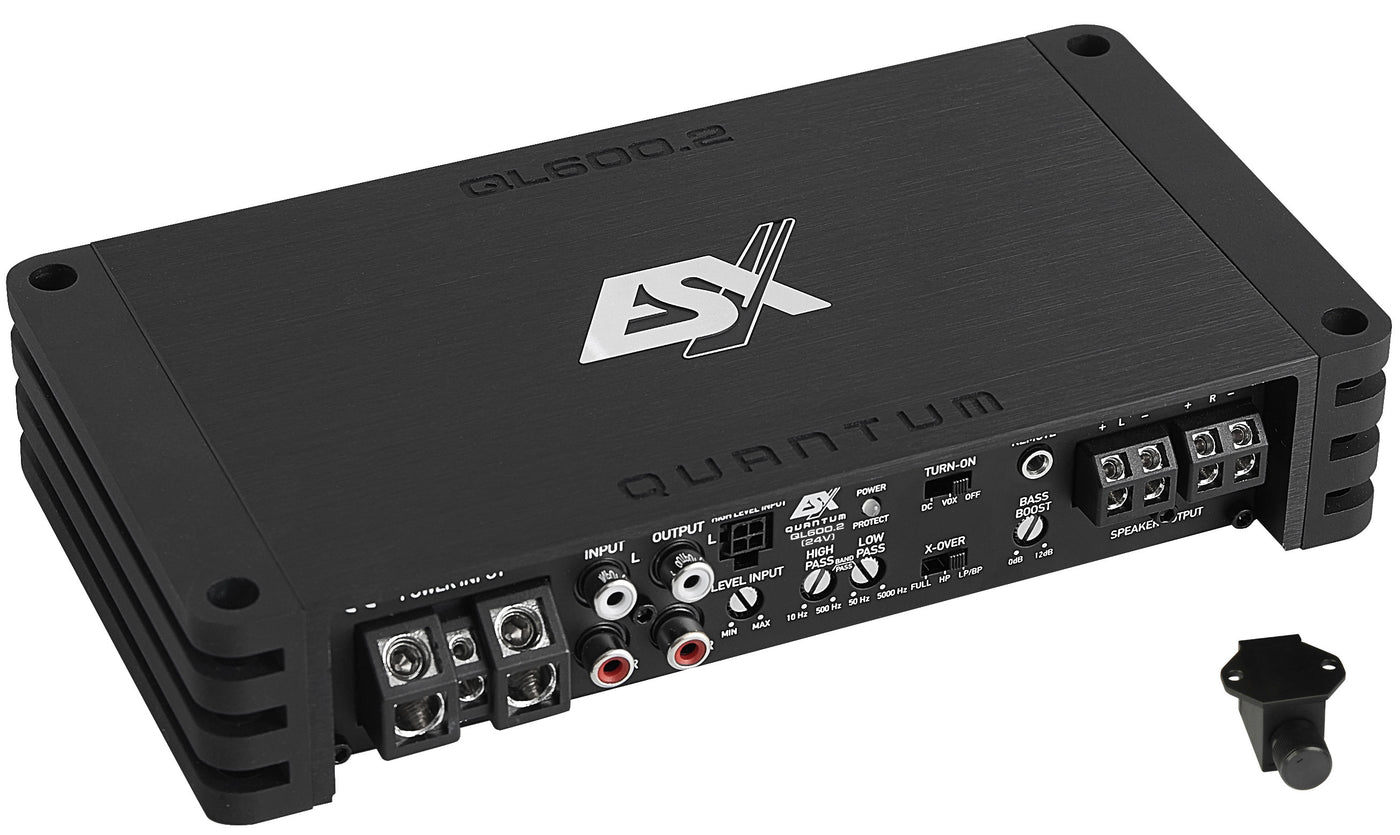

ESX QL600.2-24V 2-Channel Class D Amplifier

24v Range

£259.99
Available to order
24v Range 2 Channel SKU QL600.2-24V Manual included
Fitment System planning support
Tech specs Shown below
Manuals/downloads Download linked
Warranty Manufacturer backed
Plan the system before checkout Check channel layout, power, impedance and DSP requirements before choosing wiring or speakers.
Why choose this product?
The ESX QL600.2-24V is a QUANTUM QL 2-channel Class D amplifier for 24 volt truck and coach electrical systems, with 600W bridged RMS output, EPS high-level inputs, Auto Turn-On, Start/Stop readiness and compact bass remote control in a space-saving chassis.
Why choose the ESX QL600.2-24V
24V QUANTUM QL 2-channel Class D amplifier with 2 x 300W RMS at 2 ohm, 600W bridged output, EPS high-level inputs, Auto Turn-On, Start/Stop readiness, MOSFET PWM power supply, 3-way protection, adjustable HPF/LPF filters, Bass Boost, Bandpass Function and compact bass remote controller.
Technical specifications
Amplifier type: 2-channel Class D digital amplifier Vehicle voltage: 24V truck and coach electrical systems Power output: 2 x 175W RMS at 4 ohm; 2 x 300W RMS at 2 ohm Bridged output: 1 x 600W RMS at 4 ohm Inputs: EPS high-level inputs Auto turn-on: Yes Start/Stop ready: Yes Crossover: HPF 10-500 Hz; LPF 50-5000 Hz; Bandpass Function Bass boost: 0-12 dB Bass remote: compact bass remote controller Power supply: MOSFET PWM with 3-way protection circuit Dimensions: 226 x 43 x 120 mm Efficiency: up to 87%
Compatibility and support

For vehicle-specific advice, send your vehicle make, model, year, current factory audio setup and what you want to improve.

We reply by email or WhatsApp so you have the recommendation in writing.

Downloads
Download owner manual Manufacturer documentation supplied where available.

Need fitment help?

Ask before ordering if the vehicle, wiring or DSP setup is unclear.

Send the make, model, year, factory audio setup and what you want to improve. We’ll reply in writing so you have the advice to refer back to.
