ESX Audio

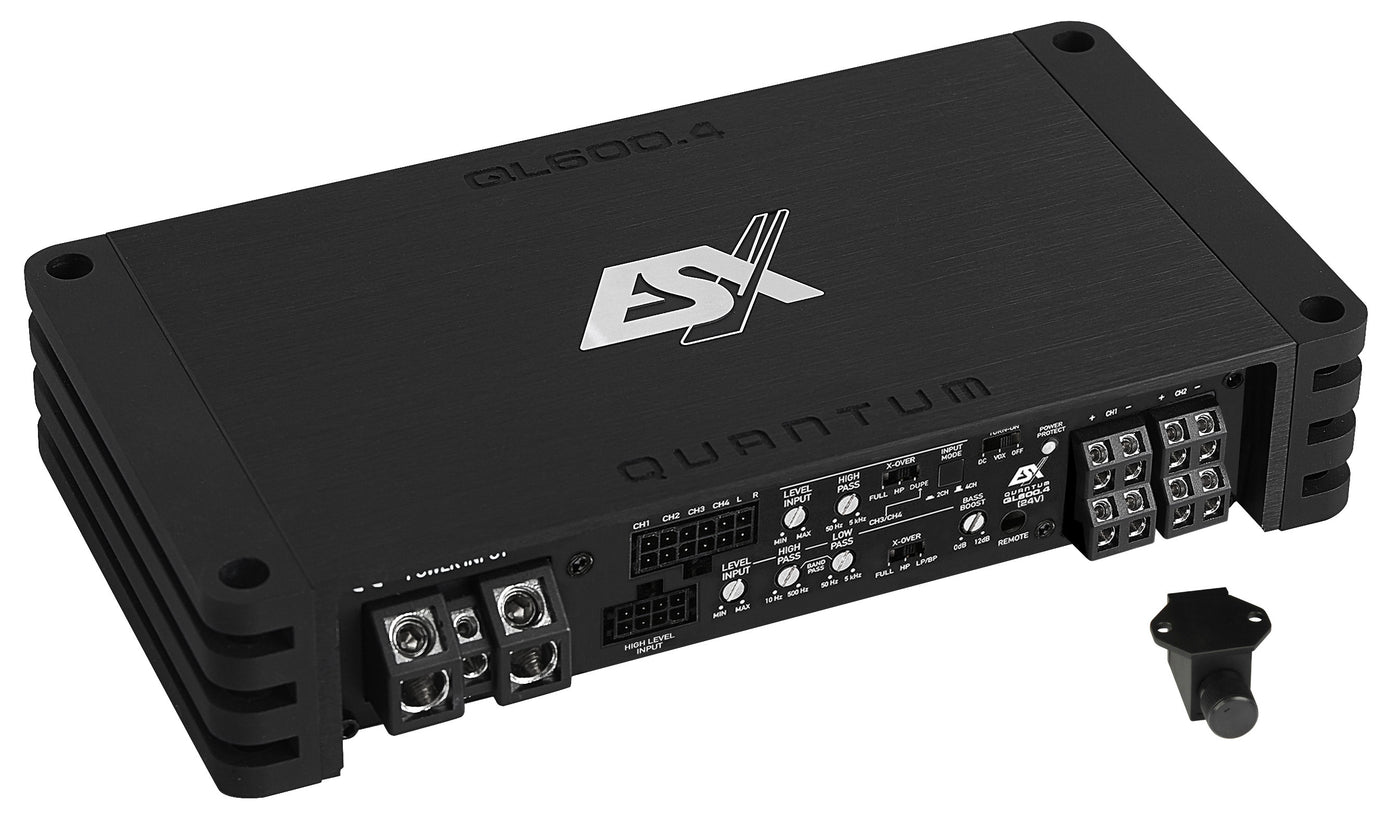

ESX QL600.4-24V 4-Channel Class D Amplifier
24v Range
£259.99
Available to order
24v Range
4 Channel
SKU QL600.4-24V
Manual included
Fitment
System planning support
Tech specs
Shown below
Manuals/downloads
Download linked
Warranty
Manufacturer backed
Plan the system before checkout
Check channel layout, power, impedance and DSP requirements before choosing wiring or speakers.
Why choose this product?
The ESX QL600.4-24V is a QUANTUM QL 4-channel Class D amplifier for 24 volt truck and coach electrical systems, with 4 x 170W RMS at 2 ohm, 2 x 340W bridged output, flexible HPF/LPF filtering, Copy Mode, Input Selector, Bass Boost and a compact 226 x 43 x 120 mm chassis.
Why choose the ESX QL600.4-24V
24V QUANTUM QL 4-channel Class D amplifier with 4 x 170W RMS at 2 ohm, 2 x 340W bridged output, flexible HPF/LPF filters, Copy Mode CH3/4 to CH1/2, Input Selector, Bass Boost, Bandpass Function, space-saving remote control and compact 226 x 43 x 120 mm chassis.
Technical specifications
Amplifier type: 4-channel Class D digital amplifier
Vehicle voltage: 24V truck and coach electrical systems
Power output: 4 x 100W RMS at 4 ohm; 4 x 170W RMS at 2 ohm
Bridged output: 2 x 340W RMS at 4 ohm
Crossover: HPF CH1/2 50-5000 Hz; HPF CH3/4 10-500 Hz; LPF CH3/4 50-5000 Hz; Bandpass Function
Channel routing: Copy Mode CH3/4 to CH1/2; Input Selector
Bass boost: 0-12 dB
Remote control: space-saving remote control
Dimensions: 226 x 43 x 120 mm
Efficiency: up to 86%
Compatibility and support
For vehicle-specific advice, send your vehicle make, model, year, current factory audio setup and what you want to improve.
We reply by email or WhatsApp so you have the recommendation in writing.
Downloads
Download owner manual
Manufacturer documentation supplied where available.
Need fitment help?
Ask before ordering if the vehicle, wiring or DSP setup is unclear.
Send the make, model, year, factory audio setup and what you want to improve. We’ll reply in writing so you have the advice to refer back to.
