ESX QUANTUM Coax 16,5 cm QXE-62v2
Coaxial Speaker
Why choose this product?

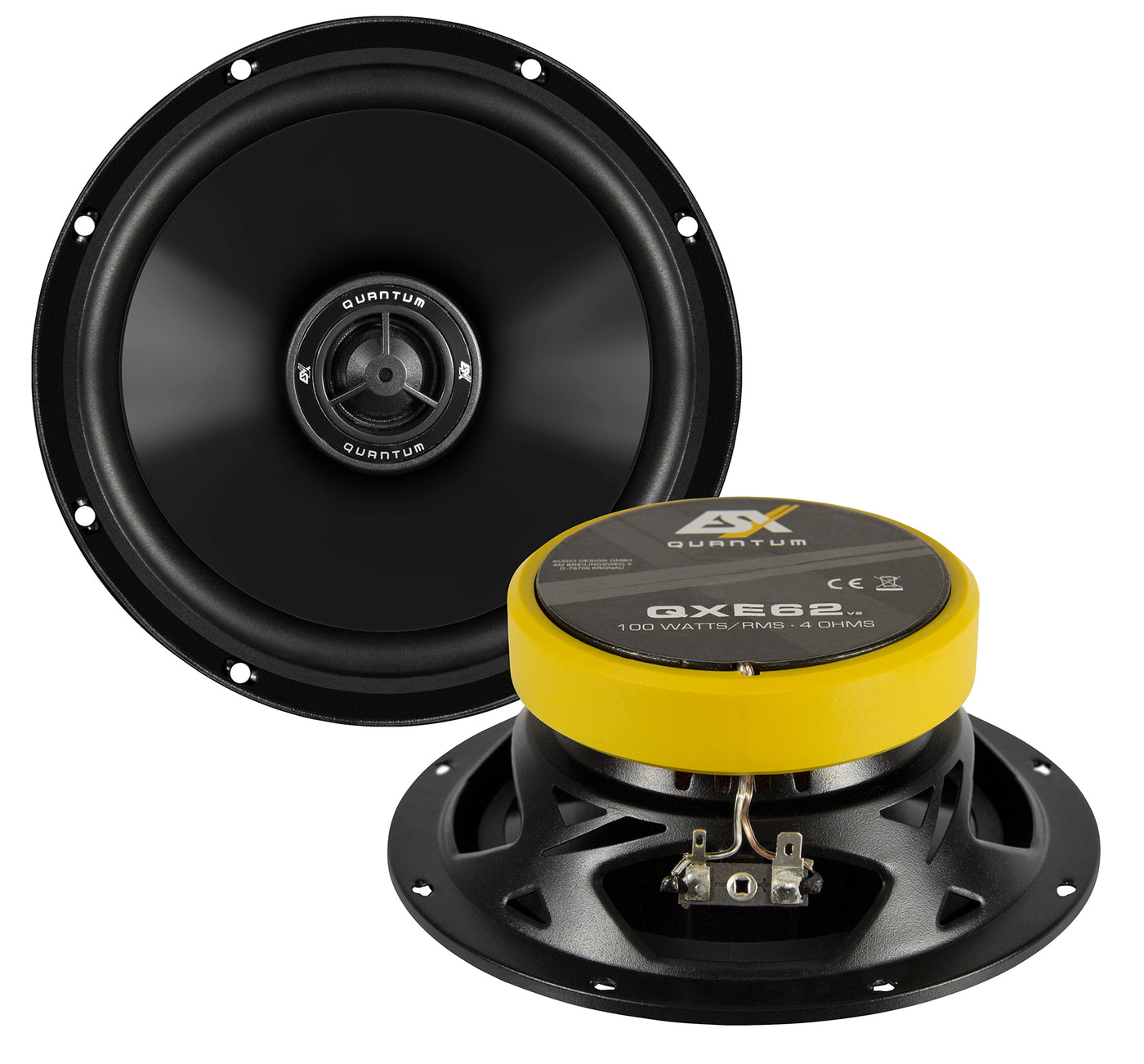

The ESX QUANTUM QXE62V2 is a 16.5 cm / 6.5 inch 2-way coaxial speaker pair from the QUANTUM series.
It combines a 16.5 cm midbass driver with a 20 mm silk dome neodymium tweeter, designed for strong efficiency and a crisp coaxial speaker upgrade where the fitment dimensions suit the vehicle or custom install.
Key specifications
- 16.5 cm (6.5") 2-Way Coaxial Speakers (Pair)
- Power Rating 100 Watt/RMS, 200 Watt/Max.
- Frequency Range 55 - 22000 Hz
- Impedance 4 Ω
- Polypropylene Graphite Cones
- 30.5 mm Voice Coils on Capton Former
- 17 oz. / 482 g Magnet Drivers (Y30)
- 20 mm Silk Dome Neodymium Tweeters
- Installation depth 64 mm
- Installation diameter 143 mm
Why choose this product?
The ESX QUANTUM QXE62V2 is a 16.5 cm / 6.5 inch 2-way coaxial speaker pair from the QUANTUM series.
It combines a 16.5 cm midbass driver with a 20 mm silk dome neodymium tweeter, designed for strong efficiency and a crisp coaxial speaker upgrade where the fitment dimensions suit the vehicle or custom install.
Key specifications
- 16.5 cm (6.5") 2-Way Coaxial Speakers (Pair)
- Power Rating 100 Watt/RMS, 200 Watt/Max.
- Frequency Range 55 - 22000 Hz
- Impedance 4 Ω
- Polypropylene Graphite Cones
- 30.5 mm Voice Coils on Capton Former
- 17 oz. / 482 g Magnet Drivers (Y30)
- 20 mm Silk Dome Neodymium Tweeters
- Installation depth 64 mm
- Installation diameter 143 mm
Technical overview
Power & electrical
- Nominal impedance
- 4 ohms
Acoustic & construction
- Frequency response
- 55 - 22000 Hz
- Driver size
- 16.5 cm (6.5 inch)
- Speaker type
- 2-way coaxial speaker pair
- Voice coil
- 30.5 mm on Capton former
- Material
- Polypropylene graphite
Installation
- Mounting depth
- 64 mm
- Cut-out / installation diameter
- 143 mm
Compatibility and support
Confirm the available mounting depth, cut-out diameter, grille clearance and amplifier power before ordering. We reply by email or WhatsApp so you have the recommendation in writing.
Downloads
Need installation help?
Ask before ordering if the speaker size, depth or wiring is unclear.
Send the product you are replacing, the available mounting depth and any adapter or grille details. We’ll reply in writing.
