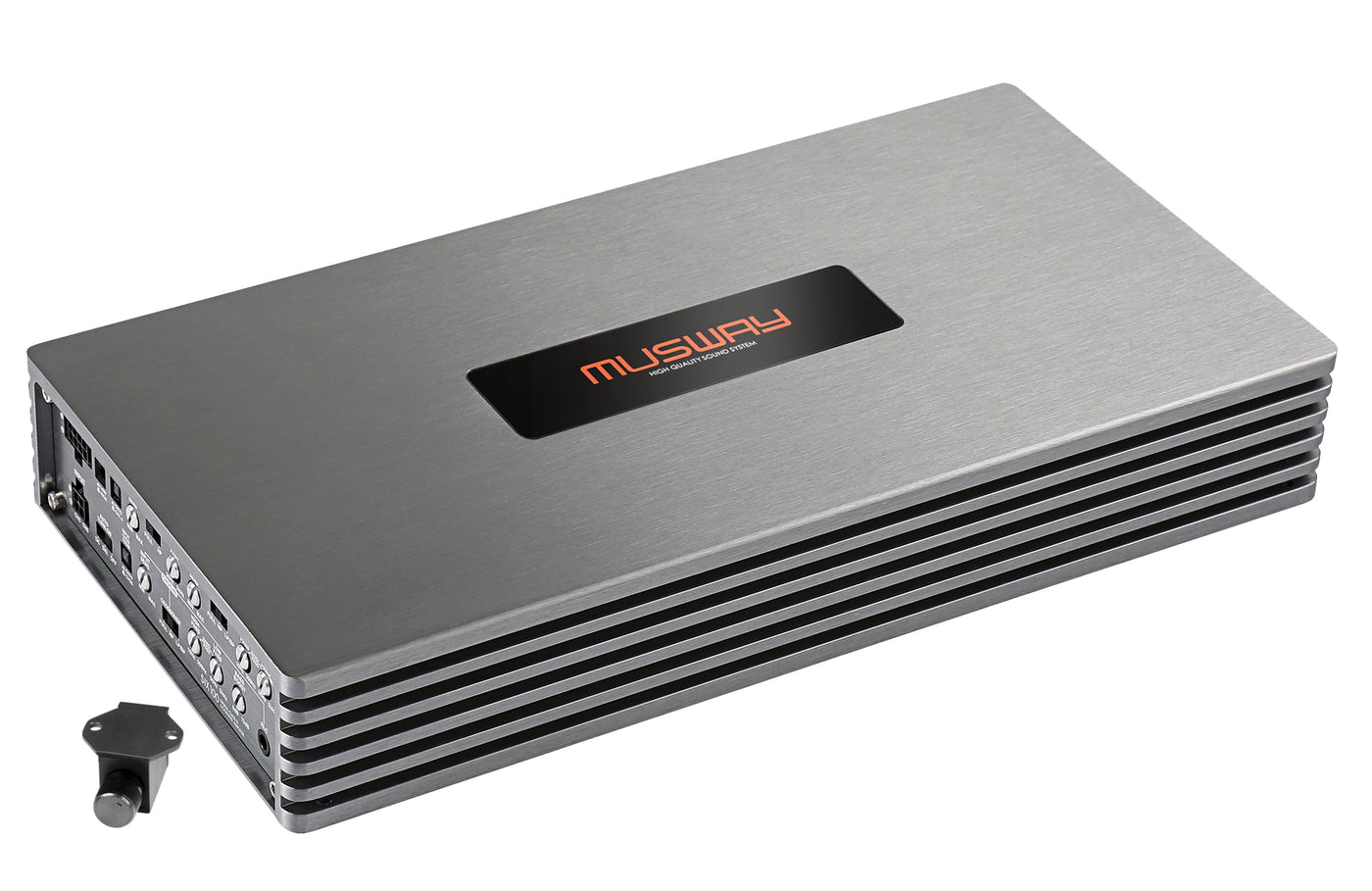

MUSWAY SIX100 6-Channel Class D Amplifier

Overview & features

The MUSWAY SIX100 6-Channel Class D Amplifier is a MUSWAY amplifier for multi-channel system builds that need clean power in a tidy installation. It is suited to builds needing class d, high level input, remote control.

Use the feature and technical specification sections below to compare channels, RMS output, impedance support, tuning options and installation details before ordering. Key installation details and specifications are listed below.

Download the SIX100 owner manual

Key Features

• Start-Stop ready, Auto Turn-On
• EPS ® (Error Protection System)
• Interference Free Technology, EMC proved
• Brushed aluminum heat sink and end panels
• Compact Bass Level Remote Controller

Power Ratings

• 6 x 110/180 Watts RMS @ 4/2 Ohms
• 3 x 360 Watts RMS @ 4 Ohms bridged

DSP & Tuning

• Compact Bass Level Remote Controller
• Highpass Filter 50 - 5000 Hz (CH1/2)
• Highpass Filter 10 - 500 Hz (CH3/4 & CH5/6)
• Lowpass Filter 50 - 5000 Hz (CH3/4 & CH5/6)
• Bass Remote Controller

Inputs & Outputs

• High and Low Level Inputs
• RCA Inputs, RCA Outputs
• High Level Inputs with EPS ®

Dimensions & Installation

• Start-Stop ready, Auto Turn-On
• Dimensions: 150 x 45 x 290 mm

Additional specifications

Bass boost

12 dB (CH5/6)

Downloads

MUSWAY SIX100 user manual MUSWAY SIX100 user manual MUSWAY SIX100 manual
