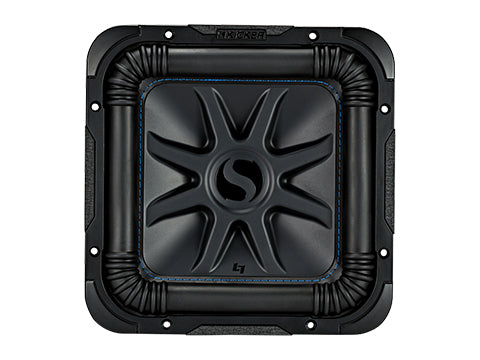

Kicker

10" Solo-Baric L7S 4 Ohm

Subwoofer Driver

£279.95
Available to order
Subwoofer driver 10, 25.4 4 DVC SKU 44L7S104 Verified downloads
Why choose this product?
The KICKER Solo-Baric L7S is the original square sub. It handles plenty of power with special thermal management systems. You get tons of bass without distortion or compromising on sound quality. The Solo-Baric's cutting-edge, square-sub design means more cone area, more air displacement and more volume than a round woofer. Want setup help? Go to KICKER U for a free woofer & amplifier configuration app! *The Solo-Baric L7S 10-Inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for more details.
Why choose this product?
The KICKER Solo-Baric L7S is the original square sub. It handles plenty of power with special thermal management systems. You get tons of bass without distortion or compromising on sound quality. The Solo-Baric's cutting-edge, square-sub design means more cone area, more air displacement and more volume than a round woofer. Want setup help? Go to KICKER U for a free woofer & amplifier configuration app! *The Solo-Baric L7S 10-Inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for more details.
Manufacturer features
  • Thiele/Small Parameters: 44L7S104 T/S Parameters
  • Product Dimension Sheet: 44L7S104 Dimensions
  • CNC Software: L7S-L7R.DXF - for subwoofer hole cutouts
  • 3D Printing Software: L7S-L7R.SLDPRT - 3D-printing of grille spacers
  • Size (IN.,CM): 10, 25.4
  • Impedance (OHMS): 4 DVC
  • Recommended Amplifier Power (watts RMS): 600
  • Peak Power (watts, per ANSI/CTA-2031-A): 1200
  • Sensitivity (dB 1w/1m): 86.8
  • Frequency Response (Hz): 24-100
  • Mounting Depth (IN.,CM): 6-1/4, 15.9
  • Mounting Cutout, Square (IN.,CM): 9-5/16, 23.7
  • Min Rec Sealed Box Volume (CU. FT., Liters): 1.0, 28.32
  • Max Rec Sealed Box Volume (CU. FT., Liters): 1.25, 35.4
  • Min Rec Vented Box Volume (CU. Ft., Liters)**: 1.25, 35.4
  • Max Rec Vented Box Volume (CU. Ft., Liters)**: 2.25, 63.8
  • What's in the box?: one 10-inch subwoofer, one owner's manual, two stickers
  • Warranty: When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.
Technical overview

Power & electrical

Maximum power
2031-A): 1200
Nominal impedance
4 DVC
Sensitivity
86.8

Driver & acoustic data

Frequency response
24-100
Driver size
10, 25.4

Enclosure & installation

Dimensions
44L7S104 Dimensions
Mounting depth
6-1/4, 15.9
Cut-out / installation diameter
9-5/16, 23.7
Recommended enclosure
1.0, 28.32
Downloads
10" Solo-Baric L7S 4 Ohm document10" Solo-Baric L7S 4 Ohm document

Need system-matching help?

Ask before ordering if the power, impedance or enclosure requirements are unclear.

Send the amplifier, available space and the subwoofer you are considering. We’ll reply in writing.

WhatsApp matching helpEmail us
10" Solo-Baric L7S 4 Ohm £279.95
