Kicker

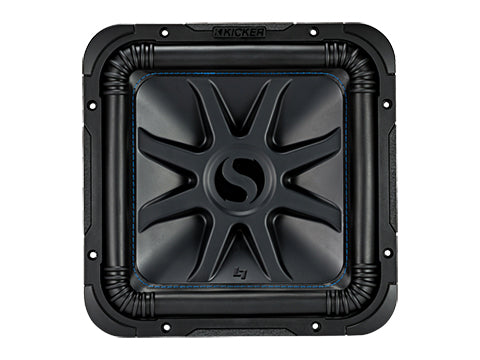

12" Solo-Baric L7S 2 Ohm

Subwoofer Driver

£349.95
Available to order
Subwoofer driver 12, 30.5 2 DVC SKU 44L7S122 Verified downloads
Why choose this product?
The KICKER Solo-Baric L7S has a unique cone structure and heat dissipation system for outstanding power handling and unsurpassed clarity. The Solo-Baric L7's highly-engineered motor structure and square sub design promises dependability when pushed to the limit, while dual voice coils with high-temp copper windings easily handle intense heat and power levels for clean, clear bass anytime. Want setup help? Go to KICKER U for a free woofer & amplifier configuration app! *The Solo-Baric L7S 12-Inch Subwoofer works best with a sealed or ported enclosure and 750 watts of recommended power. See below for more details.
Why choose this product?
The KICKER Solo-Baric L7S has a unique cone structure and heat dissipation system for outstanding power handling and unsurpassed clarity. The Solo-Baric L7's highly-engineered motor structure and square sub design promises dependability when pushed to the limit, while dual voice coils with high-temp copper windings easily handle intense heat and power levels for clean, clear bass anytime. Want setup help? Go to KICKER U for a free woofer & amplifier configuration app! *The Solo-Baric L7S 12-Inch Subwoofer works best with a sealed or ported enclosure and 750 watts of recommended power. See below for more details.
Manufacturer features
  • Thiele/Small Parameters: 44L7S122 T/S Parameters
  • Product Dimension Sheet: 44L7S122 Dimensions
  • CNC Software: L7S-L7R.DXF - for subwoofer hole cutouts
  • 3D Printing Software: L7S-L7R.SLDPRT - 3D-printing of grille spacers
  • Size (IN.,CM): 12, 30.5
  • Impedance (OHMS): 2 DVC
  • Recommended Amplifier Power (watts RMS): 750
  • Peak Power (watts, per ANSI/CTA-2031-A): 1500
  • Sensitivity (dB 1w/1m): 88.6
  • Frequency Response (Hz): 20-100
  • Mounting Depth (IN.,CM): 6-11/16, 16.9
  • Mounting Cutout, Square (IN.,CM): 11-1/16, 28.1
  • Min Rec Sealed Box Volume (CU. FT., Liters): 1.25, 35.4
  • Max Rec Sealed Box Volume (CU. FT., Liters): 2.0, 56.64
  • Min Rec Vented Box Volume (CU. Ft., Liters)**: 1.75, 49.6
  • Max Rec Vented Box Volume (CU. Ft., Liters)**: 3.25, 92.1
  • What's in the box?: one 12-inch subwoofer, one owner's manual, two stickers
  • Warranty: When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.
Technical overview

Power & electrical

Maximum power
2031-A): 1500
Nominal impedance
2 DVC
Sensitivity
88.6

Driver & acoustic data

Frequency response
20-100
Driver size
12, 30.5

Enclosure & installation

Dimensions
44L7S122 Dimensions
Mounting depth
6-11/16, 16.9
Cut-out / installation diameter
11-1/16, 28.1
Recommended enclosure
1.25, 35.4
Downloads
12" Solo-Baric L7S 2 Ohm document12" Solo-Baric L7S 2 Ohm document

Need system-matching help?

Ask before ordering if the power, impedance or enclosure requirements are unclear.

Send the amplifier, available space and the subwoofer you are considering. We’ll reply in writing.

WhatsApp matching helpEmail us
