Kicker

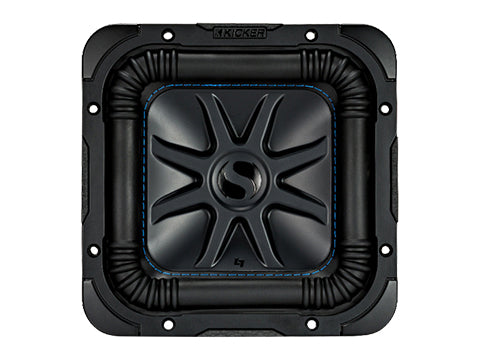

8" Solo-Baric L7S 4 Ohm

Subwoofer Driver

£209.95
Available to order
Subwoofer driver 8, 20.32 4 DVC SKU 44L7S84 Verified downloads
Why choose this product?
The KICKER Solo-Baric L7S features cutting-edge technology for truly musical, distortion-free bass. The Solo-Baric's cutting-edge, square-sub design means more cone area, more air displacement and more volume than a round woofer. Want setup help? Go to KICKER U for a free woofer & amplifier configuration app! *The Solo-Baric L7S 8-Inch Subwoofer works best with a sealed or ported enclosure and 450 watts of recommended power. See below for more details.
Why choose this product?
The KICKER Solo-Baric L7S features cutting-edge technology for truly musical, distortion-free bass. The Solo-Baric's cutting-edge, square-sub design means more cone area, more air displacement and more volume than a round woofer. Want setup help? Go to KICKER U for a free woofer & amplifier configuration app! *The Solo-Baric L7S 8-Inch Subwoofer works best with a sealed or ported enclosure and 450 watts of recommended power. See below for more details.
Manufacturer features
  • Thiele/Small Parameters: 44L7S84 T/S Parameters
  • Product Dimension Sheet: 44L7S84 Dimensions
  • CNC Software: L7S-L7R.DXF - for subwoofer hole cutouts
  • 3D Printing Software: L7S-L7R.SLDPRT - 3D-printing of grille spacers
  • Size (IN.,CM): 8, 20.32
  • Impedance (OHMS): 4 DVC
  • Recommended Amplifier Power (watts RMS): 450
  • Peak Power (watts, per ANSI/CTA-2031-A): 900
  • Sensitivity (dB 1w/1m): 83.6
  • Frequency Response (Hz): 28-100
  • Mounting Depth (IN.,CM): 4-3/4, 12.1
  • Mounting Cutout, Square (IN.,CM): 7-1/4, 18.4
  • Min Rec Sealed Box Volume (CU. FT., Liters): .5, 14.16
  • Max Rec Sealed Box Volume (CU. FT., Liters): .75, 21.24
  • Min Rec Vented Box Volume (CU. Ft., Liters)**: .66, 18.6
  • Max Rec Vented Box Volume (CU. Ft., Liters)**: 1.0, 28.3
  • What's in the box?: one 8-inch subwoofer, one owner's manual, two stickers
  • Warranty: When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.
Technical overview

Power & electrical

Maximum power
2031-A): 900
Nominal impedance
4 DVC
Sensitivity
83.6

Driver & acoustic data

Frequency response
28-100
Driver size
8, 20.32

Enclosure & installation

Dimensions
44L7S84 Dimensions
Mounting depth
4-3/4, 12.1
Cut-out / installation diameter
7-1/4, 18.4
Recommended enclosure
.5, 14.16
Downloads
8" Solo-Baric L7S 4 Ohm document8" Solo-Baric L7S 4 Ohm document

Need system-matching help?

Ask before ordering if the power, impedance or enclosure requirements are unclear.

Send the amplifier, available space and the subwoofer you are considering. We’ll reply in writing.

WhatsApp matching helpEmail us
8" Solo-Baric L7S 4 Ohm £209.95
