ESX Audio

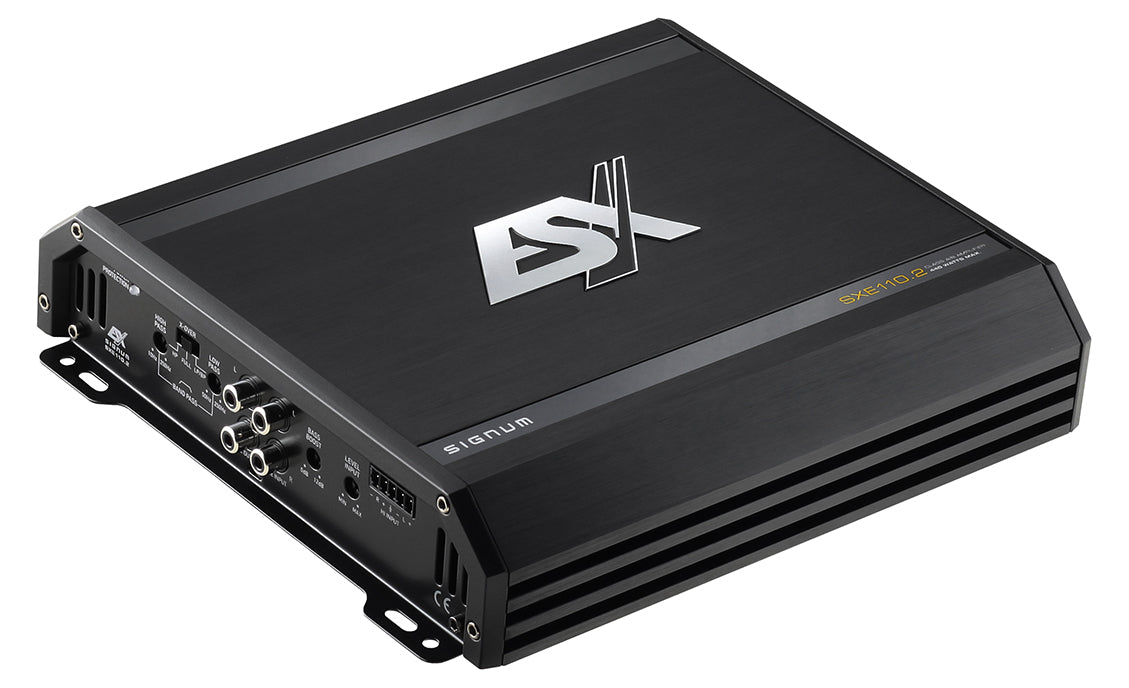

ESX SXE110.2 2-Channel Class A/B Amplifier
2-Channel
£109.99
Available to order
2-Channel
2 Channel
SKU SXE110.2
Manual included
Fitment
System planning support
Tech specs
Shown below
Manuals/downloads
Download linked
Warranty
Manufacturer backed
Plan the system before checkout
Check channel layout, power, impedance and DSP requirements before choosing wiring or speakers.
Why choose this product?
The ESX SXE110.2 is a SIGNUM SXE 2-channel Class A/B amplifier with bridged output capability, EPS high-level inputs, Auto Turn-On, adjustable HPF/LPF filters, Bass Boost and Bandpass Mode in a compact analog chassis.
Why choose the ESX SXE110.2
2-channel Class A/B SIGNUM amplifier with 2 x 110W RMS at 2 ohm, 220W bridged output, EPS high-level inputs, Auto Turn-On, MOSFET PWM power supply, 3-way protection, adjustable HPF/LPF filters, Bass Boost and Bandpass Mode.
Technical specifications
Amplifier type: 2-channel Class A/B analog amplifier
Power output: 2 x 70W RMS at 4 ohm; 2 x 110W RMS at 2 ohm
Bridged output: 1 x 220W RMS at 4 ohm
High-level input: EPS high-level inputs
Auto turn-on: via high-level inputs
Crossover: HPF 10-250 Hz; LPF 50-250 Hz; Bandpass Mode
Bass Boost: 0-12 dB
Power/protection: MOSFET PWM power supply; 3-way protection circuit
Mounting: bottom panel with sturdy mounting brackets
Dimensions: 220 x 53 x 248 mm
Efficiency: up to 62%
Compatibility and support
For vehicle-specific advice, send your vehicle make, model, year, current factory audio setup and what you want to improve.
We reply by email or WhatsApp so you have the recommendation in writing.
Downloads
Download owner manual
Manufacturer documentation supplied where available.
Need fitment help?
Ask before ordering if the vehicle, wiring or DSP setup is unclear.
Send the make, model, year, factory audio setup and what you want to improve. We’ll reply in writing so you have the advice to refer back to.
