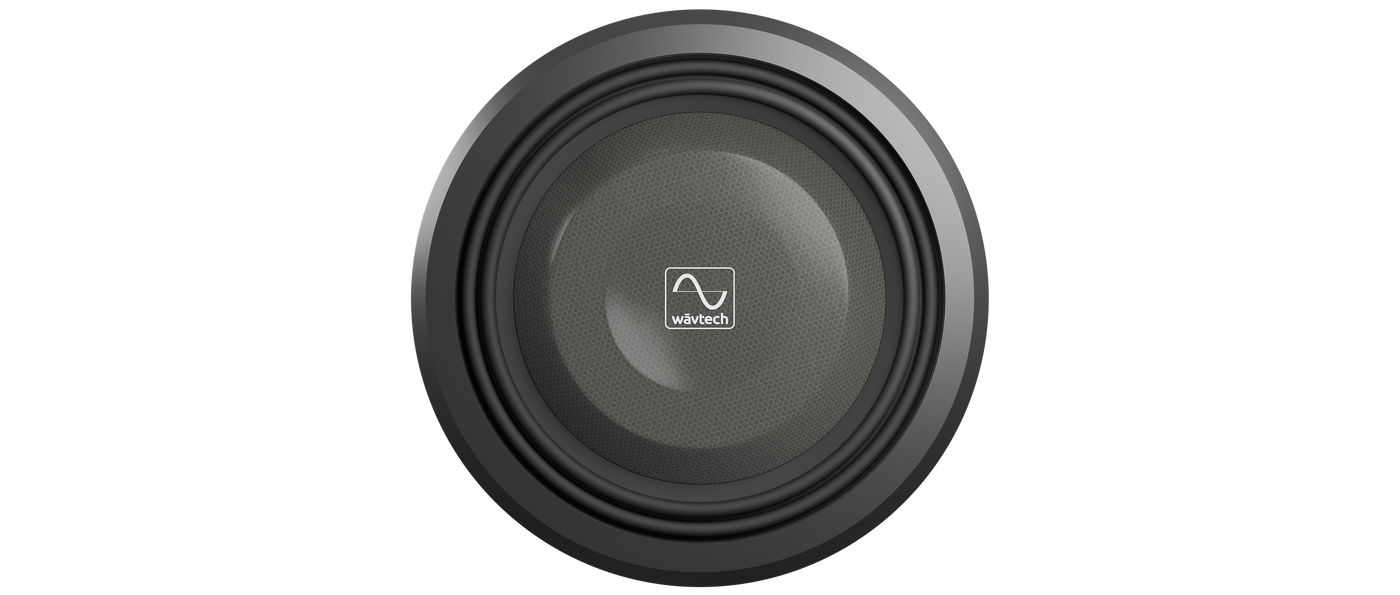

thinPRO12 2 Ohm

The thinPRO12 has a mounting depth of just 3”, so it is really thin, but it does not perform like a shallow subwoofer. Our Patent Pending design allows for some big performance advantages. The dual mirrored NBR spiders and axial force transfer assembly acheive over 2-inches of peak to peak excursion. Some popular models that are 10” deep don’t have this much excursion. This is unheard of in a shallow subwoofer.

The point of a shallow subwoofer is to fit places others won’t. If it doesn’t work in a small box, what’s the point. The thinPRO12 excels in both small sealed and ported enclosures. In sealed applications, box sizes range from 0.4-1.0cu ft, with the optimum being 0.6cu ft. Ported options range from 0.8-1.5cu ft, with 1.0cu ft being the ideal choice.

This is a shallow woofer, but it is big on performance. The 5” voice coil, available in 2 or 4 ohm, handles an impressive 750W RMS power, unheard of in a shallow subwoofer. The FEA optimized dual gap motor structure features a massive motor with double stacked strontium magnets. This maximizes flux density and control for an impressive 20mm of linear xmax. The cone is a honeycomb design, made of composite Nomex® and glass fiber. This makes it extremely strong and lightweight.

Features

• 12” Professional Series Shallow Subwoofer
• 3” Mounting Depth
• 5” Voice Coil
• 4-Layer Winding on Vented Polymide Composite Former
• Protective Grille (TP12G Sold Separately)
• Honeycomb Nomex® and Glass Fiber Cone
• FEA Optimized Dual-Gap Motor Structure
• Double-Roll NBR Surround
• Mirrored Internal NBR Spiders
• 8AWG Push Terminals
• Vented Cast Aluminum Frame
• Dimensions: 11 1/8in (282mm) Standard 12” cutout
