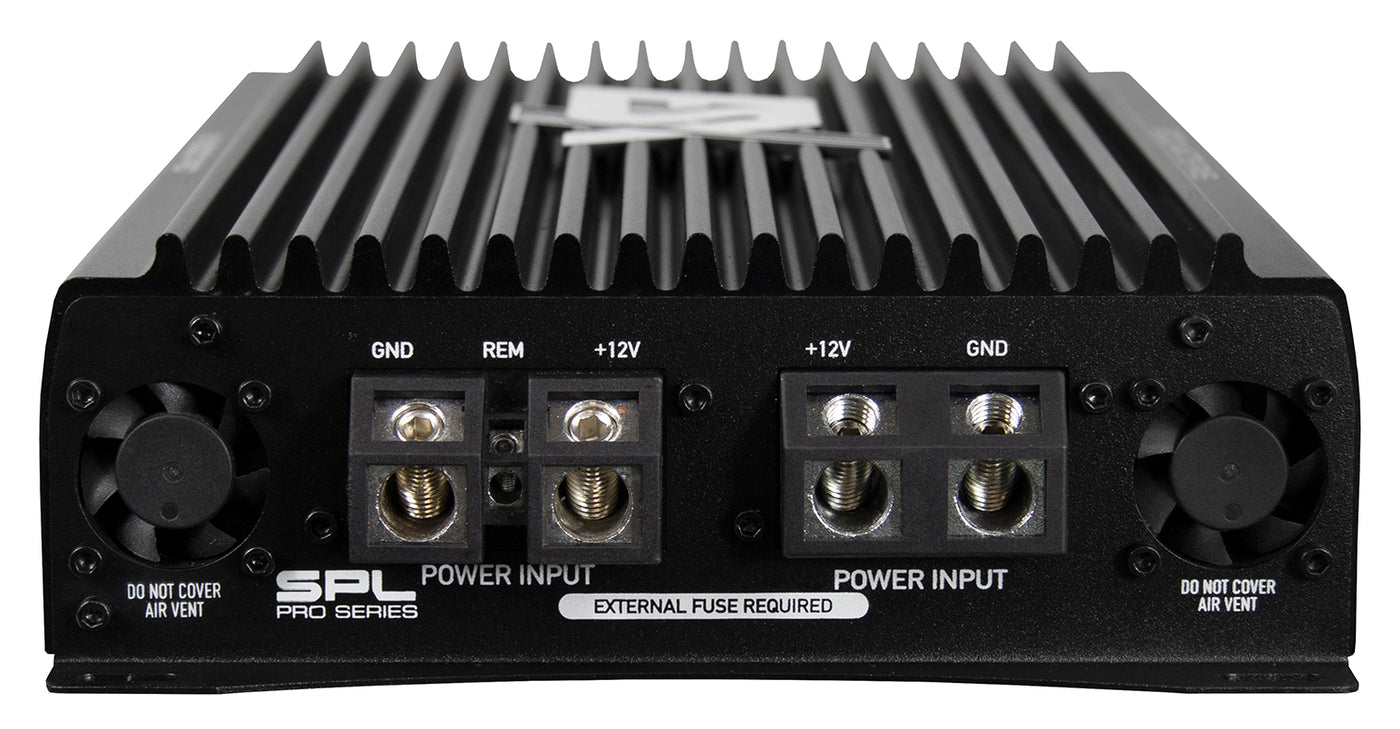

ESX Audio VX13000-PRO Mono Ultra Class D Digital Amplifier

DSP Amplifier

£1,359.99
Available to order

The ESX VISION VX13000-PRO is a mono Ultra Class D digital amplifier delivering up to 13,000 watts RMS at 1 ohm, with separate high- and low-level inputs for flexible system integration. Key specifications Mono Ultra Class D Digital Amplifier 1 x 3000/6500/13000...

At a glance SKU VX13000-PRO
Amplifier channels1 channel; 1 x 3000 W RMS @ 4 Ω; 1 x 6500 W RMS @ 2 Ω; 1 x 13000 W RMS @ 1 Ω
Amplifier classDigital Ultra Class D
Dimensions191 x 66 x 452 mm
Technical overview DSP platform and product features
Signal-to-noise ratio94 dB
Inputs3,6 V
System roleIntegrated amplifier stage
Overview & features

The ESX VISION VX13000-PRO is a mono Ultra Class D digital amplifier delivering up to 13,000 watts RMS at 1 ohm, with separate high- and low-level inputs for flexible system integration.

Key specifications

  • Mono Ultra Class D Digital Amplifier
  • 1 x 3000/6500/13000 Watts RMS @ 4/2/1 Ω
  • Subsonic 10-100 Hz
  • LPF 50-5000 Hz
  • Bass Boost 0-12 dB @ 30-70 Hz
  • RCA Low Level Input mono 0.4-3.6 V
  • RCA High Level Input mono 1.0-9.0 V
  • Dimensions 191 x 66 x 452 mm
  • Efficiency up to 86%

Manufacturer source: ESX product page
Manual: Owner's manual

Power & channels
Amplifier class
Digital Ultra Class D
Amplified channels
1 channel; 1 x 3000 W RMS @ 4 Ω; 1 x 6500 W RMS @ 2 Ω; 1 x 13000 W RMS @ 1 Ω
Technical overview
Frequency response
10-5,000 Hz (-3 dB)
Signal-to-noise ratio
94 dB
Total harmonic distortion
<0.05% THD+N
Inputs
3,6 V
Installation
Dimensions
191 x 66 x 452 mm
Additional specifications
Power / voltage
12 V vehicle electrical system; recommended fuse 3 x 100 A @ 4 Ω, 3 x 200 A @ 2 Ω, 3 x 300 A @ 1 Ω
Inputs / outputs
Mono RCA low-level input (0.4-3.6 V); mono RCA high-level input (1.0-9.0 V); mono speaker output
Low-pass filter
5000 Hz
Bass boost
12 dB @ 30 - 70 Hz
Downloads
VX13000 PRO manual
