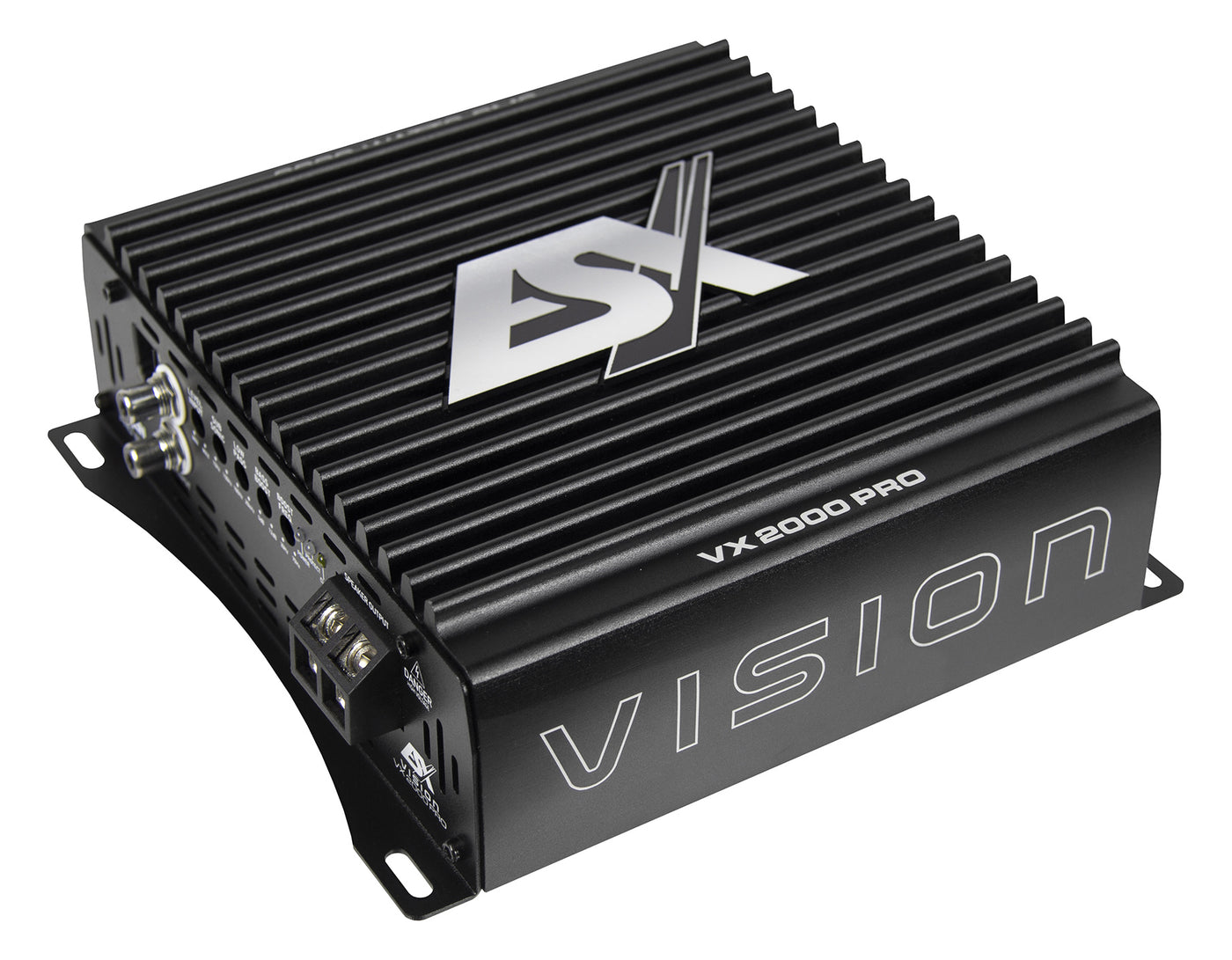

ESX VISION VX2000-PRO Mono Amplifier

The ESX VISION VX2000-PRO is a mono Class D amplifier for powering subwoofers where strong output, compact packaging, and high efficiency are needed.

The VX PRO mono amplifier range is built for serious bass systems, with separate high and low RCA input ranges to make level matching easier with different source units, DSPs, or high-low converters.

• Mono Ultra Class D digital amplifier
• 1 x 800 / 1500 / 2200 watts RMS at 4 / 2 / 1 ohm
• 1 ohm stable monoblock design
• Advanced Class D technology with very high efficiency
• Classically styled aluminium heatsink with optimal thermal properties
• Screw-type RCA jacks and massive power and speaker connections
• Clipping LED and 3-way protection circuit
• Subsonic filter: 10 - 100 Hz
• Low-pass filter: 50 - 20000 Hz
• Bass boost: 0 - 12 dB at 30 - 70 Hz
• RCA low level input: 0.4 - 3.6 V
• RCA high level input: 1.0 - 9.0 V
• Dimensions: 191 x 66 x 201 mm
• Efficiency up to 86%
