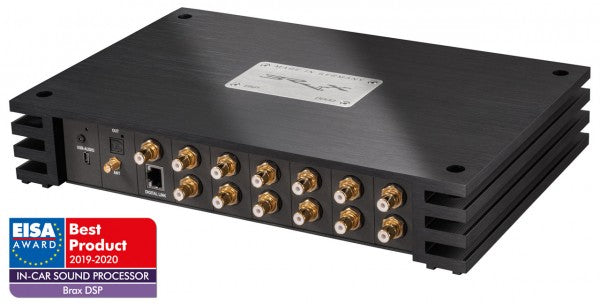

Build your BRAX DSP

Choose your input, output and BEC modules. See the total, then add your build to cart.

Build your DSP Manufacturer order sheet ↗

Hand-built to your agreed specification. Typical build time: 10 working days, plus delivery.

192 kHz signal path · up to 12 output channels

4stereo input slots

6stereo output slots

2extension-card slots

1integrated stereo SPDIF input path

Your signal architecture

Choose your module slots

The CORE has a selectable optical or coaxial stereo SPDIF input as standard. The four input and six output slots below are additional configurable positions. Each module serves a stereo pair.

Finish

Choose black or silver.

Black Silver

Input modules

Up to four additional stereo inputs. Analogue AKM takes RCA or high-level input. Digital SPDIF uses optical or coaxial on one selectable path.

Input 1 channels A/B Input 2 channels C/D Input 3 channels E/F Input 4 channels G/H

Output modules

Choose at least one stereo output. ESS and AKM provide RCA; digital SPDIF provides optical or coaxial output.

Output 1 channels A/B Output 2 channels C/D Output 3 channels E/F Output 4 channels G/H Output 5 channels I/J Output 6 channels K/L

Extension cards

Use up to two BEC slots for Bluetooth or USB audio. Remotes and other accessories are below.

BEC 1 BEC 2

Your system

Optional: tell us about your source, amplifiers and speakers. These notes stay with your order.

Vehicle, source unit and factory audio Amplifiers, speaker layout and anything we should consider

Optional extras

Add accessories

These are separate products. Add what you need directly to your cart.

CONDUCTOR · Control Input

One-touch DSP remote. Control Input version for the BRAX DSP CORE.

£109.99

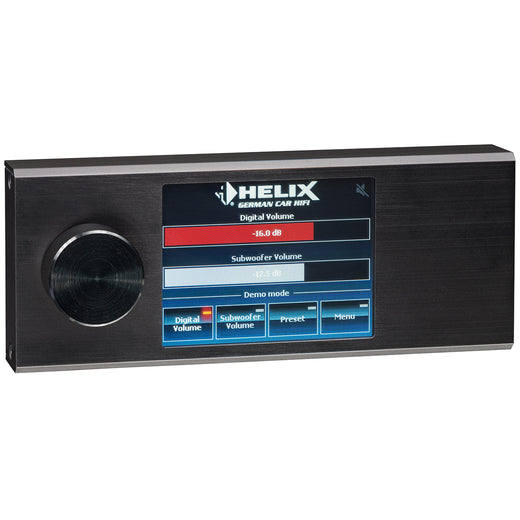

Audiotec Fischer DIRECTOR - Display Remote Control

DIRECTOR · Control Input

Touchscreen DSP remote. Control Input version for the BRAX DSP CORE.

£299.99

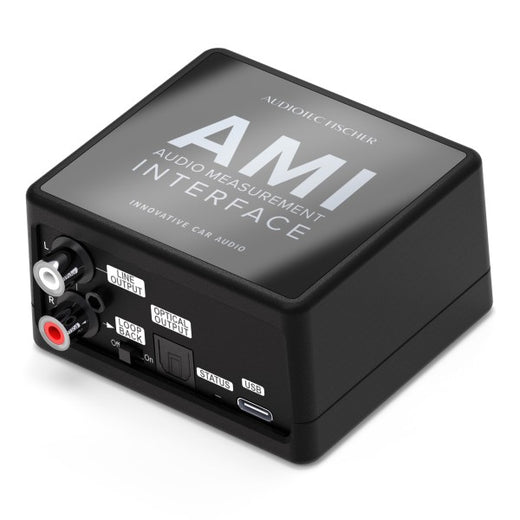

AMI

Audio Measurement Interface for DSP setup.

£169.99

BT HD STREAMER + hands-free kit

Bluetooth audio streamer with its matching hands-free microphone kit. Both items are added together.

£164.98

CORE

What’s included

The CORE chassis has one integrated stereo SPDIF input, two BEC slots and blank panels for unused module positions. Add at least one output module.

Built-in SPDIF input

One stereo path

The optical and coaxial connectors are alternatives, not separate inputs. An extra SPDIF module adds another stereo input path.

Documents

Specifications and order sheet

Manufacturer specifications ↗
Manufacturer order sheet ↗
