HELIX MATCH BRAX CONDUCTOR DSP Remote Control by Audiotec Fischer

DSP Accessory

£109.99
Available to order
DSP Remote Control DSP Accessory SKU H424479 Verified downloads
Why choose this product?

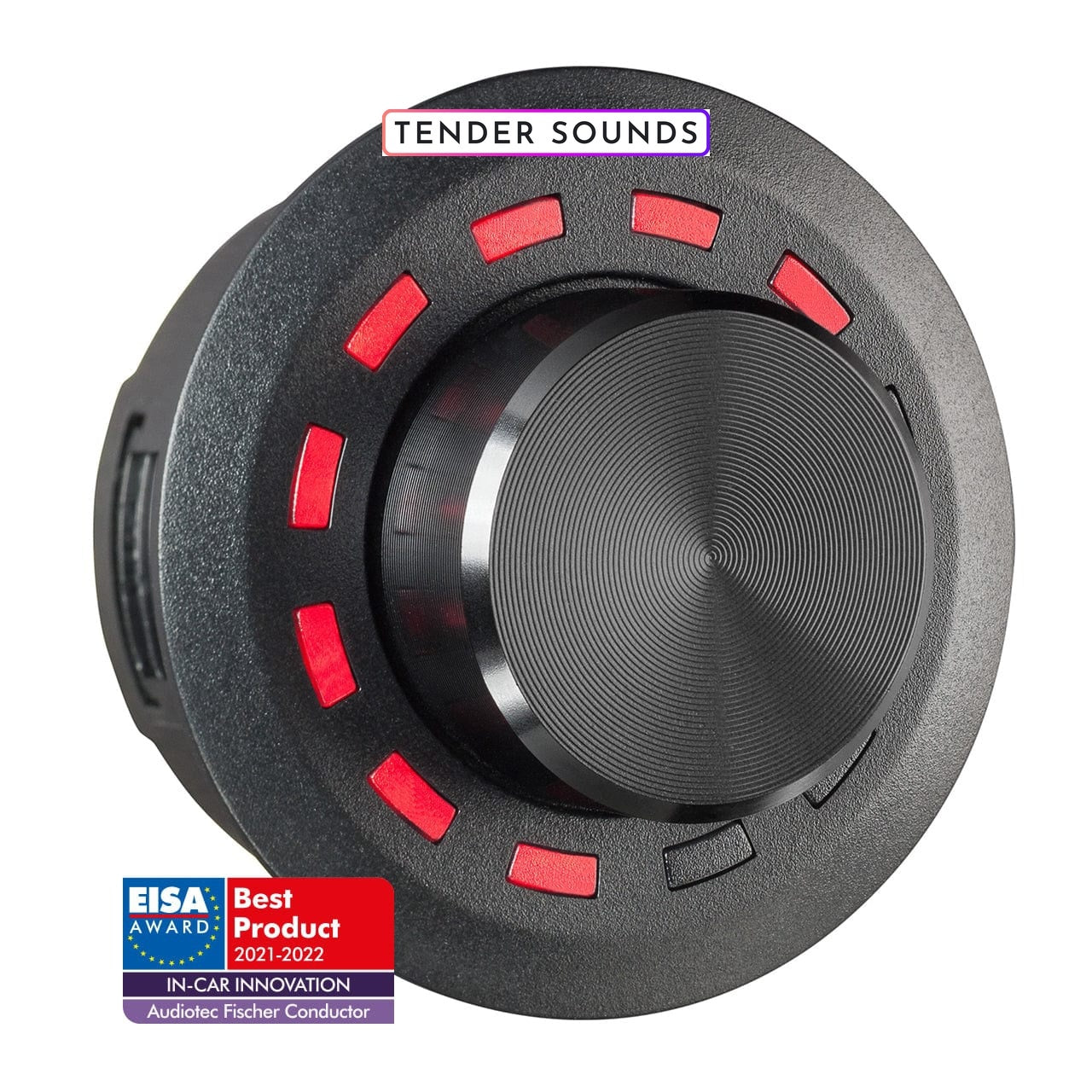

Audiotec Fischer CONDUCTOR is a compact one-touch remote control for compatible BRAX, HELIX and MATCH DSP systems. Use the rotary control for volume, source selection, sound-setup switching and supported Bluetooth playback functions.

It provides the same core control functions as the newer CONDUCTOR PRO at a lower price. Choose the PRO if you want ToneControl, a full aluminium body, a rubber-touch knob and its threaded rear mounting ring.

CONDUCTOR or CONDUCTOR PRO?

Feature CONDUCTOR CONDUCTOR PRO
Core DSP control Volume, source and up to 10 sound setups Volume, source and up to 10 sound setups
ToneControl No Yes, high and low adjustment from -6 dB to +6 dB
Housing and control ABS housing with machined aluminium knob Aluminium housing with ergonomic rubber-touch knob
Mounting Flush mount Flush mount with threaded rear mounting ring
Size Ø 46 x 28.7 mm; 17 mm installation depth Ø 46 x 36 mm; 18 mm installation depth
Connection options SCP or legacy Control Input, depending on selected version SCP only

In short: choose the standard CONDUCTOR for the same essential day-to-day DSP control in the more compact, lower-cost design. Choose CONDUCTOR PRO for premium materials, more secure rear-ring mounting and dashboard tone adjustment.

Key specifications

  • Control: up to four independently assigned volume menus with full system mute
  • Volume ranges: 60 dB, 24 dB or 12 dB; selectable 1 dB or 0.5 dB steps
  • Sound setups: switch between up to 10 presets and select signal sources
  • Display: 12 RGB LEDs with configurable colours, brightness and automatic dimming
  • Bluetooth control: play, pause, track navigation and pairing with a supported Bluetooth Extension Card
  • Housing: ABS with machined aluminium knob
  • Dimensions: Ø 46 x 28.7 mm
  • Installation depth: 17 mm
  • Cable: 5 m total for the SCP version; no separate power supply required

Choose the correct connection version

H424479 – SCP input: for compatible DSP products with Smart Control Port.

H424489 – Control Input: for older compatible products using the legacy Control Input. This version can connect to newer SCP devices using the separately available SCP-to-Control Input adaptor, part number M141313.

The CONDUCTOR cannot be combined with another control unit. Bluetooth control requires a supported DSP Bluetooth Extension Card; the BT HD STREAMER is excluded.

What is included

  • 1 x CONDUCTOR remote control
  • 1 x 4.8 m connection cable

Downloads

Audiotec Fischer CONDUCTOR / CONDUCTOR PRO manual (PDF)

Technical specifications
Inputs
Varies by variant: H424479 — SCP input; H424489 — Control input
Compatibility and support

For vehicle-specific advice, send your vehicle make, model, year, current factory audio setup and what you want to improve.

We reply by email or WhatsApp so you have the recommendation in writing.

Downloads
Audiotec Fischer CONDUCTOR PRO manual

Need fitment help?

Ask before ordering if the vehicle, wiring or DSP setup is unclear.

Send the make, model, year, factory audio setup and what you want to improve. We’ll reply in writing so you have the advice to refer back to.
