HELIX

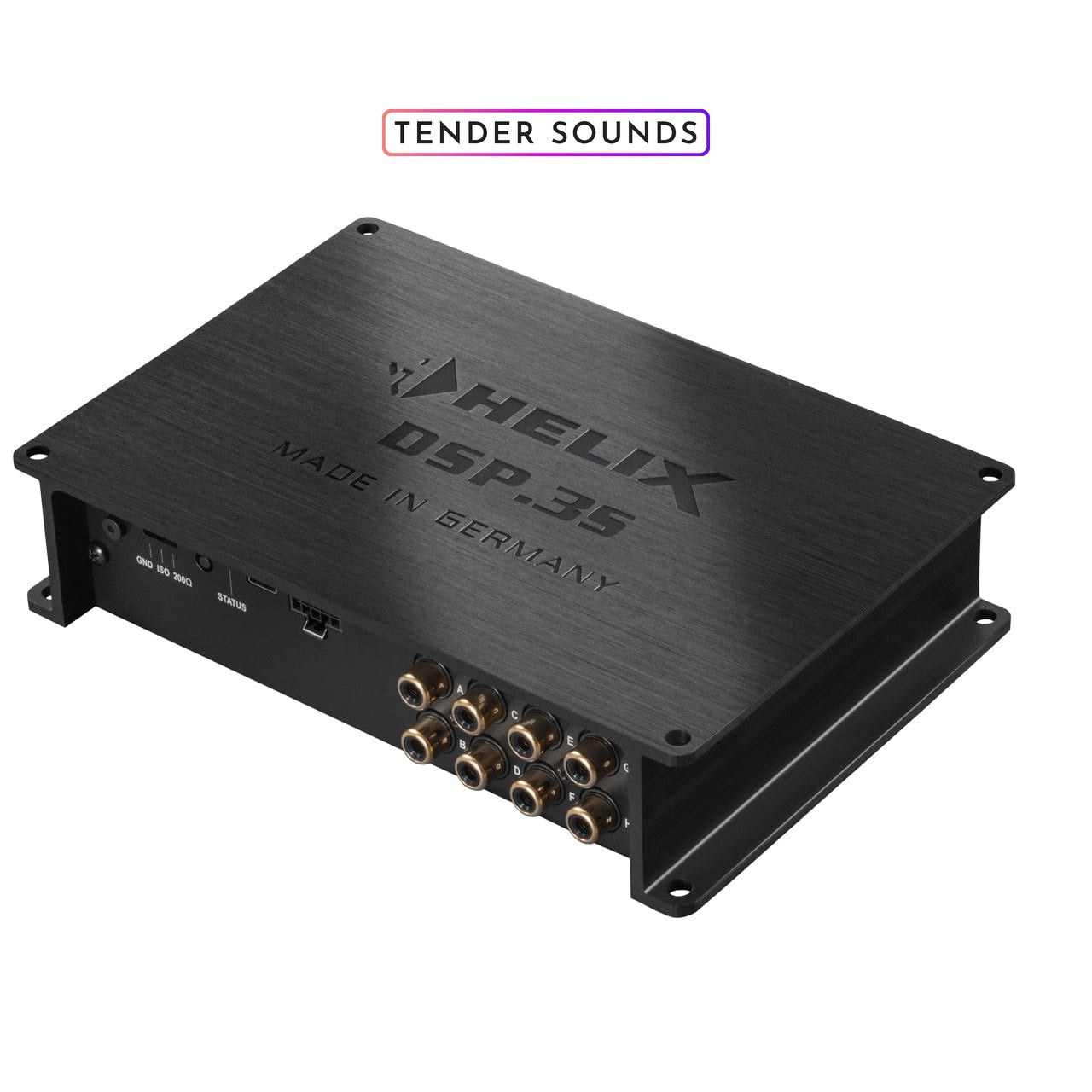

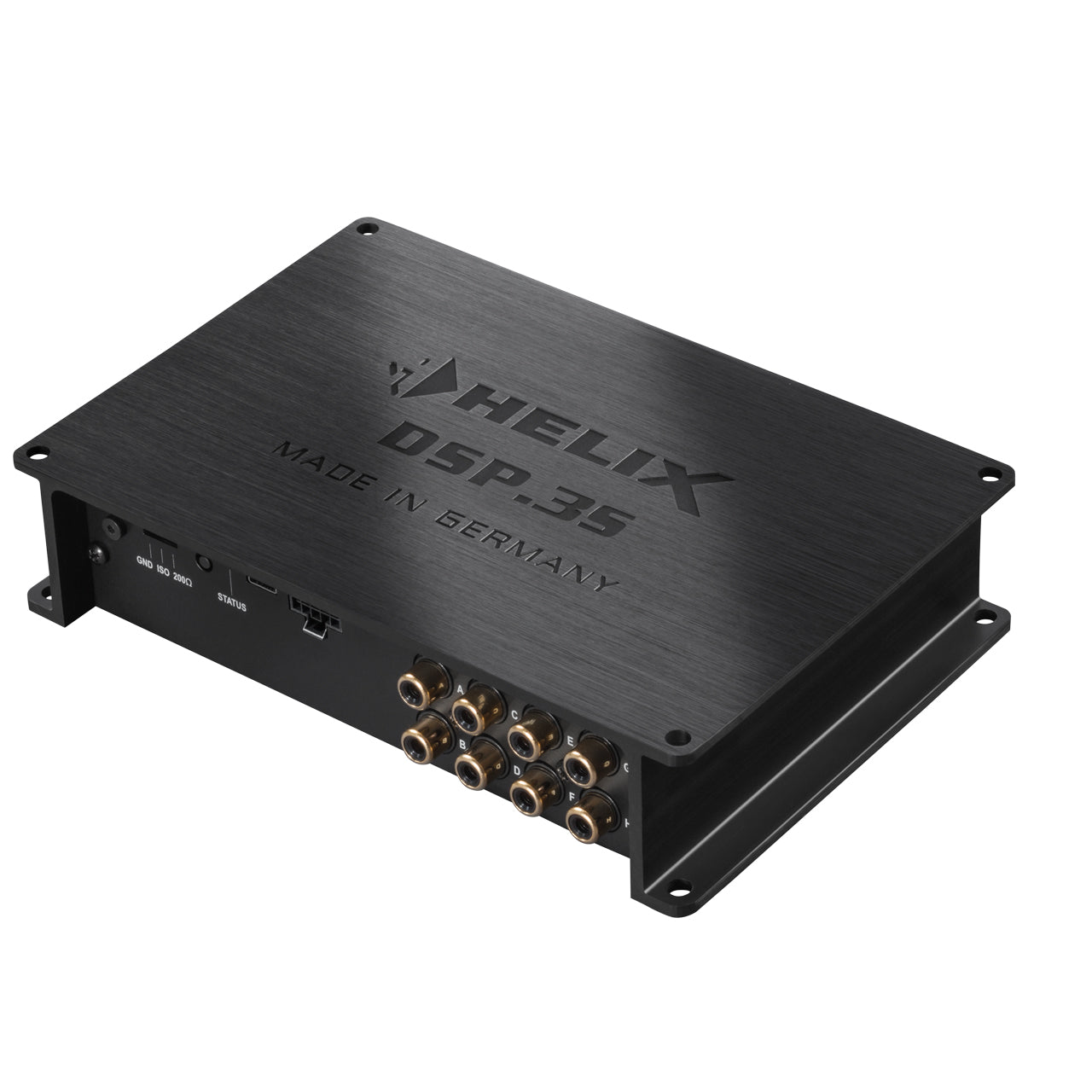

HELIX DSP.3S
Standalone DSP
£489.99
Available to order
Here is the technical data for the audio signal processor: Inputs 6 x RCA / RCA6 x Highlevel speaker input1 x Optical SPDIF (12 - 96 kHz)1 x Coax SPDIF (12 - 192 kHz)1 x Remote In Input Sensitivity RCA / RCA...
At a glance
SKU HP58217
DSP channels8 DSP channels
Sample rate96 kHz; optical input 12-96 kHz; coax input 12-192 kHz
DSP precision64-bit DSP; 24-bit signal path
Dimensions40 x 177 x 120 mm (H x W x D)
Technical overview
DSP platform and product features
Signal-to-noise ratio112 dB digital input; 107 dB analog input (A-weighted)
DSP channels8 DSP channels
Sample rate96 kHz; optical input 12-96 kHz; coax input 12-192 kHz
DSP precision64-bit DSP; 24-bit signal path
System roleExternal amplifier required
Overview & features
Here is the technical data for the audio signal processor:
| Inputs | 6 x RCA / RCA 6 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Coax SPDIF (12 - 192 kHz) 1 x Remote In |
| Input Sensitivity | RCA / RCA 2 - 4 Volts Highlevel 5 - 11 Volts |
| Outputs | 8 x RCA / RCA 1 x Remote Out |
| Output Voltage | 6 Volts |
| Frequency Response | 10 Hz - 44,000 Hz |
| DSP Resolution | 64 Bit |
| DSP Power | 295 MHz (1.2 billion MAC operations/second) |
| Sampling Rate | 96 kHz |
| DSP Type | Audio signal processor |
| Signal Converters | A/D: BurrBrown D/A: BurrBrown |
| Signal-to-Noise Ratio Digital Input | 112 dB (A-weighted) |
| Signal-to-Noise Ratio Analog Input | 107 dB (A-weighted) |
| Total Harmonic Distortion (THD+N) Digital Input | < 0.0008 % |
| Total Harmonic Distortion (THD+N) Analog Input | < 0.002 % |
| IM Distortion (IMD) Digital Input | < 0.003 % |
| IM Distortion (IMD) Analog Input | < 0.005 % |
| Crosstalk | > 90 dB |
| Operating Voltage | 9.6 - 17 Volts (max. 5 sec. down to 6 Volts) |
| Power Rating | DC 12 V ? 3 A max. |
| Current Draw | < 450 mA |
| Max. Remote Output Current | 500 mA |
| Additional Features | HEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch |
| Dimensions (H x W x D) | 40 x 177 x 120 mm / 1.58 x 6.97 x 4.72" |
What's included
- 1 x Signal processor DSP.3S
- 1 x Control Input-to-SCP adaptor
- 1 x USB cable
- 1 x Mounting material
- 1 x Instruction manual
Technical overview
- Frequency response
- 10-44,000 Hz
- Signal-to-noise ratio
- 112 dB digital input; 107 dB analog input (A-weighted)
- Total harmonic distortion
- <0.0008% digital input; <0.002% analog input (THD+N)
- DSP channels
- 8 DSP channels
- Sample rate
- 96 kHz; optical input 12-96 kHz; coax input 12-192 kHz
- Bit depth
- 64-bit DSP; 24-bit signal path
Installation
- Dimensions
- 40 x 177 x 120 mm (H x W x D)
Additional specifications
- DSP chip / platform
- BurrBrown A/D and D/A converters; 64-bit DSP, 295 MHz; ACO platform
- Power / voltage
- 9.6-18 V (max. 5 sec. down to 6 V); DC 12 V, 3 A max
- Inputs / outputs
- 6 x RCA/Cinch; 6 x high-level speaker inputs; optical S/PDIF; coax S/PDIF; 8 x RCA/Cinch outputs; remote in/out
- Bluetooth / expansion
- HEC slot for optional Bluetooth audio streaming or other expansion; DSP PC-Tool, Smart Control Port and optional WIFI CONTROL/remote
