HELIX

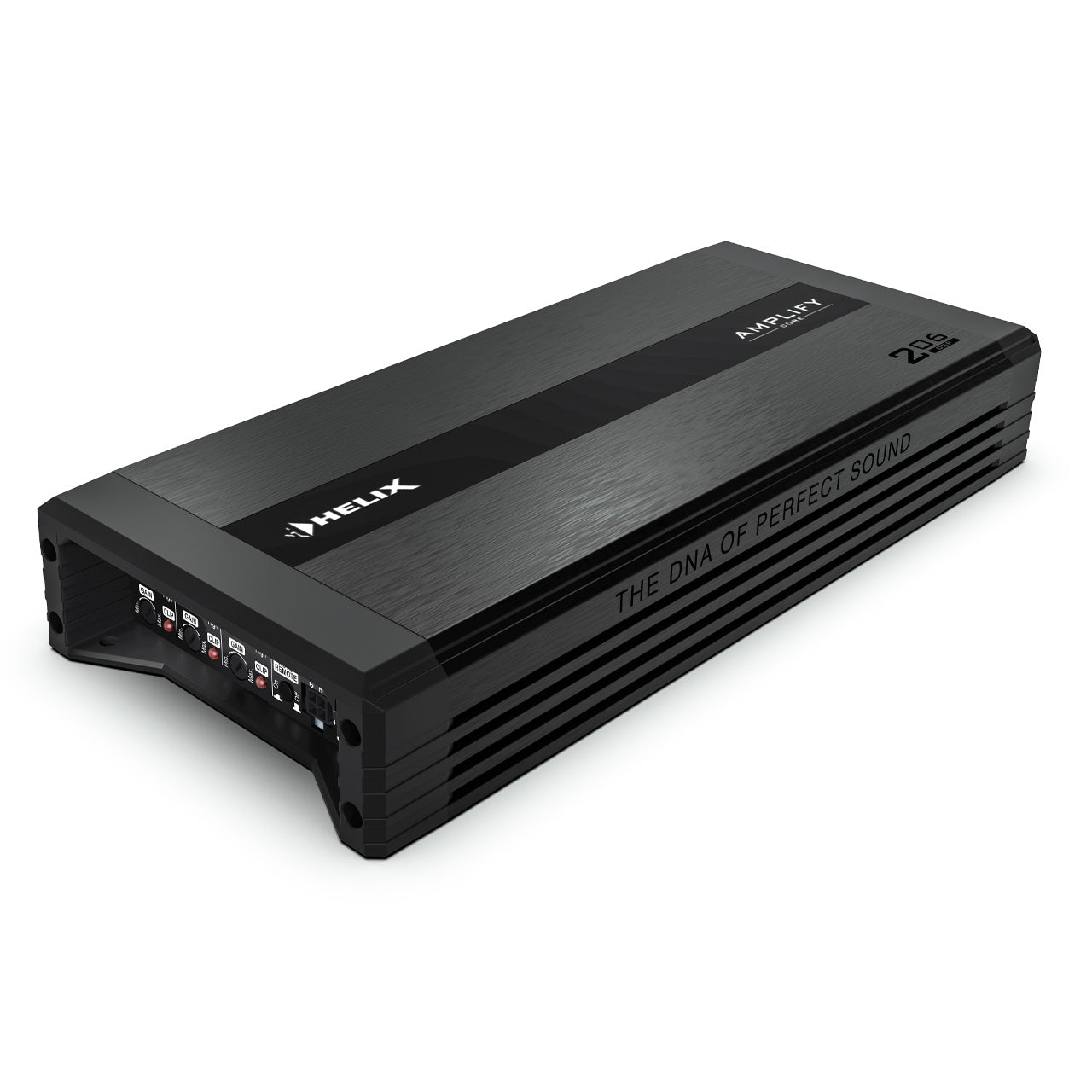

HELIX AMPLIFY 206 DSP
DSP Amplifier
£524.99
Available to order
Very compact 5/6-channel amplifier with 8-channel DSP & ACO platform Why Buy This Product Built-in DSP platform for precise audio tuning Built-in DSP, Class D Verified Helix data prepared for Tender Sounds Clean product media with utility imagery removed Technical Specifications Impedance...
At a glance
SKU AC20630
Amplifier channels100 W RMS x 6 @ 4 Ω; 190 W RMS x 6 @ 2 Ω; 380 W RMS x 3 bridged @ 4 Ω
DSP channels8 DSP channels
Amplifier classClass D; 6-channel amplifier with integrated 8-channel DSP
Dimensions40 x 263 x 114 mm (H x W x D)
Technical overview
DSP platform and product features
Signal-to-noise ratio99 dB analog input at full power; 102 dB digital input at full power (A-weighted)
DSP channels8 DSP channels
Sample rate48 kHz; digital inputs accept 12-96 kHz
DSP precision64-bit DSP; BurrBrown 24-bit A/D and AKM 24-bit D/A
System roleIntegrated amplifier stage
Overview & features
Very compact 5/6-channel amplifier with 8-channel DSP & ACO platform
Why Buy This Product
- Built-in DSP platform for precise audio tuning
- Built-in DSP, Class D
- Verified Helix data prepared for Tender Sounds
- Clean product media with utility imagery removed
Technical Specifications
| Impedance / Stability | 2 Ohm, 4 Ohm |
|---|---|
| Input / Feature Set | Built-in DSP, Class D |
| Brand | Helix |
| Model | 206 DSP |
| SKU | AC20630 |
| Category | DSP Amplifier |
| RRP | GBP 524.99 |
| Dimensions - width | < 300 mm, < 350 mm, < 400 mm, < 450 mm |
| Operating voltage | 12 Volts |
| Dimensions - depth | < 150 mm, < 200 mm, < 250 mm, < 400 mm, < 450 mm |
| Dimensions - height | < 50 mm, < 60 mm |
| Output power @ 4 Ω | > 30 Watt, > 50 Watt, > 70 Watt, > 100 Watt, > 200 Watt |
| Output power @ 2 Ω | > 30 Watt, > 50 Watt, > 70 Watt, > 100 Watt, > 200 Watt |
| DSP resolution | 64 Bit |
| Load stability | 2 Ω, 4 Ω |
| Signal-to-noise ratio | > 80 dB, > 85 dB, > 90 dB, > 95 dB |
| THD | < 0,05 %, < 0,1 %, < 0,2% |
| Advanced features | ACO platform, ADEP highlevel input, Auto remote switch, Integrated DSP, Smart Control Port, Start-Stop capability |
| Order number | AC20630 |
Power & channels
- Amplifier class
- Class D; 6-channel amplifier with integrated 8-channel DSP
- Amplified channels
- 100 W RMS x 6 @ 4 Ω; 190 W RMS x 6 @ 2 Ω; 380 W RMS x 3 bridged @ 4 Ω
Technical overview
- Frequency response
- 20-22,000 Hz
- Signal-to-noise ratio
- 99 dB analog input at full power; 102 dB digital input at full power (A-weighted)
- Total harmonic distortion
- <0.005% THD; <0.02% THD+N @ 1 kHz, 1 W into 4 Ω
- DSP channels
- 8 DSP channels
- Sample rate
- 48 kHz; digital inputs accept 12-96 kHz
- Bit depth
- 64-bit DSP; BurrBrown 24-bit A/D and AKM 24-bit D/A
Installation
- Dimensions
- 40 x 263 x 114 mm (H x W x D)
Additional specifications
- DSP chip / platform
- BurrBrown 24-bit A/D and AKM 24-bit D/A converters; 64-bit DSP, 295 MHz; ACO platform
- Power / voltage
- 10.5-16 V (max. 5 sec. down to 6 V); DC 12 V, 93 A max
- Inputs / outputs
- 6 x RCA/Cinch or 6 x high-level inputs; optical S/PDIF; 6 x speaker outputs; 2 x RCA/Cinch outputs; remote in/out
- Bluetooth / expansion
- Smart Control Port, DSP PC-Tool, ADEP.3 and Auto Remote; optional control accessories
