HELIX

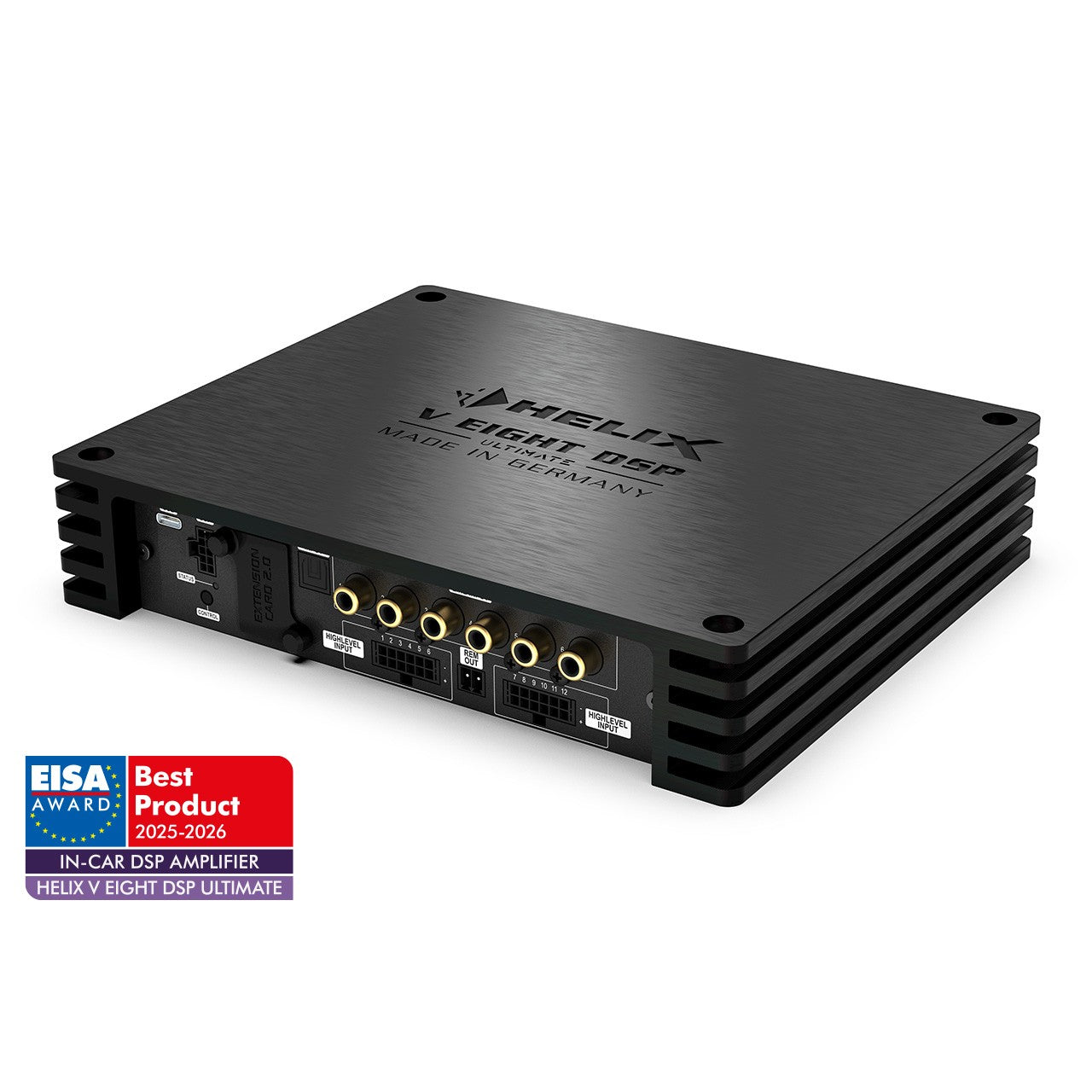

HELIX NEXT V EIGHT DSP ULTIMATE

DSP Amplifier

£1,179.99
Available to order

8-channel amplifier with 14-channel DSP, 12-channel highlevel input, ACO platform & USB PerfectStream Power range: Under 300W Impedance: 2 Ohm, 4 Ohm Official product page | Manual What's included 1 x Amplifier HELIX NEXT V EIGHT DSP ULTIMATE 1 x USB-C cable...

At a glance SKU HA18207
Amplifier channels110 W RMS x 8 @ 4 Ω; 220 W RMS x 4 @ 2 Ω
DSP channels14 DSP output channels
Amplifier classClass HD; 8-channel amplifier with integrated DSP
Dimensions44 x 220 x 180 mm (H x W x D)
Technical overview DSP platform and product features
Signal-to-noise ratio107 dB digital input; 102 dB analog input (A-weighted)
DSP channels14 DSP output channels
Sample rate48 kHz internal; USB PerfectStream supports up to 192 kHz/32-bit; optical input 12-96 kHz
DSP precision64-bit DSP; BurrBrown 24-bit A/D and D/A
System roleIntegrated amplifier stage
Overview & features

8-channel amplifier with 14-channel DSP, 12-channel highlevel input, ACO platform & USB PerfectStream

  • Power range: Under 300W
  • Impedance: 2 Ohm, 4 Ohm

Official product page | Manual

What's included

  • 1 x Amplifier HELIX NEXT V EIGHT DSP ULTIMATE
  • 1 x USB-C cable with USB-A adaptor
  • 2 x Allen key
  • 4 x Connection cable
  • 1 x Mounting material
  • 1 x Instruction manual
Power & channels
Amplifier class
Class HD; 8-channel amplifier with integrated DSP
Amplified channels
110 W RMS x 8 @ 4 Ω; 220 W RMS x 4 @ 2 Ω
Technical overview
Frequency response
15-22,000 Hz
Signal-to-noise ratio
107 dB digital input; 102 dB analog input (A-weighted)
Total harmonic distortion
<0.007% THD; <0.009% THD+N @ 1 kHz, 1 W into 4 Ω
DSP channels
14 DSP output channels
Sample rate
48 kHz internal; USB PerfectStream supports up to 192 kHz/32-bit; optical input 12-96 kHz
Bit depth
64-bit DSP; BurrBrown 24-bit A/D and D/A
Remote control
Smart Control Port for HELIX accessories; optional remote control
Installation
Dimensions
44 x 220 x 180 mm (H x W x D)
Additional specifications
DSP chip / platform
BurrBrown 24-bit A/D and D/A converters; 64-bit DSP, 295 MHz; ACO platform
Power / voltage
10.5-18 V (max. 5 sec. down to 6 V); 110 W RMS x 8 @ 4 Ω; 220 W RMS x 4 @ 2 Ω
Inputs / outputs
6 x RCA/Cinch; 12 x high-level speaker inputs; optical S/PDIF; USB-C audio; 8 x speaker outputs; 6 x RCA/Cinch outputs; 2 x remote outputs
USB PerfectStream
Built-in lossless bidirectional USB audio interface with streaming up to 192 kHz/32-bit, AISA measurement and DSP PC-Tool configuration
Downloads
HELIX NEXT V EIGHT DSP ULTIMATE manual
