HELIX

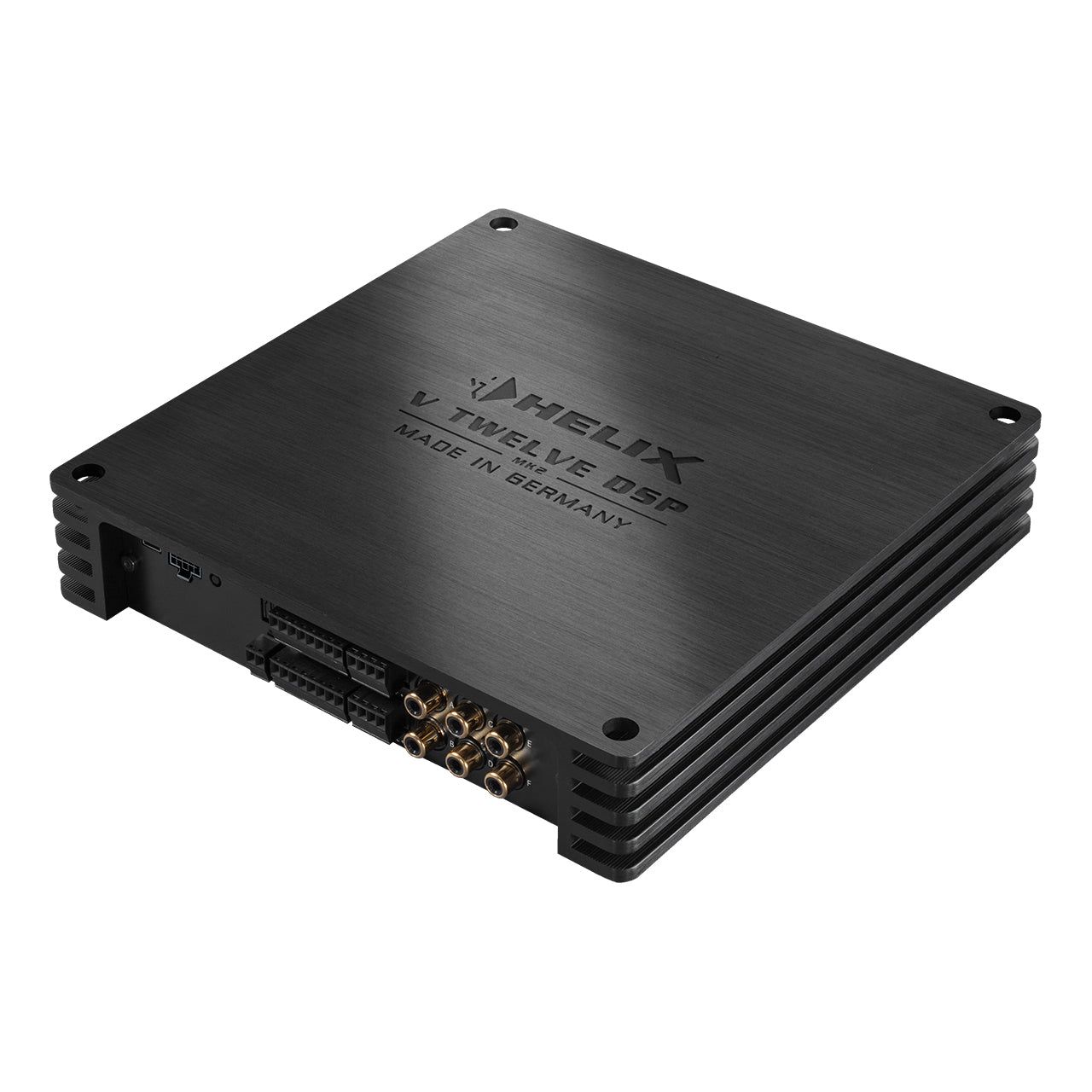

HELIX V TWELVE DSP MK2
DSP Amplifier
£1,299.99
Available to order
12-channel amplifier with 14-channel DSP, 12-channel highlevel input & ACO platform Power range: Under 300W Impedance: 2 Ohm, 4 Ohm Official product page | Manual What's included 1 x Amplifier HELIX V TWELVE DSP MK2 1 x Control Input-to-SCP adaptor 1 x...
At a glance
SKU HA11208
Amplifier channels75 W RMS x 12 @ 4 Ω; 120 W RMS x 6 @ 2 Ω
DSP channels14 DSP channels
Amplifier classPure Class GD; 12-channel amplifier with integrated 14-channel DSP
Dimensions44 x 220 x 220 mm (H x W x D)
Technical overview
DSP platform and product features
Signal-to-noise ratio107 dB digital input; 102 dB analog input (A-weighted)
DSP channels14 DSP channels
Sample rate48 kHz; optical input 12-96 kHz
DSP precision64-bit DSP; BurrBrown 24-bit A/D and D/A
System roleIntegrated amplifier stage
Overview & features
12-channel amplifier with 14-channel DSP, 12-channel highlevel input & ACO platform
- Power range: Under 300W
- Impedance: 2 Ohm, 4 Ohm
Official product page | Manual
What's included
- 1 x Amplifier HELIX V TWELVE DSP MK2
- 1 x Control Input-to-SCP adaptor
- 1 x USB cable
- 2 x Allen key
- 1 x Mounting material
- 1 x Instruction manual
Power & channels
- Amplifier class
- Pure Class GD; 12-channel amplifier with integrated 14-channel DSP
- Amplified channels
- 75 W RMS x 12 @ 4 Ω; 120 W RMS x 6 @ 2 Ω
Technical overview
- Frequency response
- 20-22,000 Hz
- Signal-to-noise ratio
- 107 dB digital input; 102 dB analog input (A-weighted)
- Total harmonic distortion
- <0.015%
- DSP channels
- 14 DSP channels
- Sample rate
- 48 kHz; optical input 12-96 kHz
- Bit depth
- 64-bit DSP; BurrBrown 24-bit A/D and D/A
Installation
- Dimensions
- 44 x 220 x 220 mm (H x W x D)
Additional specifications
- DSP chip / platform
- 2 x BurrBrown 24-bit A/D and D/A converters; 64-bit DSP, 2 x 295 MHz; ACO platform
- Power / voltage
- 10.5-18 V (max. 5 sec. down to 6 V); DC 12 V, 80 A max
- Inputs / outputs
- 6 x RCA/Cinch; 12 x high-level speaker inputs; optical S/PDIF; 12 x speaker outputs; 2 x RCA/Cinch outputs; remote in/out
- Bluetooth / expansion
- HEC slot for optional Bluetooth audio streaming or other expansion; DSP PC-Tool, Smart Control Port and optional remote/WIFI CONTROL
