Match

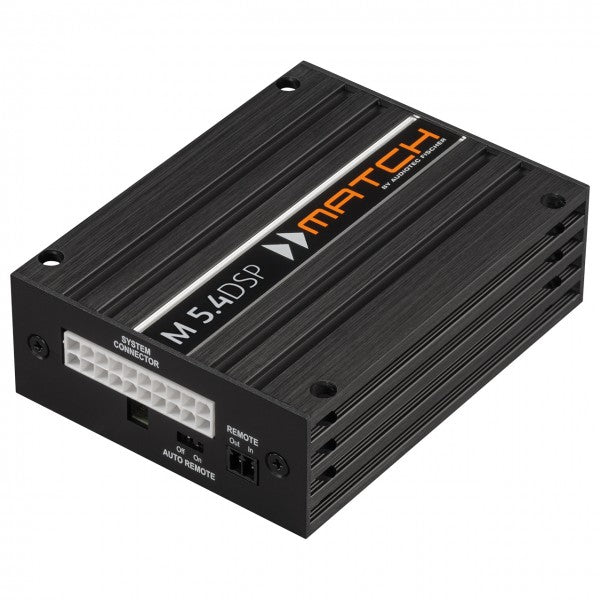

MATCH M 5.4DSP

DSP Amplifier

£599.99

Available to order

5-channel micro amplifier with integrated 9-channel DSPchannel micro amplifier with integrated 9-channel DSP 5 Model: M 5.4DSP Audiotec Fischer code: M115004 EAN: 4057204612184 Not sure if it fits your car? Send the vehicle details or current audio system by WhatsApp or email...

At a glance SKU M115004

Amplifier channels60 W RMS x 4 @ 4 Ω; 90 W RMS x 1 @ 4 Ω; 160 W RMS x 1 @ 2 Ω

DSP channels9 DSP channels

Amplifier class5-channel miniature amplifier with integrated 9-channel DSP

Dimensions35 x 85 x 110 mm (H x W x D)

Technical overview DSP platform and product features

Signal-to-noise ratio>105 dB digital input; >99 dB analog input (A-weighted)

DSP channels9 DSP channels

Sample rate48 kHz; optical input 12-96 kHz

DSP precision64-bit DSP; BurrBrown converters

System roleIntegrated amplifier stage

Overview & features

5-channel micro amplifier with integrated 9-channel DSP

channel micro amplifier with integrated 9-channel DSP 5

Model: M 5.4DSP
Audiotec Fischer code: M115004
EAN: 4057204612184

Not sure if it fits your car? Send the vehicle details or current audio system by WhatsApp or email before ordering.

Official MATCH by Audiotec Fischer product source used for product data and imagery.

Power & channels

Amplifier class: 5-channel miniature amplifier with integrated 9-channel DSP
Amplified channels: 60 W RMS x 4 @ 4 Ω; 90 W RMS x 1 @ 4 Ω; 160 W RMS x 1 @ 2 Ω

Technical overview

Frequency response: 20-20,000 Hz
Signal-to-noise ratio: >105 dB digital input; >99 dB analog input (A-weighted)
Total harmonic distortion: <0.03%
DSP channels: 9 DSP channels
Sample rate: 48 kHz; optical input 12-96 kHz
Bit depth: 64-bit DSP; BurrBrown converters

Installation

Dimensions: 35 x 85 x 110 mm (H x W x D)

Additional specifications

DSP chip / platform: BurrBrown A/D and D/A converters; 64-bit DSP, 295 MHz; ACO platform
Power / voltage: 10.5-17 V (max. 5 sec. down to 6 V); DC 12 V, 40 A max
Inputs / outputs: 4 x high-level speaker inputs; optical S/PDIF; 5 x speaker outputs; 4 x RCA/Cinch outputs; remote out
Bluetooth / expansion: DSP PC-Tool; optional DIRECTOR, CONDUCTOR or WIFI CONTROL remote/control accessories; Auto Remote

Downloads

MATCH M 5.4DSP manual MATCH M 5.4DSP manual
