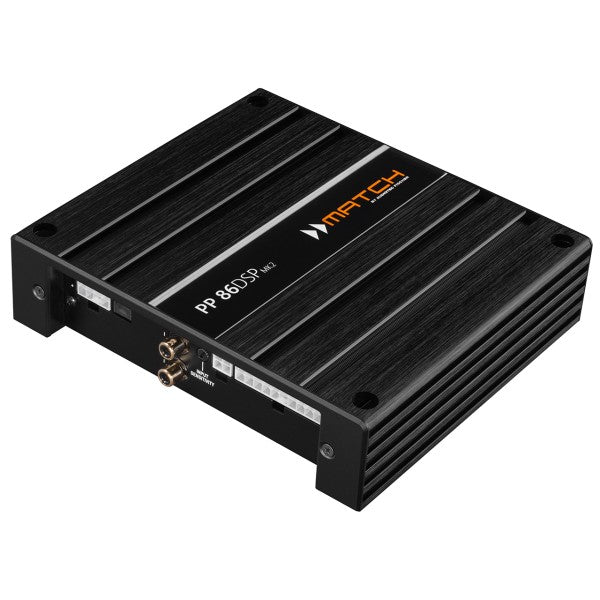

MATCH PP 86DSP MK2

DSP Amplifier

£749.99
Available to order

8-channel Class HD Plug & Play amplifier with integrated 9 channel 64 Bit DSP and 2 Ohms stability for universal applicationsPlug & Play amplifier with integrated 9-channel 64 Bit DSP Model: PP 86DSP MK2 Audiotec Fischer code: M118003 EAN: 4057204612672 Not sure...

At a glance SKU M118003
Amplifier channels55 W RMS x 8 @ 4 Ω; 70 W RMS x 8 @ 2 Ω
DSP channels9 DSP channels
Amplifier classClass HD; 8-channel amplifier with integrated 9-channel DSP
Dimensions44 x 185 x 164 mm (H x W x D)
Technical overview DSP platform and product features
Signal-to-noise ratio105 dB digital input; 103 dB analog input (A-weighted)
DSP channels9 DSP channels
Sample rate48 kHz; optical S/PDIF accepts 12-96 kHz
DSP precision64-bit DSP; BurrBrown converters
System roleIntegrated amplifier stage
Overview & features

8-channel Class HD Plug & Play amplifier with integrated 9 channel 64 Bit DSP and 2 Ohms stability for universal applications

Plug & Play amplifier with integrated 9-channel 64 Bit DSP

  • Model: PP 86DSP MK2
  • Audiotec Fischer code: M118003
  • EAN: 4057204612672

Not sure if it fits your car? Send the vehicle details or current audio system by WhatsApp or email before ordering.

Official MATCH by Audiotec Fischer product source used for product data and imagery.

What's included

  • 1 x Amplifier MATCH PP 86DSP MK2
  • 3 x Connection cable
  • 1 x USB cable
  • 1 x Mounting material
  • 1 x Instruction manual
Power & channels
Amplifier class
Class HD; 8-channel amplifier with integrated 9-channel DSP
Amplified channels
55 W RMS x 8 @ 4 Ω; 70 W RMS x 8 @ 2 Ω
Technical overview
Frequency response
20-22,000 Hz
Signal-to-noise ratio
105 dB digital input; 103 dB analog input (A-weighted)
Total harmonic distortion
<0.015%
DSP channels
9 DSP channels
Sample rate
48 kHz; optical S/PDIF accepts 12-96 kHz
Bit depth
64-bit DSP; BurrBrown converters
Installation
Dimensions
44 x 185 x 164 mm (H x W x D)
Additional specifications
DSP chip / platform
BurrBrown A/D and D/A converters; 64-bit DSP, 295 MHz; ACO platform
Power / voltage
10.5-18 V (max. 5 sec. down to 6 V); DC 12 V, 40 A max
Inputs / outputs
6 x high-level speaker inputs; optical S/PDIF; 8 x speaker outputs; 2 x mono RCA outputs; remote in/out
Bluetooth / expansion

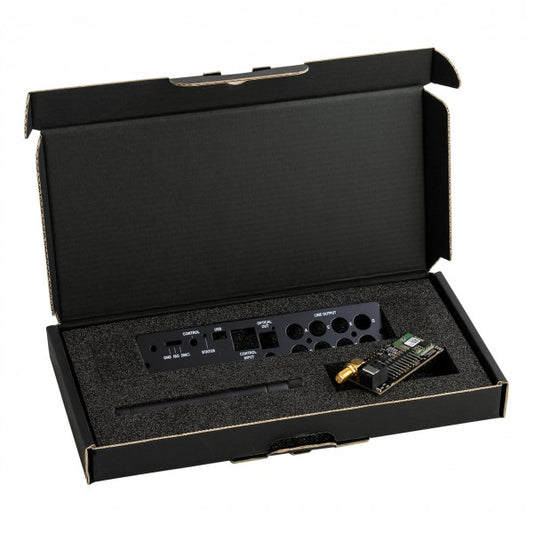

MEC slot for optional Bluetooth/other expansion; USB, Smart Control Port, DSP PC-Tool and optional remote control
Downloads
MATCH PP 86DSP MK2 manual MATCH PP 86DSP MK2 manual
