Match

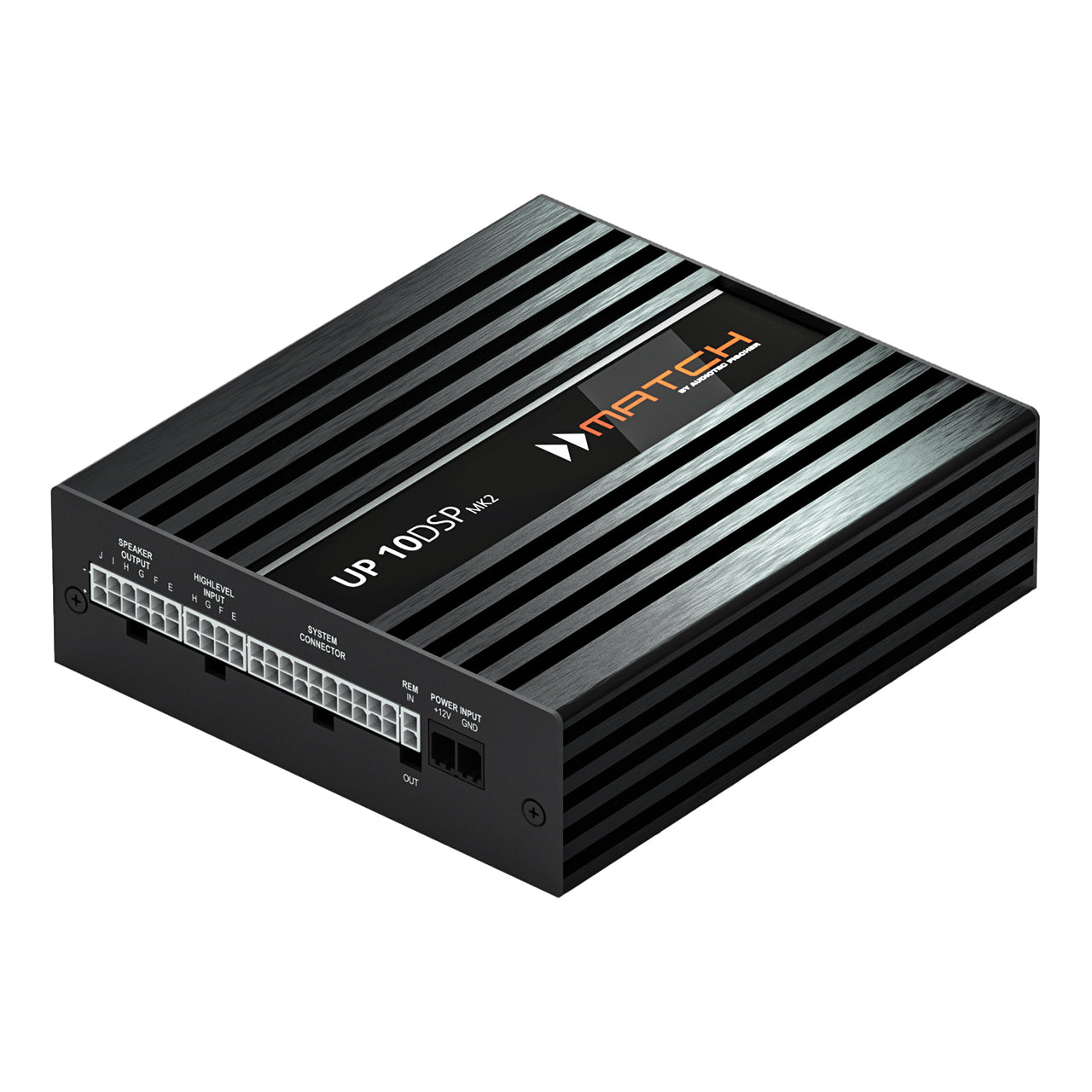

MATCH UP 10DSP MK2

DSP Amplifier

£919.99
Available to order

10-channel Class GD upgrade amplifier with integrated 11-channel 64 Bit DSP for universal applications Channels: 1 Channel Impedance: 2 Ohm, 4 Ohm Official product page | Manual Model search aliases: UP10, UP10DSP, UP 10 DSP. What's included 1 x MATCH UPGRADE amplifier...

At a glance SKU M111006
Amplifier channels65 W RMS x 8 @ 4 Ω; 75 W RMS x 2 @ 4 Ω; 125 W RMS x 2 @ 2 Ω
DSP channels11 DSP channels
Amplifier classClass GD; 10-channel upgrade amplifier with integrated 11-channel DSP
Dimensions46 x 145 x 163 mm (H x W x D)
Technical overview DSP platform and product features
Signal-to-noise ratio105 dB digital input; 103 dB analog input (A-weighted)
DSP channels11 DSP channels
Sample rate48 kHz; optical input 12-96 kHz
DSP precision64-bit DSP; BurrBrown converters
System roleIntegrated amplifier stage
Overview & features

10-channel Class GD upgrade amplifier with integrated 11-channel 64 Bit DSP for universal applications

  • Channels: 1 Channel
  • Impedance: 2 Ohm, 4 Ohm

Official product page | Manual

Model search aliases: UP10, UP10DSP, UP 10 DSP.

What's included

  • 1 x MATCH UPGRADE amplifier UP 10DSP MK2
  • 2 x Connection cable
  • 1 x Power Input connector
  • 1 x Mounting plates & material
  • 1 x USB cable
  • 1 x Instruction manual
Power & channels
Amplifier class
Class GD; 10-channel upgrade amplifier with integrated 11-channel DSP
Amplified channels
65 W RMS x 8 @ 4 Ω; 75 W RMS x 2 @ 4 Ω; 125 W RMS x 2 @ 2 Ω
Technical overview
Frequency response
15-22,000 Hz
Signal-to-noise ratio
105 dB digital input; 103 dB analog input (A-weighted)
Total harmonic distortion
<0.015% THD; <0.02% THD+N @ 1 kHz, 1 W into 4 Ω
DSP channels
11 DSP channels
Sample rate
48 kHz; optical input 12-96 kHz
Bit depth
64-bit DSP; BurrBrown converters
Installation
Dimensions
46 x 145 x 163 mm (H x W x D)
Additional specifications
DSP chip / platform
BurrBrown A/D and D/A converters; 64-bit DSP, 295 MHz; ACO platform
Power / voltage
10.5-18 V (max. 5 sec. down to 6 V); DC 12 V, 60 A max
Inputs / outputs
8 x high-level speaker inputs; optical S/PDIF; Extension Card 2.0; 10 x speaker outputs; RCA/Cinch output; remote out
Bluetooth / expansion
Extension Card 2.0 slot for optional expansion; USB-C, Smart Control Port, DSP PC-Tool and Auto Remote
Downloads
MATCH UP 10DSP MK2 manual MATCH UP 10DSP MK2 manual
