Match

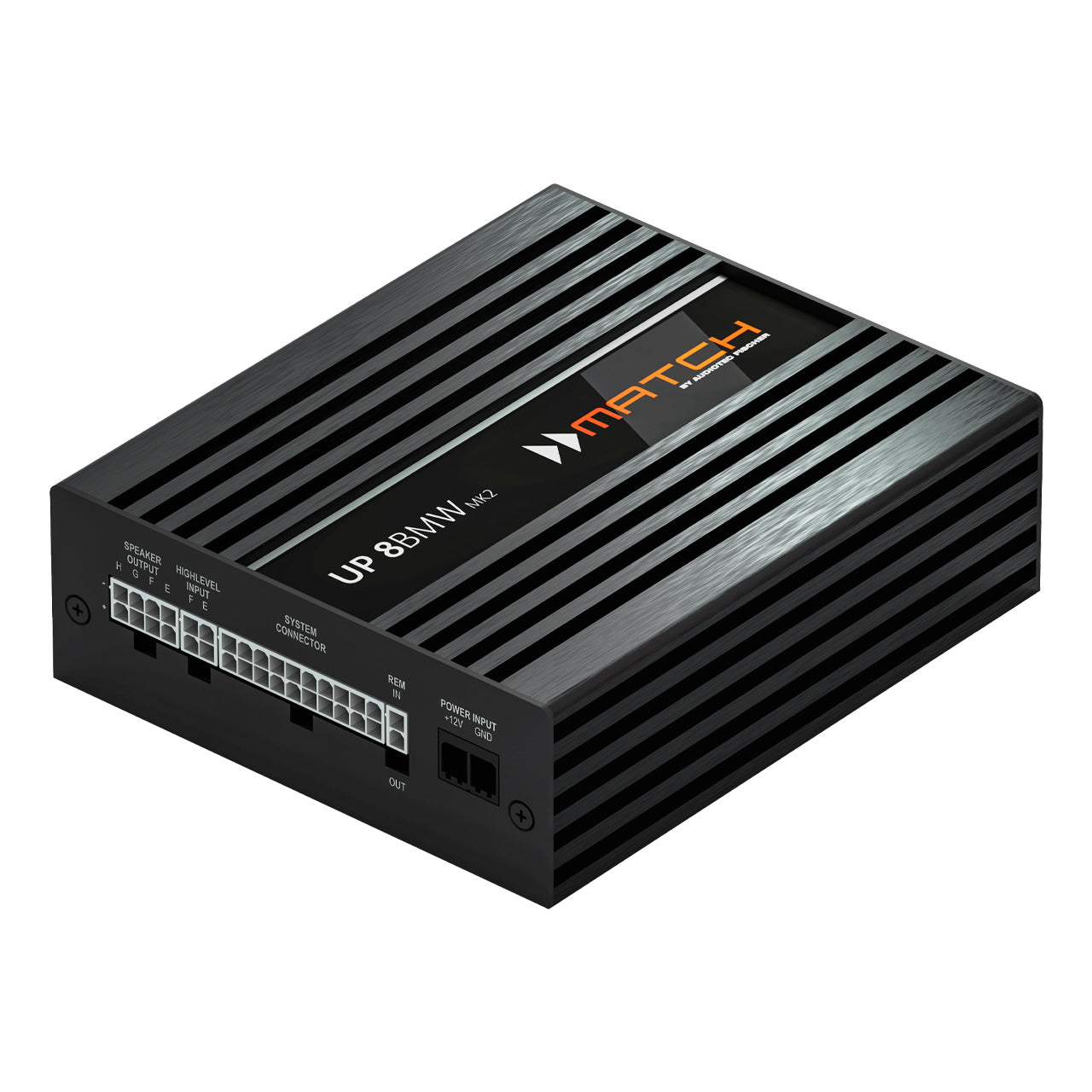

MATCH UP 8BMW MK2

DSP Amplifier

£744.99
Available to order

8-channel Plug & Play upgrade amplifier with integrated 9-channel DSP for BMW HiFi sound systems (for BMW E & F models) Channels: 1 Channel Impedance: 2 Ohm, 4 Ohm Official product page | Manual What's included 1 x MATCH UPGRADE Verstärker UP...

At a glance SKU M118007
Amplifier channels65 W RMS x 6 @ 4 Ω; 75 W RMS x 2 @ 4 Ω; 125 W RMS x 2 @ 2 Ω
DSP channels11 DSP channels
Amplifier classClass GD; 10-channel BMW upgrade amplifier with integrated 11-channel DSP
Dimensions46 x 130 x 153 mm (H x W x D)
Technical overview DSP platform and product features
Signal-to-noise ratio104 dB digital input (A-weighted)
DSP channels11 DSP channels
Sample rate48 kHz
DSP precision64-bit DSP; BurrBrown converters
System roleIntegrated amplifier stage
Overview & features

8-channel Plug & Play upgrade amplifier with integrated 9-channel DSP for BMW HiFi sound systems (for BMW E & F models)

  • Channels: 1 Channel
  • Impedance: 2 Ohm, 4 Ohm

Official product page | Manual

What's included

  • 1 x MATCH UPGRADE Verstärker UP 8BMW MK2
  • 1 x BMW HiFi Plug & Play-Anschlusskabel
  • 1 x BMW-spezifisches Montageblech & -material
  • 1 x Power Input-Stecker
  • 1 x USB-Kabel
  • 1 x Bedienungsanleitung
Power & channels
Amplifier class
Class GD; 10-channel BMW upgrade amplifier with integrated 11-channel DSP
Amplified channels
65 W RMS x 6 @ 4 Ω; 75 W RMS x 2 @ 4 Ω; 125 W RMS x 2 @ 2 Ω
Technical overview
Frequency response
15-22,000 Hz
Signal-to-noise ratio
104 dB digital input (A-weighted)
Total harmonic distortion
<0.015% THD; <0.02% THD+N @ 1 kHz, 1 W into 4 Ω
DSP channels
11 DSP channels
Sample rate
48 kHz
Bit depth
64-bit DSP; BurrBrown converters
Installation
Dimensions
46 x 130 x 153 mm (H x W x D)
Additional specifications
DSP chip / platform
BurrBrown A/D and D/A converters; 64-bit DSP, 295 MHz; ACO platform
Power / voltage
10.5-18 V (max. 5 sec. down to 6 V); DC 12 V, 40 A max
Inputs / outputs
6 x high-level speaker inputs; Extension Card 2.0; 8 x speaker outputs; RCA/Cinch output; remote out
Bluetooth / expansion

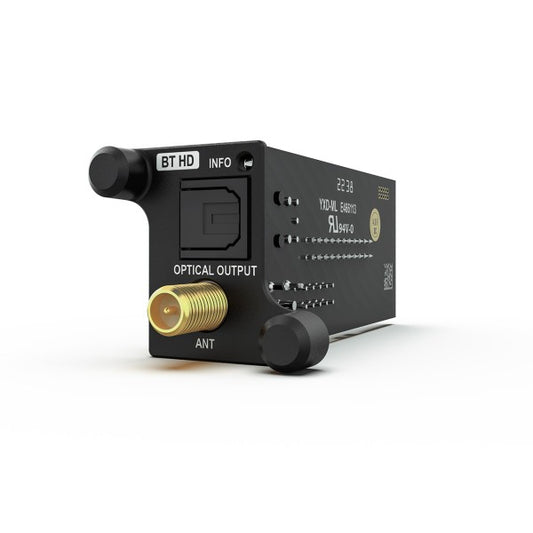

Extension Card 2.0 slot for optional expansion; USB-C, Smart Control Port, DSP PC-Tool and Auto Remote
Downloads
MATCH UP 8BMW MK2 manual MATCH UP 8BMW MK2 manual
