HELIX

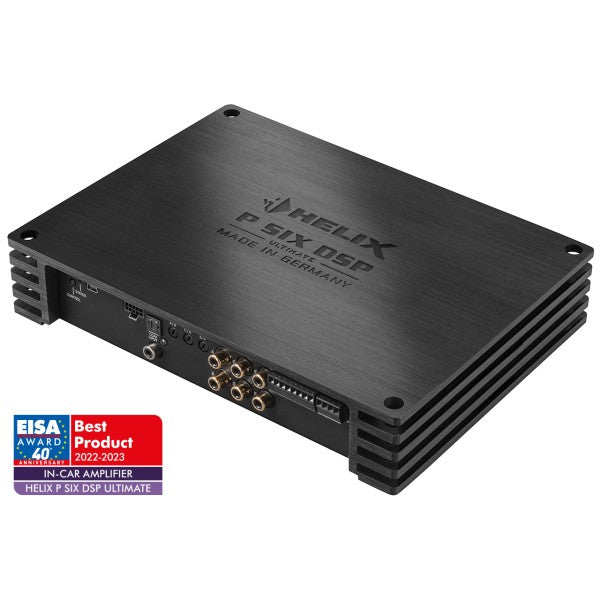

HELIX P SIX DSP ULTIMATE
DSP Amplifier
£1,299.99
Available to order
6-channel High-Res amplifier with integrated 12-channel DSP, 6-channel highlevel input & ACO platform Why Buy This Product Built-in DSP platform for precise audio tuning Built-in DSP, Bluetooth Integration, Class D, Class AB Verified Helix by Audiotec Fischer data prepared for Tender Sounds...
At a glance
SKU P816003
Amplifier channels120 W RMS x 6 @ 4 Ω; 230 W RMS x 4 @ 2 Ω
DSP channels12 DSP channels
Amplifier classUltra HD Class D; 6-channel High-Res amplifier with integrated DSP
Dimensions50 x 260 x 190 mm (H x W x D)
Technical overview
DSP platform and product features
Signal-to-noise ratio108 dB digital input; 102 dB analog input (A-weighted)
DSP channels12 DSP channels
Sample rate96 kHz; optical input 12-96 kHz; coax input 12-192 kHz
DSP precision64-bit DSP; BurrBrown converters
System roleIntegrated amplifier stage
Overview & features
6-channel High-Res amplifier with integrated 12-channel DSP, 6-channel highlevel input & ACO platform
Why Buy This Product
- Built-in DSP platform for precise audio tuning
- Built-in DSP, Bluetooth Integration, Class D, Class AB
- Verified Helix by Audiotec Fischer data prepared for Tender Sounds
- Clean product media with utility imagery removed
Technical Specifications
| Impedance / Stability | 2 Ohm, 4 Ohm |
|---|---|
| Input / Feature Set | Built-in DSP, Bluetooth Integration, Class D, Class AB |
| Brand | Helix by Audiotec Fischer |
| Model | P816003 |
| SKU | P816003 |
| Category | DSP Amplifier |
| RRP | GBP 1299.99 |
| Dimensions - width | < 300 mm, < 350 mm, < 400 mm, < 450 mm |
| Operating voltage | 12 Volts, 24 Volts |
| Dimensions - depth | < 200 mm, < 250 mm, < 300 mm, < 350 mm, < 400 mm, < 450 mm |
| Dimensions - height | < 60 mm |
| Output power @ 4 Ω | > 30 Watt, > 50 Watt, > 70 Watt, > 100 Watt |
| Output power @ 2 Ω | > 30 Watt, > 50 Watt, > 70 Watt, > 100 Watt, > 200 Watt |
| DSP resolution | 64 Bit |
| Load stability | 2 Ω, 4 Ω |
| Signal-to-noise ratio | > 80 dB, > 85 dB, > 90 dB, > 95 dB, > 100 dB, > 105 dB |
| THD | < 0,01 %, < 0,05 %, < 0,1 %, < 0,2% |
| Advanced features | ACO platform, ADEP highlevel input, Auto remote switch, HEC slot, High-Res audio, Integrated DSP, Regulated power supply, Smart Control Port, Start-Stop capability, TwinDSP Power |
| Order number | P816003 |
Power & channels
- Amplifier class
- Ultra HD Class D; 6-channel High-Res amplifier with integrated DSP
- Amplified channels
- 120 W RMS x 6 @ 4 Ω; 230 W RMS x 4 @ 2 Ω
Technical overview
- Frequency response
- 10-44,000 Hz
- Signal-to-noise ratio
- 108 dB digital input; 102 dB analog input (A-weighted)
- Total harmonic distortion
- <0.004%
- DSP channels
- 12 DSP channels
- Sample rate
- 96 kHz; optical input 12-96 kHz; coax input 12-192 kHz
- Bit depth
- 64-bit DSP; BurrBrown converters
Installation
- Dimensions
- 50 x 260 x 190 mm (H x W x D)
Additional specifications
- DSP chip / platform
- 2 x BurrBrown A/D and D/A converters; 64-bit DSP, 2 x 295 MHz; ACO platform
- Power / voltage
- 10.5-32 V (max. 5 sec. down to 6 V); DC 12/24 V, 65 A max
- Inputs / outputs
- 6 x RCA/Cinch; 6 x high-level speaker inputs; optical S/PDIF; coax S/PDIF; 6 x speaker outputs; 4 x RCA/Cinch outputs; optical S/PDIF output; remote in/out
- Bluetooth / expansion
- HEC slot for optional Bluetooth audio streaming or other expansion; DSP PC-Tool, Smart Control Port and optional remote control
